Product Description:

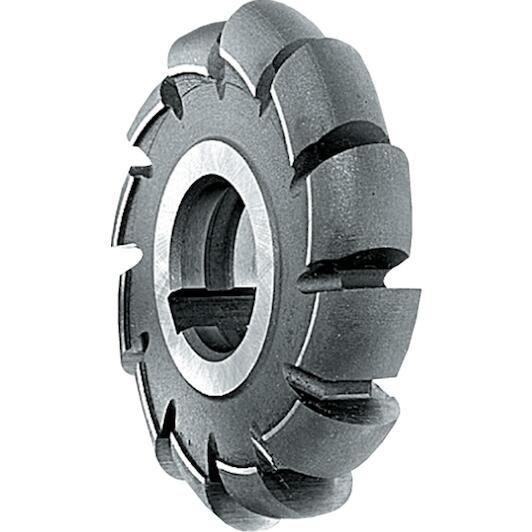

- Phantom HSS-E Convex Milling Cutter DIN 856
- DIN 856, for cutting concave grooves
Supplier number:
PHANTOM 383000150
|
EAN
8716563380764
155.67
tax incl.
€128.65 excl. VAT (incl. all environmental contributions)
Product information
Key features according to our expert
- Diameter: 50 mm
- Bore size: 16 mm
- Shape (side and face cutter): Convex
- Height: 3 mm
All Features
- Diameter
- 50 mm
- Bore size
- 16 mm
- Shape (side and face cutter)
- Convex
- Height
- 3 mm
- Bore ø (d2)
- 16 mm
- Number of flutes (z)
- 16
- Diameter ø (d1)
- 50 mm
- Tolerance d2 (tol. d2)
- H7
- Coolant feed
- No
- Tolerance b1 (tol. b1)
- s10
- Tolerance d1 (tol. d1)
- js16
- Radius (r)
- 1,5 mm
- Surface
- Bright
- Thickness (b1)
- 3 mm
- Shank type
- Bore
- Standard
- DIN 856
- Tool material
- HSS-E
- Brand PHANTOM
- EAN 8716563380764
- Supplier number PHANTOM 383000150
