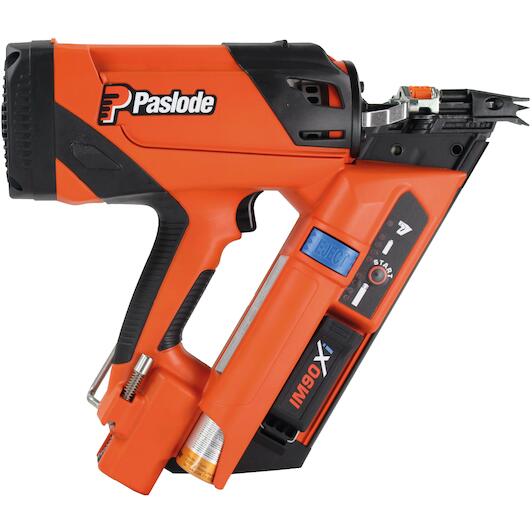

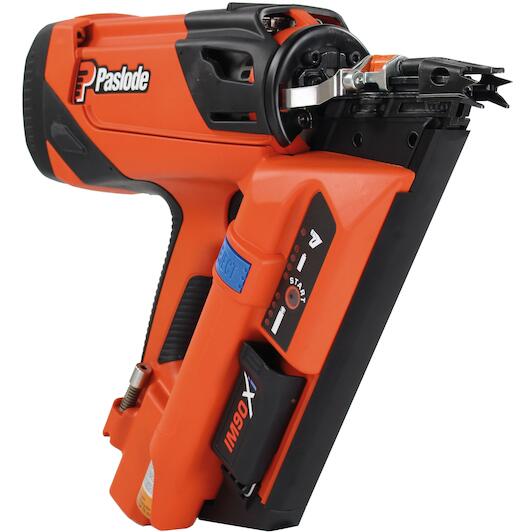

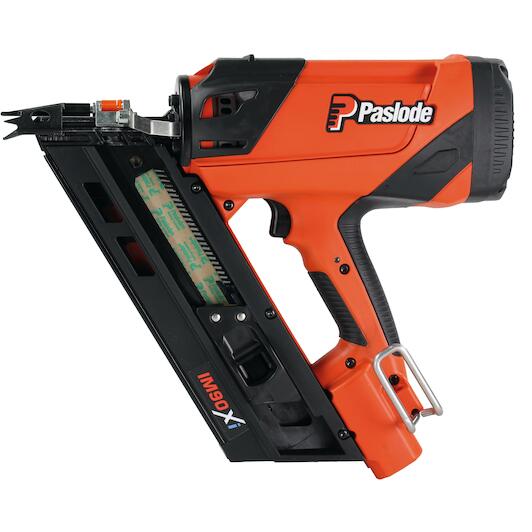

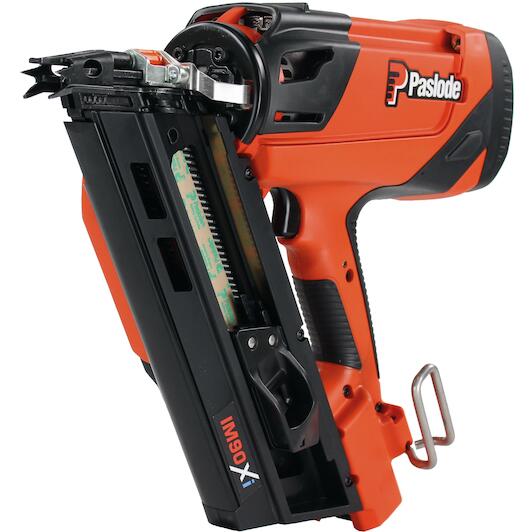

PASLODE IM90Xi Premium cordless gas-powered nailer for 34° paper bonded strip nails 50-90mm in case - 019710

PASLODE
Supplier number: PASLODE 019710 | EAN 3439510197103
1 review(s)
788.99 tax incl.
€652.06 excl. VAT (incl. all environmental contributions)
On stock - immediately available

✆ Talk to a specialist

Reliable framing with the Paslode IM90XI

Practical benefits
  • Cordless freedom on site: Powered by gas and a 7,2V battery, you work efficiently without hoses, cords, or compressors.
  • Strong framing nail performance: You drive paper collated strip nails from 50 to 90 mm directly into tough timber joints.
  • Balanced lightweight tool design: Weighing only 3,6 kg with a 47 nail magazine, you handle long roofing tasks with ease.

In a nutshell

The right choise for

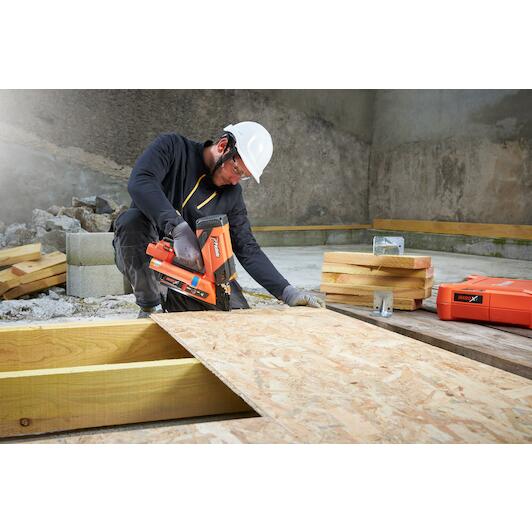

With the Paslode IM90XI strip framing nailer, you work completely free of air hoses and compressors on timber framing, roofing trusses, and cladding projects. This cordless gas nailer drives 34° paper-collated strip nails with lengths from 50 to 90 mm and shank diameters of 2,5 to 3,1 mm directly into tough timber joints. Featuring a balanced 3,6 kg build, a 47 nail magazine capacity, and reliable performance in temperatures from -15°C to +49°C, you move comfortably and safely around job sites and scaffolding. The tool comes in a carry case with one 7,2V lithium-ion battery (2,1 Ah), a charger, and a hex key.



Product information Accessories FAQ Reviews
€788.99
In stock - tax incl.

Product information

Key features according to our expert

  • Battery voltage: 7,2 V
  • Nail thickness: 2,5 - 3,1 mm
  • Number of batteries included: 1
  • UN number: UN3481
  • Weight: 3,6 kg
  • Type of system case: Not applicable
  • Magazine angle: 34 °
  • Supplied in: Case
  • Max. nail thickness: 3,1 mm
  • Min. nail thickness: 2,5 mm
  • Magzine capacity: 47 ea
  • Max. nail length: 90 mm
  • Min. nail length: 50 mm
  • Capacity (battery): 2,1 Ah

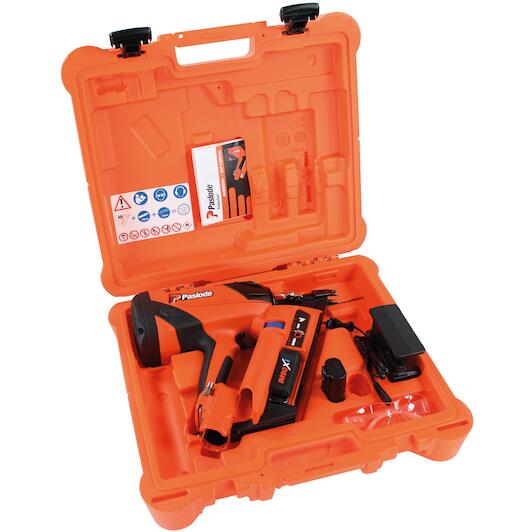

Scope of delivery

  • Strip nailing machine IM90XI
  • Case
  • Lithium battery
  • Lithium battery charger
  • Allen spanner
  • Manual
  • Parts drawing
  • Safety instructions
  • CE declaration of conformity

Product description

  • Premium cordless gas-powered nailer for 34° paper bonded strip nails from 50 to 90 mm
  • The most reliable, comfortable and high-performance cordless strip nailer for multi applications
  • Low charging: up to 5 roofs with one battery charge
  • Highly ergonomic, less tiring: lift up to 3000kg less per roof thanks to lightweight and balanced device
  • Multi-purpose device: extensive range of accessories and nails
  • No workplace downtime: more than 30 years of reliable and proven technology
  • For any weather: working temperature from -15°C to +49°C
  • Always charged: Quick indication of remaining gas and battery charge
  • Perfect and consistent finish: easy depth adjustment
  • Right- and left-handed: adjustable belt hook

Applications

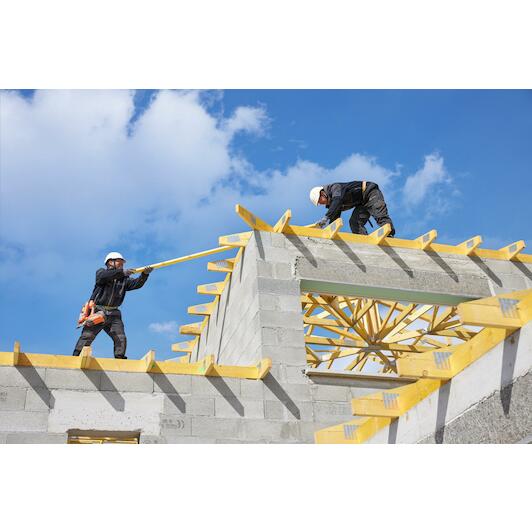

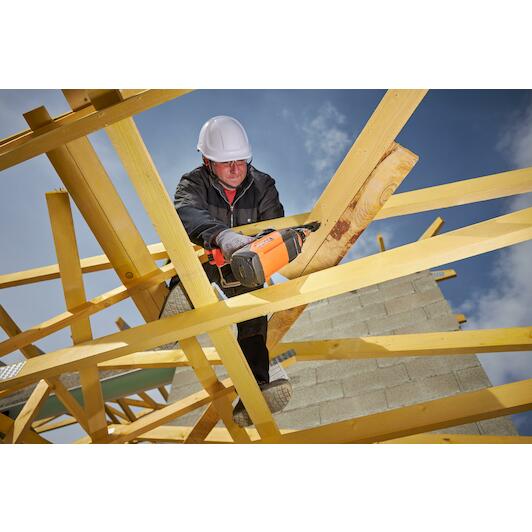

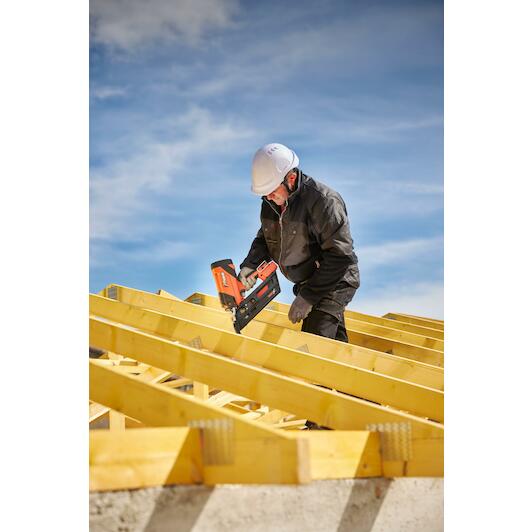

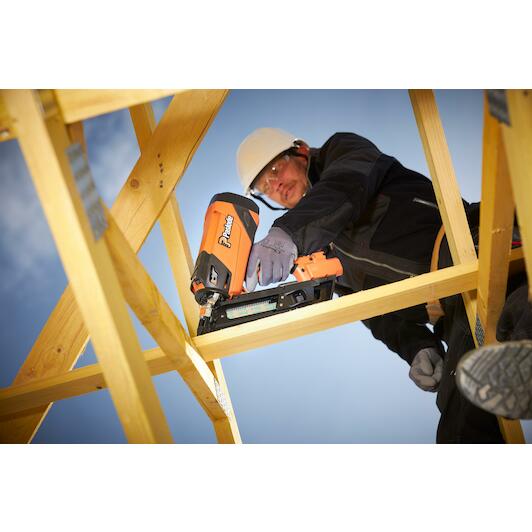

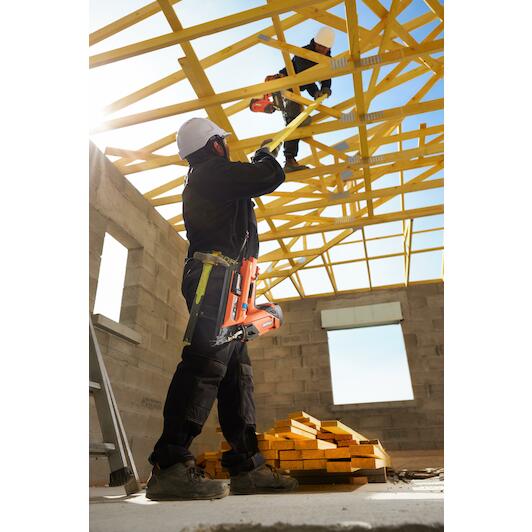

  • Roof trusses
  • Assembly with cross members

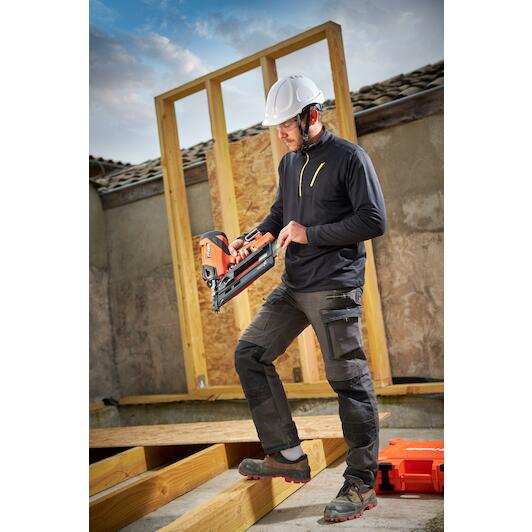

  • Timber frame

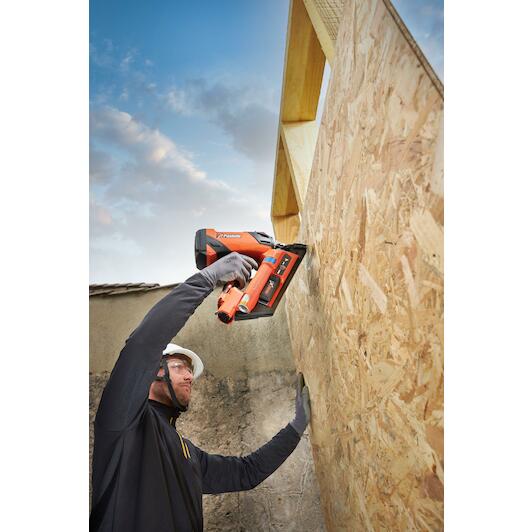

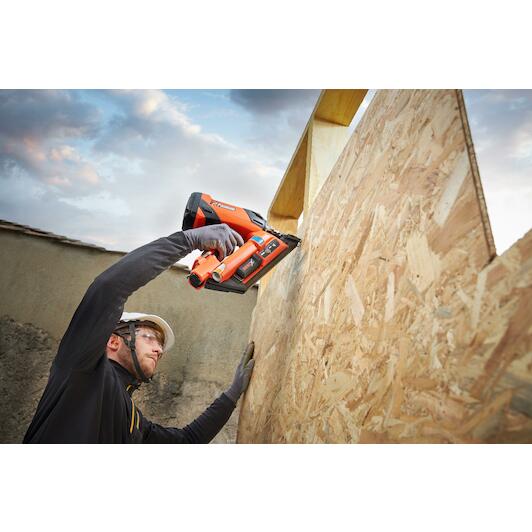

  • Façade cladding
  • Transoms
  • Roof panels
  • Flat roofing
  • Cladding
  • Floor slabs
  • Panel walls
  • Shuttering
  • Terraces
  • Packaging
  • Walls

All Features

Battery voltage
7,2 V
Nail thickness
2,5 - 3,1 mm
Number of batteries included
1
Un number
UN3481
Weight
3,6 kg
Type of system case
Not applicable
Magazine angle
34 °
Supplied in
Case
Max. nail thickness
3,1 mm
Min. nail thickness
2,5 mm
Magzine capacity
47 ea
Max. nail length
90 mm
Min. nail length
50 mm
Capacity (battery)
2,1 Ah
Tightening force
6.0 kg
Battery weight
0.125 kg
Warehouse capacity
47 nail
Battery energy (w/h)
16 W/h
Maximum cycles per day
4000 nail
Type of fastening
Paslode strip nails
Number of batteries
1 pcs
Energy
Gas
Anchor diameter range
2.5 - 3.1 mm
Number of degrees of nail connection
34 °
Nail length (mm)
50-90
Sound level (en 12549) lwa
108 dB(A)
Maximum operating temperature
49 °C
Noise level (en 12549) lpa
95.0 dB(A)
Minimal processing temperature chemical product
-15 °C
Battery capacity
2.1 Ah
Vibration (en iso 8662-11) hav
3.9 m/s²
Maximum cycles per hour
1000 nail
Charging time
90 Min.
Impact
105 J
Operation
fully sequential
Number of attachments per battery
13000 shots
Sound level (en 12549) lpc
135 dB(C)
Operating temperature
-15°C...+49 °C
Maximum cycles per second
2-3 nail
Base material
Wood
Power
Thumbwheel
Number of fixings per gas cartridge
1250 (-5°C) shots
Battery technology
Lithium
Health and safety
Eye protection, Gloves, Hearing protection, Helmet

Accessories

Frequently asked questions about this product

Answered by specialists
Which nails are compatible with the IM90Xi framing nailer?
It uses 34° paper-collated strip nails with lengths from 50 to 90 mm and shank diameters from 2,5 to 3,1 mm.
What is the magazine capacity of this nailer?
The magazine holds up to 47 nails.
Which battery is included with the Paslode IM90Xi?
It includes 1 lithium-ion 7,2V battery with a capacity of 2,1 Ah, along with a charger.
In what temperature range can this gas nailer operate?
The Paslode IM90Xi operates reliably in working temperatures from -15°C to +49°C.
What is included in the case?
You receive the IM90Xi nailer, a carry case, 1 lithium battery (7,2V 2,1 Ah), a charger, a hex key, and user manuals.
