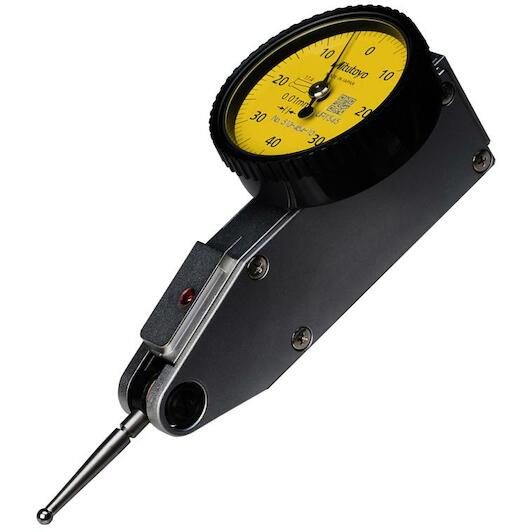

MITUTOYO 513-464-10E swivelling probe horizontal model - 0.8mm, 0.01mm

Name: MITUTOYO 513-464-10E swivelling probe horizontal model - 0.8mm, 0.01mm
Brand: MITUTOYO
SKU: 02804356
Price: 164.95 EUR
Availability: PreOrder

Supplier number: MITUTOYO 513-464-10E | EAN 4946368675770

164.95 tax incl.

€136.32 excl. VAT (incl. all environmental contributions)

On order: delivered from 08/10/2026

Ordered before 20:00 - delivered as of 08/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Accurate alignment with Mitutoyo

Practical benefits

Fine measuring increments: With 0.01mm graduations, you detect minute surface variations quickly and read dimensions with high confidence.
Automatic measuring reversal: The internal clutchless mechanism reverses direction automatically so you inspect recessed workpiece areas without manual adjustments.
Reliable workshop durability: A scratch-resistant crystal face and sealed bezel protect the delicate movement from shop dust and fluids.

In a nutshell

The right choise for

Align workpieces and inspect runout with high precision using the Mitutoyo TI-413EX 513-464-10E horizontal dial test indicator. Featuring a 0.8 mm measuring range with 0.01 mm graduations, it gives you immediate clarity on minute dimensional variations across the balanced 0-40-0 dial. The internal clutchless mechanism automatically reverses measuring direction, allowing you to check confined recesses and stepped profiles without manual adjustment. You can quickly mount it using the dovetail slots and the included 8 mm clamping stem. An O-ring seal and scratch-resistant crystal face keep dust and fluids out for dependable daily use in the workshop.

Product information FAQ

€164.95

tax incl.

Key features according to our expert

Min. measuring value: 0,8 mm
Max. measuring value: 0,8 mm
Scale: 0-40-0 mm

Product description:

Drastically enhanced durability, sensitivity and visibility.
Glare-free flat crystal face allows easy reading of graduations.
Preventing dust and oil from penetrating to the dial face. The O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
Multi-layer coatings on the Crystal.
Hard and non-glare coatings on the crystal inhibit scratches, contamination and glare on the surface.
Jewelled bearings and precision gears and pinions give you smooth, accurate movement and quick response.

All Features

Min. measuring value: 0,8 mm
Max. measuring value: 0,8 mm
Scale: 0-40-0 mm

Brand MITUTOYO
02804356
EAN 4946368675770
Supplier number MITUTOYO 513-464-10E

Frequently asked questions about this product

Answered by specialists

What is the measuring range of this dial test indicator?: This indicator has a measuring range of 0.8mm with 0.01mm graduations and a 0-40-0 dial reading.
How do you mount this dial test indicator?: You can mount it using the dovetail mounts and the included 8mm clamping stem on a magnetic stand or holder.
Is this indicator protected against dust and fluids?: Yes, the O-ring seal and one-piece bezel design protect the dial face from dust, water, and oil penetration.
Does the measuring direction reverse automatically?: Yes, the internal mechanism provides automatic reversal of the measuring direction without a clutch lever.
