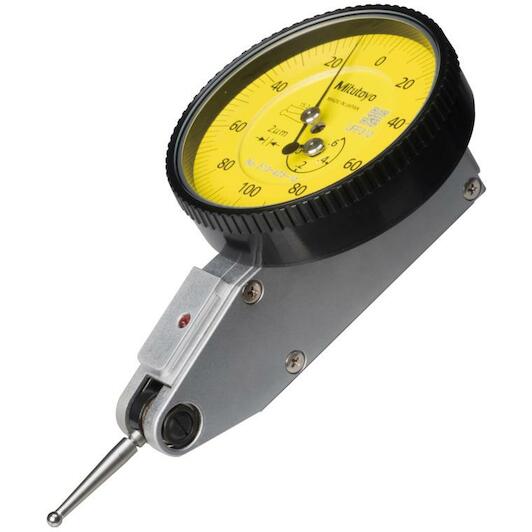

MITUTOYO 513-425-10E swivelling probe horizontal model - 0.6mm, 0.002mm

Name: MITUTOYO 513-425-10E swivelling probe horizontal model - 0.6mm, 0.002mm
Brand: MITUTOYO
SKU: 02804312
Price: 184.95 EUR
Availability: PreOrder

Supplier number: MITUTOYO 513-425-10E | EAN 4946368676296

184.95 tax incl.

€152.85 excl. VAT (incl. all environmental contributions)

On order: delivered from 08/10/2026

Ordered before 20:00 - delivered as of 08/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Precise alignment with the 513-425-10E dial indicator

Practical benefits

Highly accurate measurements: With a 0.002 mm graduation, you detect fine surface variations and runout on machined components with utmost confidence.

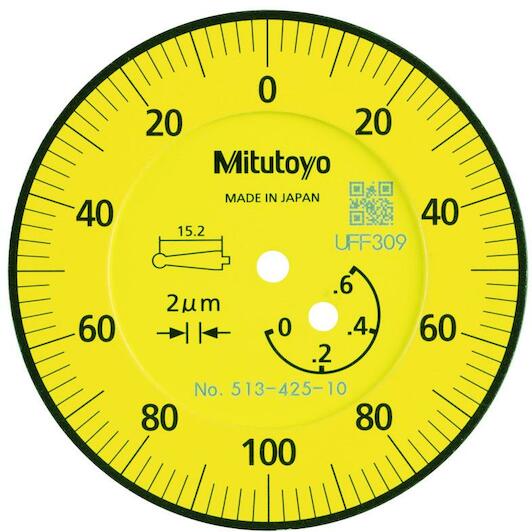

Clear and glare-free reading: The anti-reflective crystal face and 0-100-0 dial ensure you read measured values instantly without optical distortion.
Resilient workshop performance: An integrated sealing structure and scratch-resistant coating shield the delicate movement against dust and cutting fluids.

In a nutshell

The right choise for

With the Mitutoyo 513-425-10E dial test indicator, you achieve precise workpiece alignment on milling machines and lathes. Featuring a fine 0.002 mm graduation and a 0.6 mm measuring range, it effortlessly detects runout and subtle form variations inside narrow slots or recesses. The clutchless mechanism automatically reverses the measuring direction on contact, while the glare-free 0-100-0 dial ensures instant, accurate readings. Easily attach the indicator to your stand via the dovetail mounts using the included 8 mm stem. Its integrated O-ring seal delivers dependable protection against dust and cutting fluids in challenging workshop environments.

Product information FAQ

€184.95

tax incl.

Key features according to our expert

Min. measuring value: 0,6 mm
Max. measuring value: 0,6 mm
Scale: 0,002 mm

Product description:

Drastically enhanced durability, sensitivity and visibility.
Glare-free flat crystal face allows easy reading of graduations.
Preventing dust and oil from penetrating to the dial face. The O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
Multi-layer coatings on the Crystal.
Hard, antifouling and non-glare coatings on the crystal inhibit scratches, contamination and glare on the surface.
Jewelled bearings and precision gears and pinions give you smooth, accurate movement and quick response.

All Features

Min. measuring value: 0,6 mm
Max. measuring value: 0,6 mm
Scale: 0,002 mm

Brand MITUTOYO
02804312
EAN 4946368676296
Supplier number MITUTOYO 513-425-10E

Frequently asked questions about this product

Answered by specialists

What is the measuring range and graduation of this dial test indicator?: It offers a measuring range of 0.6 mm with a 0.002 mm graduation and a 0-100-0 dial reading.
How do you mount the Mitutoyo 513-425-10E onto a magnetic stand?: You mount it via the dovetail mounts using the included 8 mm stem onto a suitable measuring stand.
Does the measuring direction reverse automatically?: Yes, the clutchless mechanism automatically reverses measuring direction without manual switching.
What is a horizontal dial test indicator typically used for?: It is ideal for precise alignment and measuring inside recesses, narrow slots, or bores where standard indicators do not fit.
Is the dial protected against dust and cutting fluids?: Yes, the one-piece bezel design with an O-ring prevents dust and oil from penetrating the dial face.
