What is the measuring range and graduation of this dial test indicator?

This Mitutoyo indicator features a 0.2 mm range with 0.002 mm graduations and a 0-100-0 dial reading.

Does the measuring direction reverse automatically?

Yes, the clutch-free mechanism enables automatic reversal of measuring direction.

What mounting stem size is included in the basic set?

The basic set comes with dovetail mount attachments and an 8 mm diameter stem.

Is the dial face protected against glare and scratches?

Yes, the flat glare-free crystal has a scratch-resistant coating and an O-ring seal against dust and water.

What material is the contact point tip made of?

The 2 mm diameter contact point tip is made of durable carbide.

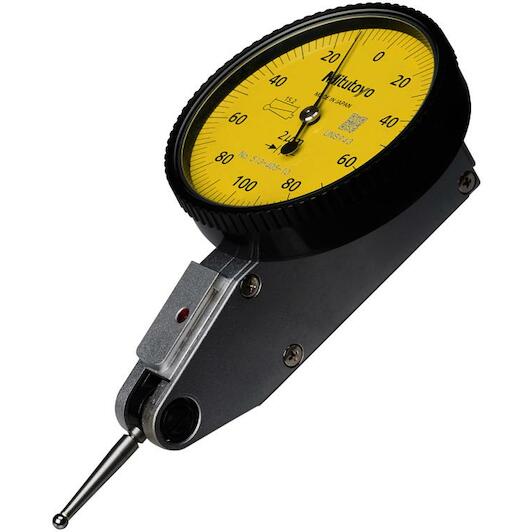

MITUTOYO 513-405-10E swivelling probe horizontal model - 0.2mm, 0.002mm

Name: MITUTOYO 513-405-10E swivelling probe horizontal model - 0.2mm, 0.002mm
Brand: MITUTOYO
SKU: 02804285
Price: 131.89 EUR
Availability: PreOrder

Supplier number: MITUTOYO 513-405-10E | EAN 4946368676104

131.89 tax incl.

€109.00 excl. VAT (incl. all environmental contributions)

On order: delivered from 12/10/2026

Ordered before 20:00 - delivered as of 12/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Extreme precision with the Mitutoyo test indicator

Practical benefits

Precise measurements in tight spaces: With a 0.002MM graduation, you easily detect the smallest dimensional variations and align your workpieces with exceptional accuracy.
Smooth automatic direction reversal: The clutchless mechanism reverses measuring direction automatically, helping you work continuously without manual adjustments.
Durable and glare-free design: Jeweled bearings and a scratch-resistant, anti-glare crystal provide you with long-lasting reliability in challenging workshop environments.

In a nutshell

The right choise for

With the Mitutoyo 513-405-10E dial test indicator, you align workpieces with high precision and detect minute dimensional deviations down to 0.002 mm graduations. Its 0.2 mm measuring range and balanced 0-100-0 dial make it easy to inspect runout on milling machines and lathes. The clutchless mechanism automatically reverses the measuring direction, allowing you to work smoothly without manual adjustments. Built with jeweled bearings and a glare-free, scratch-resistant mineral crystal with an O-ring seal, it stands up to demanding workshop environments. Supplied with dovetail mounts, an 8 mm mounting stem, and a durable 2 mm carbide contact point, it enables dependable measurements in narrow and confined spaces.

Product information FAQ

€131.89

tax incl.

Product description:

Drastically enhanced durability, sensitivity and visibility.
Glare-free flat crystal face allows easy reading of graduations.
Preventing dust and oil from penetrating to the dial face. The O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
Multi-layer coatings on the Crystal.
Hard, antifouling and non-glare coatings on the crystal inhibit scratches, contamination and glare on the surface.
Jewelled bearings and precision gears and pinions give you smooth, accurate movement and quick response.

Brand MITUTOYO
02804285
EAN 4946368676104
Supplier number MITUTOYO 513-405-10E

Frequently asked questions about this product

Answered by specialists

What is the measuring range and graduation of this dial test indicator?: This Mitutoyo indicator features a 0.2 mm range with 0.002 mm graduations and a 0-100-0 dial reading.
Does the measuring direction reverse automatically?: Yes, the clutch-free mechanism enables automatic reversal of measuring direction.
What mounting stem size is included in the basic set?: The basic set comes with dovetail mount attachments and an 8 mm diameter stem.
Is the dial face protected against glare and scratches?: Yes, the flat glare-free crystal has a scratch-resistant coating and an O-ring seal against dust and water.
What material is the contact point tip made of?: The 2 mm diameter contact point tip is made of durable carbide.
