What are the measuring range and resolution of this micrometer?

This digital outside micrometer has a measuring range of 0 to 25 mm and a resolution of 0.001 mm.

Does the 293-821-30 model have a data output?

No, this economy model does not include an SPC data output for transferring data to a computer.

How does this tool ensure a constant measuring force?

The integrated ratchet stop ensures a consistent measuring force for precise and repeatable results.

What material is used for the measuring faces?

The measuring faces are carbide-tipped to provide high wear resistance and long-lasting accuracy.

Does the digital screen shut off automatically?

Yes, the instrument turns off automatically after inactivity to preserve battery life.

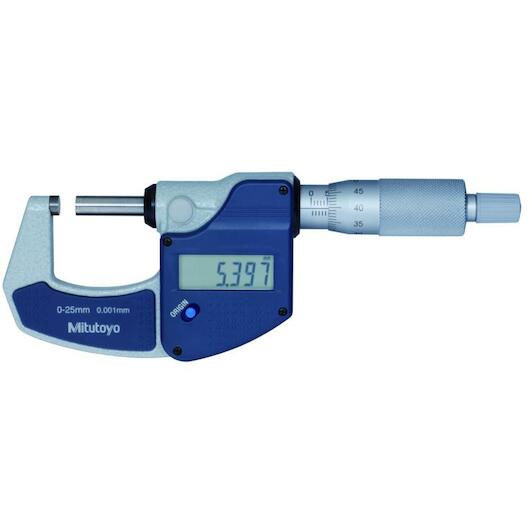

MITUTOYO 293-821-30 Digimatic micrometer gauge - 0-25 mm, without data output

Name: MITUTOYO 293-821-30 Digimatic micrometer gauge - 0-25 mm, without data output
Brand: MITUTOYO
SKU: 02646724
Price: 169.69 EUR
Availability: PreOrder

Supplier number: MITUTOYO 293-821-30 | EAN 4946368673158

Recommended Retail Price €192.94

169.69 tax incl.

€140.24 excl. VAT (incl. all environmental contributions)

On order: delivered from 09/10/2026

Ordered before 20:00 - delivered as of 09/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Accurate outside measurements with Mitutoyo

Practical benefits

High digital resolution: You measure external workpiece dimensions reliably with a fine resolution of 0.001 mm.
Constant measuring force: The integrated ratchet stop applies uniform pressure on every part to ensure repeatable and consistent results.
Clear LCD screen: The digital display presents measured values instantly, allowing you to perform fast and error-free inspections.

In a nutshell

The right choise for

With the Mitutoyo 293-821-30 digital outside micrometer, you measure external workpiece dimensions quickly and reliably. Covering a 0 to 25 mm measuring range with a fine 0.001 mm resolution, it eliminates parallax and vernier reading errors via its direct lcd screen. The integrated ratchet stop applies a constant measuring force to ensure consistent, repeatable results across every inspection cycle. Built with durable carbide-tipped measuring faces, this tool resists wear during demanding metalworking and quality assurance tasks. An automatic power-off feature preserves battery life when the instrument is not in use.

Product information FAQ

€169.69

tax incl.

Key features according to our expert

Micrometer type: Outside micrometer
Min. measuring value: 0 mm
Max. measuring value: 25 mm
Reading: 0,001 mm mm

Product description:

This standard model Digimatic Micrometer is an affordable device that offers the following benefits:
- Cost-effective with simplified functionality for standard applications.
- Without data output.
- It is available with a ratchet stop or friction thimble for a constant measuring force.

All Features

Micrometer type: Outside micrometer
Min. measuring value: 0 mm
Max. measuring value: 25 mm
Reading: 0,001 mm mm

Brand MITUTOYO
02646724
EAN 4946368673158
Supplier number MITUTOYO 293-821-30

Frequently asked questions about this product

Answered by specialists

What are the measuring range and resolution of this micrometer?: This digital outside micrometer has a measuring range of 0 to 25 mm and a resolution of 0.001 mm.
Does the 293-821-30 model have a data output?: No, this economy model does not include an SPC data output for transferring data to a computer.
How does this tool ensure a constant measuring force?: The integrated ratchet stop ensures a consistent measuring force for precise and repeatable results.
What material is used for the measuring faces?: The measuring faces are carbide-tipped to provide high wear resistance and long-lasting accuracy.
Does the digital screen shut off automatically?: Yes, the instrument turns off automatically after inactivity to preserve battery life.
