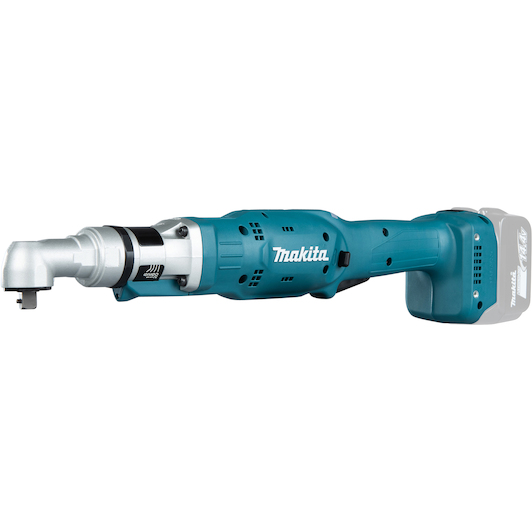

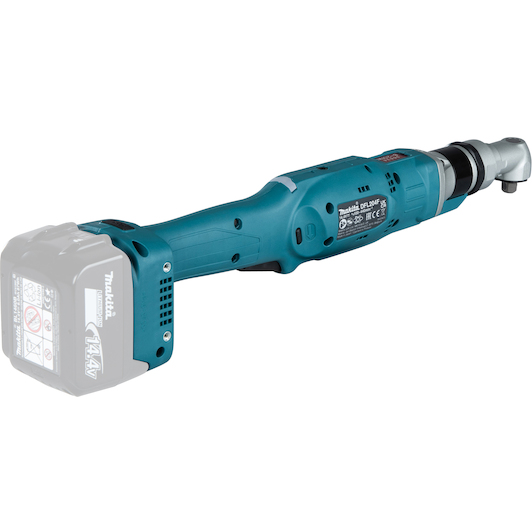

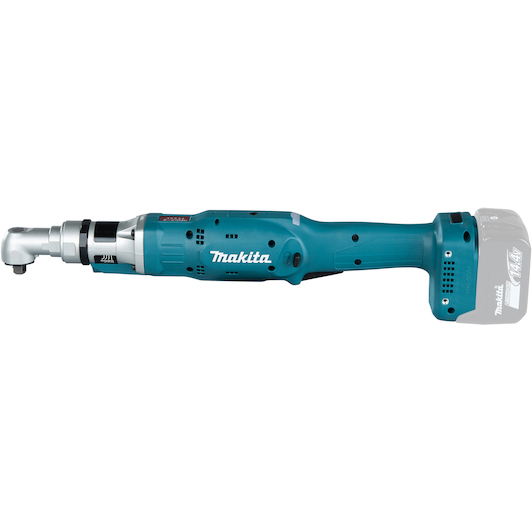

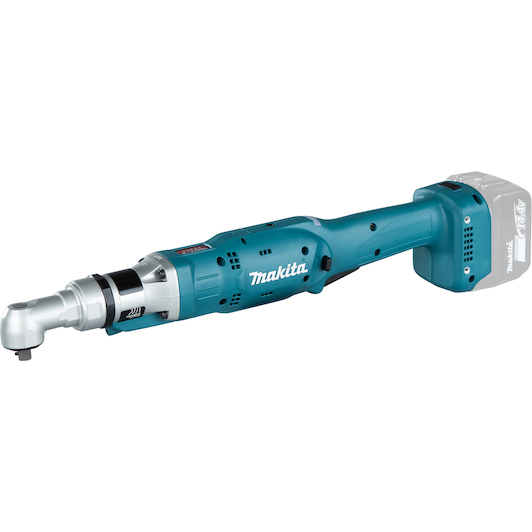

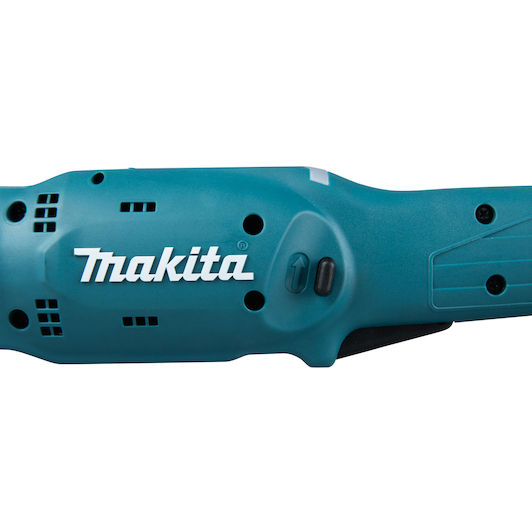

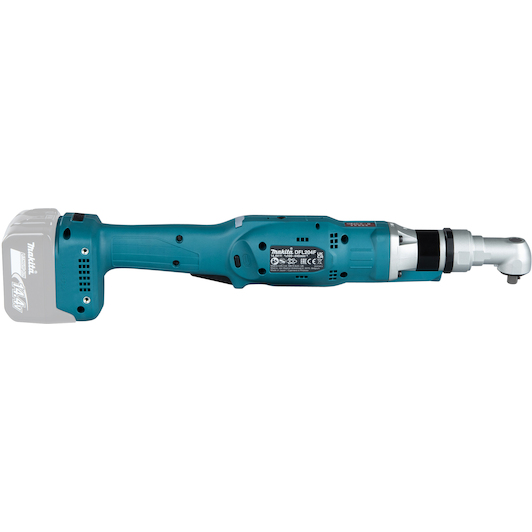

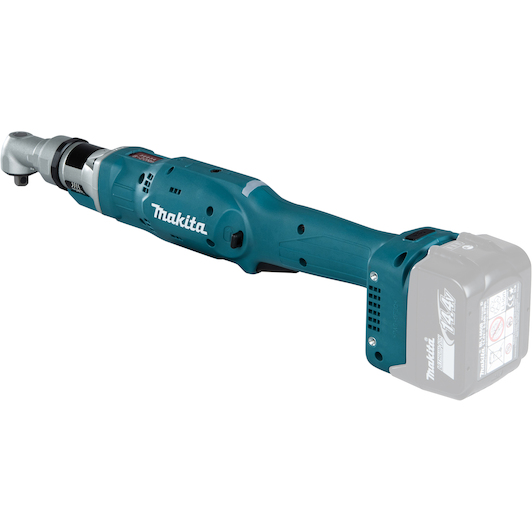

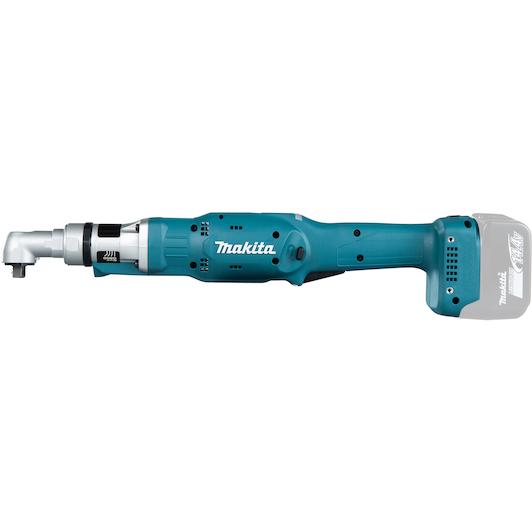

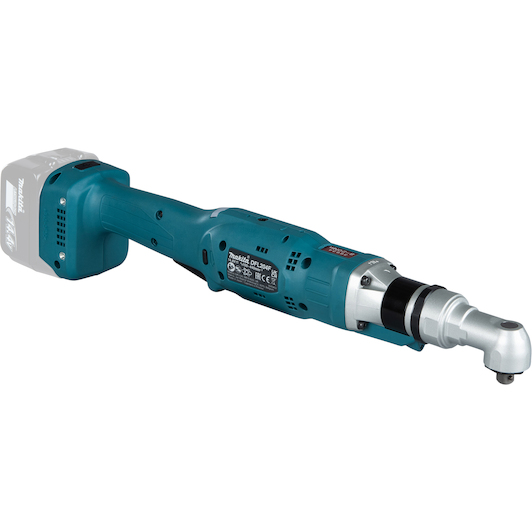

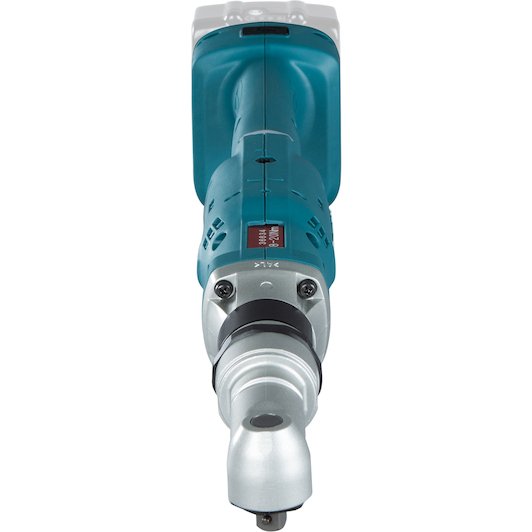

MAKITA DFL204FZ 14.4V LXT battery-operated right angle torque spanner 3/8" 20 Nm (without battery and charger)

MAKITA
Supplier number: MAKITA DFL204FZ | EAN 0088381857192
This product has been discontinued.

Successor to this product

makita_dfl204fz
MAKITA DFL303F4Z 18V LXT right-angle cordless torque spanner...
View product
✆ Talk to a specialist


Product information Accessories

Product information

Key features according to our expert

  • Battery voltage: 14,4 V
  • Max. no-load speed: 100-440 /min.
  • Number of batteries included: 0
  • With work light: Yes
  • Shut-off type: Mechanical
  • Weight: 1,4 kg
  • Battery type: Li-ion
  • Supplied in: Cardboard box
  • UN number: Not applicable
  • Max. tightening torque: 20 Nm
  • Min. tightening torque: 8 Nm
  • Orientation (head): Right-angle head
  • Shape (handle): Straight handle
  • Tool holder type: External square
  • Tool holder size: 3/8"
  • Product Range: Makita LXT 18V

Product description

Brushless angle torque spanner with adjustable speed for jobs requiring precise torque

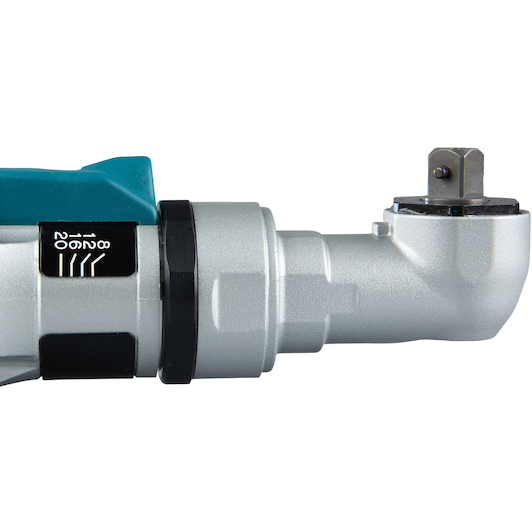

A 14.4 V brushless angle torque spanner with a 3/8" square drive shaft for industrial installation work. The tool's fastening range is 8 - 20 Nm with an accuracy of ± 7%. Indicator light and beeper for fastening status. Adjustable motor speed: 100 - 440 min¯¹. Tool only, battery and charger not included.

  • Automatic stop system for reducing battery power
  • Automatic stop when the required torque is reached
  • Ergonomically designed handle with firm grip provides greater control and comfort
  • Battery protection circuit protects against overload, over-discharge and overheating
  • High torque accuracy
  • Built-in LED lamp illuminates the work area
  • Maintenance-free, long-life brushless motor
  • Programmable speed control for assembly line fastening work
  • Soft-start function for smooth start-up
  • One-finger pull switch for greater comfort and control

All Features

Battery voltage
14,4 V
Max. no-load speed
100-440 /min.
Number of batteries included
0
With work light
Yes
Shut-off type
Mechanical
Weight
1,4 kg
Battery type
Li-ion
Supplied in
Cardboard box
Un number
Not applicable
Max. tightening torque
20 Nm
Min. tightening torque
8 Nm
Orientation (head)
Right-angle head
Shape (handle)
Straight handle
Tool holder type
External square
Tool holder size
3/8"
Lxt voltage
1
Weight with battery
1.7 - 2.1 kg
Vibration uncertainty (k factor), screws
1.5 m/s²
Max. torque hard/soft
8.0 - 20.0 / 8.0 - 20.0 Nm
Brushless motor
1
Noise uncertainty (k-factor)
3 dB(A)
Battery chemical composition (nicd/nimh/li-ion)
Li-ion
Nominal battery voltage
14,4 V
Dimensions (l x w x h)
481 x 74 x 98 mm
Product range
Makita LXT 18V
