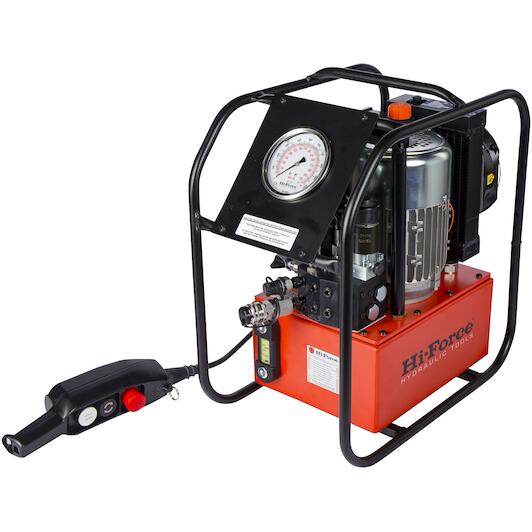

HI-FORCE TPE45D electric pump 400V 3-phase 1500W for torque spanner premium series, with digital manometer

Product description

• Working pressure 700 bar
• 3-stage pump with high output
• Compact and lightweight
• Low noise level (<88 db)
• Supplied with single set, fitted quick-release couplings
• Automatically activated oil cooler fitted as standard
• Torque setting by means of pressure relief valve with lock nut
• Version with digital pressure gauge
• Remote control with 5-metre cable length for easy operation
• Choice of manual operation with automatic return or fully automatic operation
• 4-way distribution block for simultaneous operation of up to 4 torque wrenches
• Factory-fitted protection and carrying frame
• Unique new concept with increased speed and flow rate
• Number of stages: 3
• Number of pistons per pump unit: 8
• Max. working pressure: 700 bar
• Oil capacity: 7 litres
• Flow rate 1st stage: 6.5 l/min
• Flow rate 2nd stage: 1.5 l/min
• Flow rate 3rd stage: 0.75 l/min
• Switching pressure: 100 bar

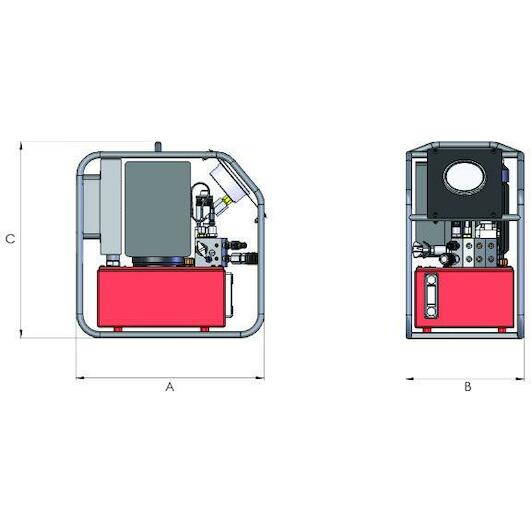

• Length: 456 mm
• Width: 286 mm
• Height: 476 mm
• Weight: 36 kg (including oil)
• Maximum oil temperature: 80°C
