Product description

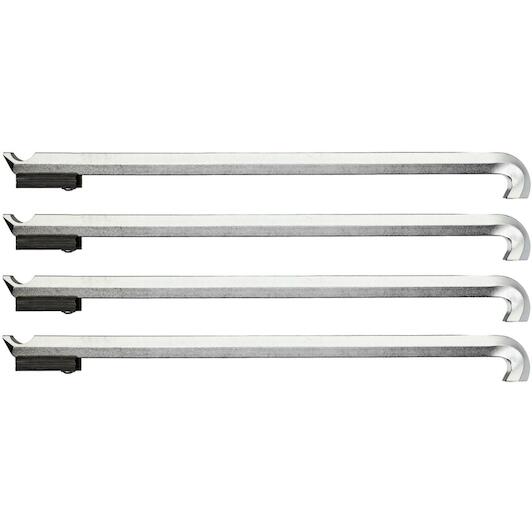

- 1.29/45 Tow bar set 4 pieces 226 mm with spacers
Supplier number:
GEDORE 8110250
|
EAN
4036976103588
Recommended Retail Price
€190.70
116.95
tax incl.
€96.65 excl. VAT (incl. all environmental contributions)
Precise extraction with Gedore legs
Practical benefits- Secure grip in ball race: You insert the specially shaped hooked feet directly into the ball race for balanced pulling force across the bearing.
- Reach of 236 mm: With an effective 236 mm length, you reach deep-seated bearings easily in tight machine housings.
- Complete four-piece set: This four-piece pulling leg set with spacers equips your puller for reliable removal of standard bearings like 6211 and 6309.
Product information
Key features according to our expert
- Length: 236 mm
All Features
- Length
- 236 mm
- Crochet foot length under head
- 197, 197 mm
- Rounding diameter [mm]
- 6 mm
- Distance inner radius rear edge bent [mm]
- 6.1 mm
- Hook foot length top of head [mm].
- 227 mm
- Distance from top edge of beam to tip of hook foot [mm].
- 14.7 mm
- Distance inner radius rear edge
- 6.1 - 11.6 mm
- For ball bearing pullers
- 1.29/41.29/5
- Crochet foot width
- 11.3 mm
- Total hook foot depth [mm]
- 10 mm
- For ball bearing no.
- 6211 6308 6309 6405 6406 64076211 6212 6213 6309 6310 6311
- Overall length [mm]
- 237 mm
- Brand GEDORE
- EAN 4036976103588
- Supplier number GEDORE 8110250
