HI-FORCE HFG4006 single-acting lock nut cylinder, 398 tonnes, stroke length 151 mm

Name: HI-FORCE HFG4006 single-acting lock nut cylinder, 398 tonnes, stroke length 151 mm
Brand: HI-FORCE
SKU: 06002513
Price: 15796.74 EUR
Availability: PreOrder

15,796.74 tax incl.

€13,055.16 excl. VAT (incl. all environmental contributions)

HI-FORCE HFG4006 single-acting lock nut cylinder, 398 tonnes, stroke length 151 mm

€15,796.74

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL
Manual in your language included

Product information
Additional info

Product description

Hydraulic lock nut cylinder
Single acting, load return
Capacity of 398 tonnes
Stroke length of 151 mm
Working pressure 700 bar
The mechanical locknut allows the load to be locked for a longer period of time
Suitable for vertical lifting only
Screwed plunger fitted with tilting saddle as standard to reduce the risk of side loading
Nitrocarbonised cylinder housing and plunger for enhanced corrosion protection
Bearing surfaces with minimal friction
Anti-extrusion seals for improved high-pressure performance
Stroke restriction port to limit the stroke length
Optional pivot pin for easy rotation of the retaining ring: TTB14
Oil capacity: 8.44 l

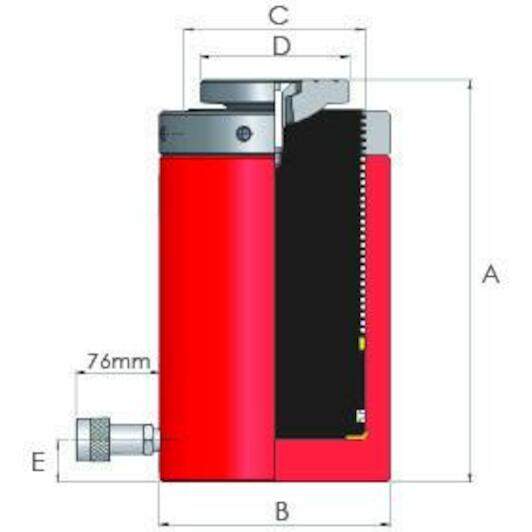

Construction height: 459 mm
Cylinder diameter: 342 mm
Piston diameter: 267 mm
Weight: 308.5 kg
