BAHCO

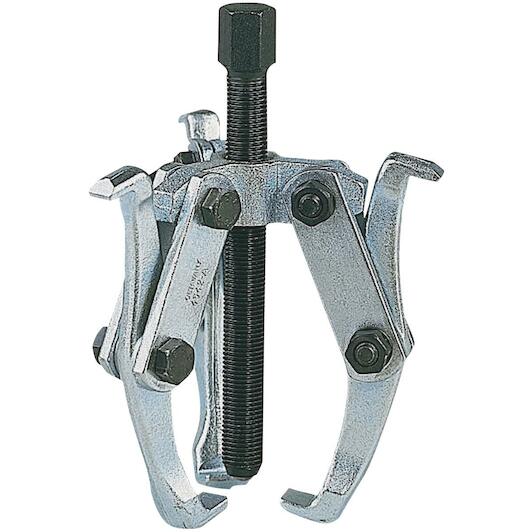

BAHCO 4542-A trigger with three arms galvanised 20-150 mm 85 mm

Recommended Retail Price €163.54
99.95 tax incl.
€82.60 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

Alternative to this product

Product description:

  • Extractor: 3 arm
  • Finish: Galvanised
  • Material: special steel
  • Especially suited for pulling ball bearings, pulleys, gears, etc
  • Double sided arms, one end broad, the other end narrow
  • Spare body
  • 4542-A/B for 4542-A
  • 4542-B/B for 4542-B
  • 4541K: Spare arm
  • Spare spindle
  • 4532-OAB/S for 4542-A (M14x1.5x135, SW 17, 190 g)
  • 4519-1/S for 4542-B (M18x1.5x240, SW 19, 485 g)
Key features according to our expert
  • Max. width: 150 mm
  • Number of hooks: 3
  • Hydraulical: No
  • Max. height: 85 mm
Specifications / All features
Max. width
150 mm
Number of hooks
3
Hydraulical
No
Max. height
85 mm
Torque range nm
60 N·m
Weight g
1200 g
Width mm (a)
20-150 mm
Width extractor mm
20-150 mm
Maximum loading capacity kn
40 kN
Extractor height mm
85 mm
Maximum loading capacity to
4 to
Arm length mm
85 mm
Hexagon size mm
17 mm
Spare spindle type & size mm
M14x1.5x135 mm
