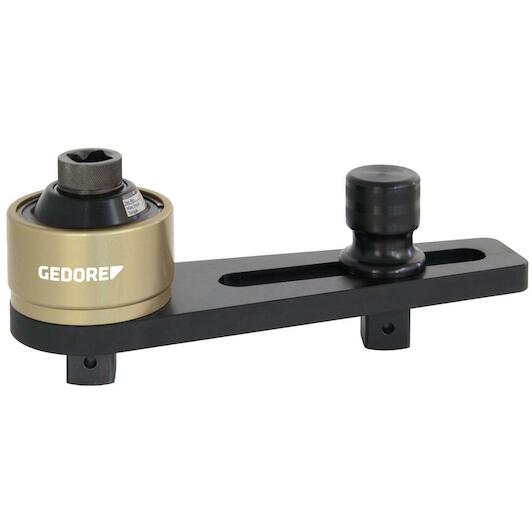

Scope of delivery DREMOPLUS ALU torque multiplier,With model-dependent, permanently integrated reaction arm in Z-shape or L-shape,Supplied in a sturdy transport case with foam insert,Factory test certificate and setting chart,Detailed technical information is available on request Product description Particularly suitable for Industry, construction sites, commercial vehicle and passenger car workshops, agricultural engineering, construction machinery Bridge, ship, aircraft, railway construction, refineries Machine building and plant engineering, maintenance Design Mechanical, manually operated torque multiplier for controlled tightening and loosening of screw connections With single-stage planetary gear system Housing made of high-quality aluminium Models with gear ratio 14, 15.5 Guaranteed accuracy tolerance better than +/- 3% Can be operated in combination with a torque spanner, 2 models with a range of max. 2000 Nm and max. 2800 Nm Model -Z with bent Z-shaped reaction arm made of Chrome-Vanadium steel Model -L with straight L-shaped reaction arm, with adjustable reaction square, made of light metal Output square with bore for use of impact spanners with locking pin and washer
Key features according to our expert
Max. tightening torque: 2800 Nm
Specifications / All features
Brand:
GEDORE
02302396
EAN:
4010886934449
Supplier number:
GEDORE 2653257
Max. tightening torque
2800 Nm
Backstop
No

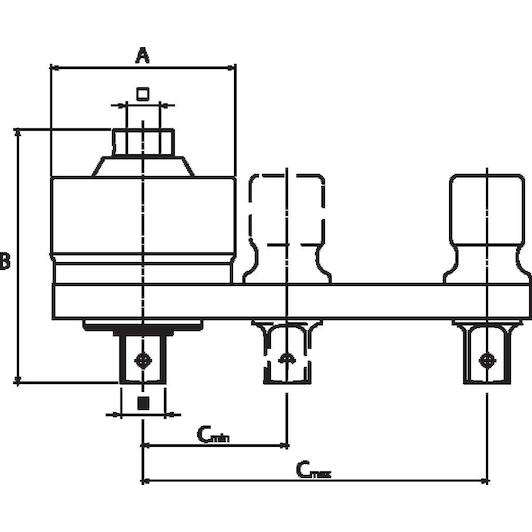

Distance drive square - start of torque arm (min.)
83
Drive intake, square [inch].
3/4"
Input torque (max.) [nm].
550 Nm
Output tightening torque (max) [lbf-ft].
2050
Input torque (max) [lbf-ft].
410 lbf-ft
Transfer ratio
1:5,5
Output torque (max.) [nm].
2800
Overall height without torque arm
146
Overall width without torque arm
106
Reaction arm version
L-shape, straight
Drive mounting, square [metric]
20.0 mm
Drive square [inch]
1"
Distance drive square - end of torque arm (max)
199
Drive square [metric]
25 mm
Drive square
1"
Overall length [mm]
230 mm
