GEDORE 400 9X11 ring spanner open hexagon 9x11 mm - 6056970

Show more features

Ring spanner type

Open ring spanner

Type of drive profile 1

Twelve-point

Drive profile size 2

11 mm

Type of drive profile 2

Twelve-point

Length

145 mm

Vde approved

No

With safety colour code 1000v

Not applicable

Non-sparking

No

Surface treatment

Chrome plated

Drive profile size 1

9 mm

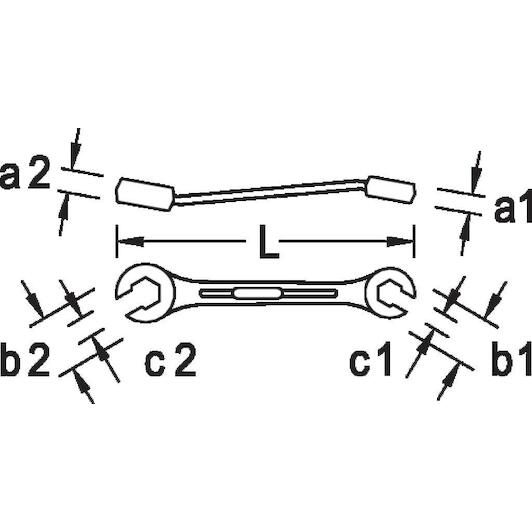

Head width 1 [mm].

19.0 mm

Opening width 1 (min.) [mm]

6.5 mm

Key width 1 [mm]

9

Overall length [mm]

145 mm

Standard

DIN 3118

Head height 1 [mm]

7.5 mm

Surface area

chromed

Opening width 2 (max.) [mm]

8.5 mm

Head height 2 [mm]

8.5 mm

Head width 2 [mm]

22 mm

Material

31CrV3

Weight lbs]

0.130 lbs

Ring corner

15°

Use/application

Application to hydraulic/brake lines

Key width 2 [mm]

11

Implementation

Heads 15° inclined Angle Open 30° inclined, UD profile Open 15° inclined.

Key width [mm]

9x11
