Product description
- Construction in accordance with DIN 838
- ISO 3318
- ISO 1085
- ISO 10104
- Deep-grooved, with thin-walled rings
- Vanadium steel 31CrV3, chrome-plated
- Non-mirroring, matt surface
- Carefully forged and expertly machined Ring thin-walled, deeply swaged and angled at 5°, with UD profile - for gentle force transmission
- High bending rigidity - does not break or splinter under overload, minimising the risk of injury
- Overload is indicated by deformation
- For extremely deep or countersunk bolts or nuts
- High industrial quality for continuous loading under severe conditions
Key features according to our expert
-
Ring spanner type: Double ring spanner
-
VDE approved: No
-
Drive profile size 1: 25 mm
-
Non-sparking: No
-
With safety colour code 1000V: Not applicable
-
Surface treatment: Matt chrome plated
-
Length: 345 mm
-
Type of drive profile 2: Twelve-point
-
Drive profile size 2: 28 mm
-
Type of drive profile 1: Twelve-point
Specifications / All features
-
Brand:
GEDORE
-
41890112
-
EAN:
4010886601860
-
Supplier number:
GEDORE 6018610
- Ring spanner type
- Double ring spanner
- Vde approved
- No
- Drive profile size 1
- 25 mm
- Non-sparking
- No
- With safety colour code 1000v
- Not applicable
- Surface treatment
- Matt chrome plated
- Length
- 345 mm
- Type of drive profile 2
- Twelve-point
- Drive profile size 2
- 28 mm
- Type of drive profile 1
- Twelve-point

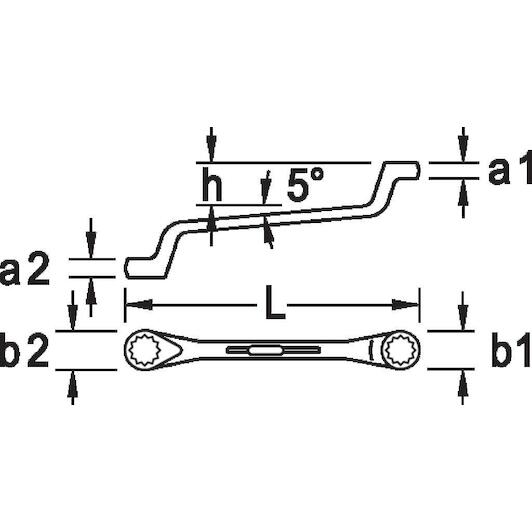

- Head width 2 [mm]
- 41.1 mm
- Overall length [mm]
- 360 mm
- Surface area
- chromed
- Head height 1 [mm]
- 14.4 mm
- Standard
- non-standardized
- Head width 1 [mm].
- 37.0 mm
- Key width 1 [mm]
- 25
- Crown heights 1
- 35.5 mm
- Head height 2 [mm]
- 15.4 mm
- Ring offset
- 5°
- Key width 2 [mm]
- 28
- Material
- 31CrV3
- Implementation
- Deeply swung, with thin-walled rings
- Key width [mm]
- 25x28
