FISCHER 562348 hinged quick-release pipe clamp FGRS Universal M8 60-66

Name: FISCHER 562348 hinged quick-release pipe clamp FGRS Universal M8 60-66
Brand: FISCHER
SKU: 03260639
Price: 1.68 EUR
Availability: InStock

Supplier number: FISCHER 562348 | EAN 4048962440874

1.68 tax incl.

€1.39 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 10.

Ordered before 20:00 - delivered tomorrow 02/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Dependable pipe mounting with Fischer FGRS Universal

Practical benefits

Fast single-screw locking mechanism: The secure quick-release lock clicks firmly into place so you can adjust pipes without unexpected opening.
Effective sound transmission reduction: An integrated sound insulation insert ensures you meet DIN 4109 acoustic standards inside the building.
Resilient zinc-plated steel body: The electro-galvanised steel construction provides you with long-lasting corrosion resistance in indoor installations.

In a nutshell

The right choise for

With the Fischer fgrs Universal hinged pipe clamp, you can mount pipes with an outside diameter of 60 to 66 mm quickly and securely. Thanks to the convenient single-screw quick-locking mechanism, the clamp clicks firmly into place so you can adjust pipes easily without unexpected opening. The integrated sound insulation insert effectively reduces noise transmission in accordance with din 4109. Using the M8 connection thread, you can easily secure the clamp onto threaded rods or hanger bolts on walls, ceilings, or floors. The 18 mm wide, electro-galvanised steel body provides durable corrosion protection for all your indoor plumbing and heating installations.

Product information FAQ

€1.68

In stock - tax incl.

Key features according to our expert

Max. diameter: 66 mm
Material (pipe clamp): Steel
Surface treatment: Electrogalvanised
Clamping range: 60-66 mm
Connection size (thread): M8
Width: 18 mm

Product description

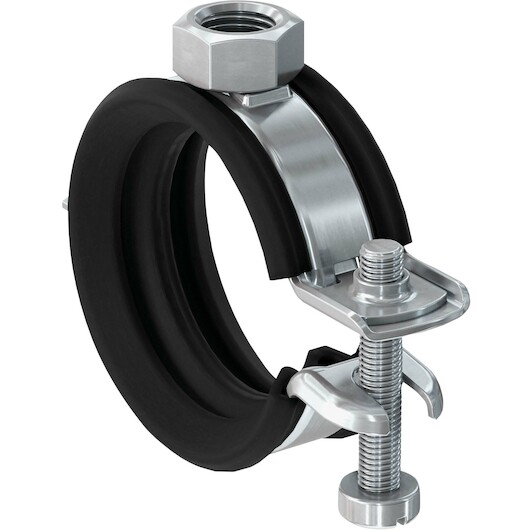

The hinged pipe clamp with the convenient and secure quick-release fastener

The fischer hinged pipe clamp FGRS Universal is a pipe clamp with one screw made from zinc-plated steel in material quality DD11 with a M8 or combination M8 / M10 thread. The rapid-locking mechanism and combination thread ensure easy and time-saving assembly. The quick-release mechanism snaps into place, ensuring reliable adjustment of the pipe without causing the clamp to pop open. This allows pipelines with an outer diameter of 12 - 66 mm to be securely fixed with a threaded rod or stud screw indoors. With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109.

With sound protection test report for objectively tested functional safety
Full, seamless diameter clamping range for fastening any size of pipe
Quick closure with full edge for secure, convenient assembly
Pipe clamp with embossed beads on the edge for a firm hold and simple pipe adjustment
Combination TX-slotted thread for added assembly flexibility
The sound insulation test report guarantees objectively tested functional safety
The complete and gapless diameter clamping range allows the fastening of any pipe size
The unique rapid-locking mechanism with all-round edge enables safe and convenient installation
The clamp band with crimped edges gives the sound insulation insert a tight fit and simplifies the pipe adjustment
The compact design of the pipe clamp allows simple, subsequent insulation
The combination torx-slot thread of the screw increases flexibility during assembly

Application

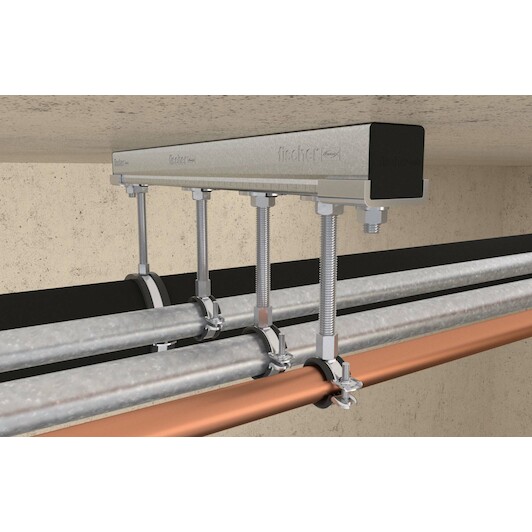

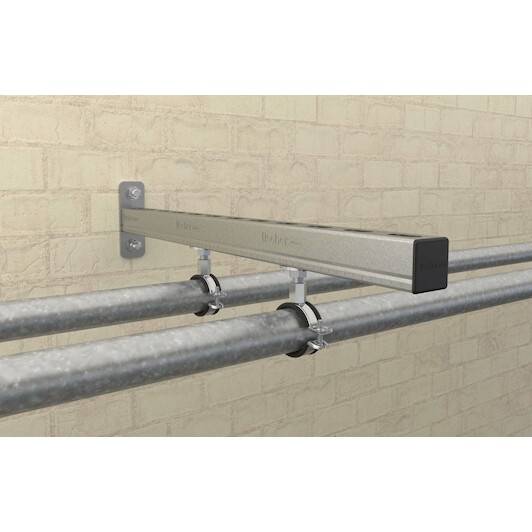

Time-saving fixing of pipelines up to 4" with threaded rods or hanger bolts
For use in dry interior areas

All Features

Max. diameter: 66 mm
Material (pipe clamp): Steel
Surface treatment: Electrogalvanised
Clamping range: 60-66 mm
Connection size (thread): M8
Width: 18 mm
Width x thickness clamping band: 18 x 1.2 mm
Nominal size: 2 in
Locking screw: M5
Metric thread: M8
Max. recommended static load: 0.9 kN
Tightening torque: 2 N-m
Colour: grey
Material: electrolytically galvanised steel
Height: 93.8 mm
Insulation insert: Sound insulation

Brand FISCHER
03260639
EAN 4048962440874
Supplier number FISCHER 562348

Frequently asked questions about this product

Answered by specialists

Which pipe diameters is this pipe clamp suitable for?: This clamp is suitable for pipes with an outside diameter of 60 to 66 mm.
What connection thread does this pipe clamp have?: The clamp features an M8 connecting thread for mounting with threaded rods or stud screws.
What material is this pipe clamp made of?: It is made of electro-galvanised steel and includes a sound insulation rubber insert.
How does the locking mechanism of the FGRS Universal work?: The rapid-locking mechanism clicks into place and fastens with a single screw for fast assembly.
