Scope of delivery

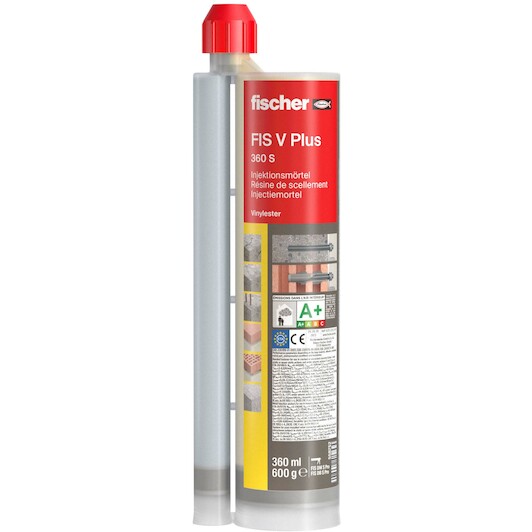

- 1x Injection mortar FIS V Plus 360 S
- 2x FIS MR PLUS mixing nozzle
Product description
The powerful universal mortar for concrete and masonry.
The fischer high-performance mortar FIS V Plus is the universal all-rounder for the highest requirements. The styrene-free vinyl ester hybrid mortar with its numerous fixing elements is approved for fixations in cracked and non-cracked concrete as well as in masonry. However, the injection mortar is also used with the approved system components for rebar connections, the fischer remedial wall tie VBS 8, the fischer weather facing wall tie FWS II, and the stand-off installation system TherMax. The variant FIS VS Plus Low Speed enables an extended processing time at higher processing temperatures or a greater drill hole depth. The shorter hardening time of the variant FIS VW Plus High Speed enables swift work progress even at low temperatures.
- ETA approval for post-installed rebar connections
- Injection mortar system with approval for all relevant building materials
- Maximum load absorption for much greater security
- Approved service life of 100 years
- Application in water-filled boreholes
- The FIS V Plus injection mortar has numerous system approvals, such as in cracked and non-cracked concrete, masonry and for special applications
- The ETA assessment for a service life of 100 years offers permanent safety for all applications
- The approved use in water-filled drill holes enables a wide range of applications, even under harsh environmental conditions
- FIS VW Plus High Speed has a significantly shorter hardening time than FIS V Plus, which ensures swift work progress even at low temperatures
- The FIS VS Plus Low Speed has an extended processing time that prevents the premature hardening of the mortar at higher temperatures. It is ideally suited to large drill hole depths
- The extensive range of accessories is ideally suited to the FIS V Plus injection mortar family, increases the great flexibility of the system and thus allows for a broad range of applications
Suitable for
- FIS V Plus is a 2-component injection mortar based on a vinyl ester hybrid concept
- Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer
- The mortar is extruded bubble free from the drill hole base
- The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole
- The injection cartridges are quick and easy to use with the fischer dispensers
- Partially used cartridges can be reused by changing the static mixer
Building materials
Approved for anchorings in:
- Concrete C20/25 to C50/60, cracked and non-cracked
- Hollow blocks made from lightweight concrete
- Hollow blocks made from concrete
- Vertically perforated brick
- Perforated sand-lime brick
- Solid sand-lime brick
- Aerated concrete
- Solid brick
Approved for:
- Rebar connections
- Remedial wall tie VBS 8
- Weather facing reconstruction system FWS II
- Stand-off installation TherMax
Application
- Steelwork constructions
- Timber constructions
- Guard rails
- Façades
- Staircases
- Steel brackets
- Machines
- Masts
- Awnings
- Canopies
- Gates
- Consoles
- Pipelines
- Gratings
- Satellite antennas
