Product description
The light two-screw pipe clamp with a rapid locking mechanism and combination connection nut

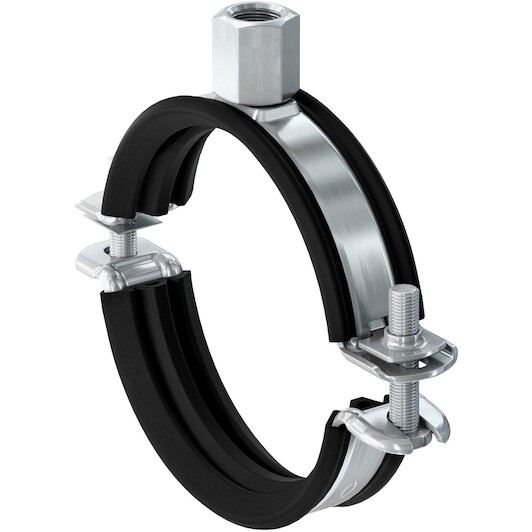

The fischer pipe clamp FRS-L Universal is a two screw pipe clamp made from zinc-plated steel in material quality DD11 with an M8/M10 combination thread and a sound protection certificate. The rapid-locking mechanism guarantees a quick and easy installation. The two-screw version enables optimised adjustment in line with the outer diameter of the pipe. Together with the combination connecting thread, this increases flexibility. This enables pipelines with an outer diameter of 8 to 119 mm to be fixed with a threaded rod or stud screw indoors in accordance with the fire protection requirements of fire resistance class R 120 and MLAR. With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109.
- Profiled clamp band for outstanding rigidity and stability
- Optimised hold between sound insulation insert and clamp band
- Combination thread M8/M10 for flexible connection options
- Loss-secured screws
- Fire protection test R120
- MLAR R30 sample cable system test
- The fire inspection report and the sound insulation report guarantee objectively tested functional safety
- The unique rapid-locking mechanism with crimped edges allows a secure and time-saving installation
- The clamp band with crimped edges gives a tight fit of the sound insulation insert and prevents it from slipping out when aligning the pipe
- The two screws allow a perfect adaptation of the pipe clamp to suit every outer pipe diameter
- The connecting nut with combination thread M8 / M10 enables an optimised warehousing
- The screw's loss protection guarantees an easy installation
Application

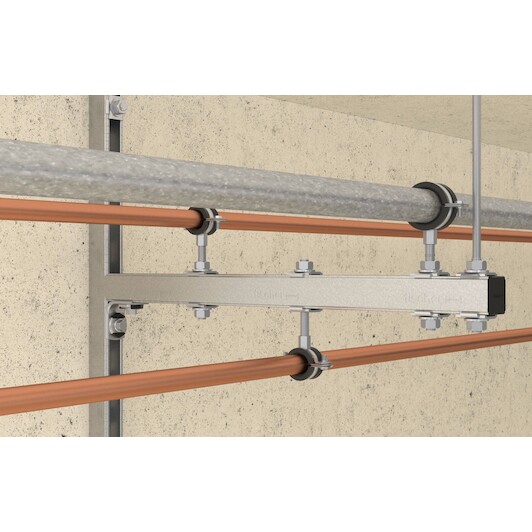

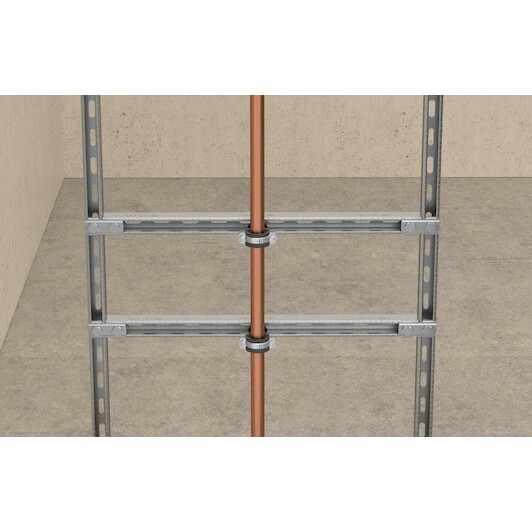

- For simple and easy fixing for pipes using threaded rods or stud screws
- For use in dry interior areas
