FESTOOL CS 70 EBG-SET PRECISIO 225 mm 2100 W draft and cross-cut saw with length stop, sliding table and extension/expansion - 574782

FESTOOL
Supplier number: FESTOOL 574782 | EAN 4014549266045
1 review(s)
Recommended Retail Price €4,974.99
3,981.88 tax incl.
€3,290.81 excl. VAT (incl. all environmental contributions)
On stock - immediately available | we have 2 products in stock.
set

✆ Talk to a specialist

Consumables

View more consumables (9)

High precision cuts with Festool

Practical benefits
  • High power for deep cuts: With the 2100 W motor, you cut through materials up to 70 mm deep with ease.
  • Extended support for large workpieces: The included sliding table and extensions help you guide large wooden panels smoothly and accurately.
  • Clean cuts without splintering: Integrated splinterguards ensure you achieve clean, splinter-free edges on both sides without rework.

In a nutshell

The right choise for

With the Festool cs 70 ebg-set PRECISIO, you combine the power of a table saw with the versatility of a pull-push trim saw. Its 2100 w motor and 225 mm blade let you cut up to 70 mm deep into solid timber and sheet materials. The included sliding table, table extension, and table widener provide excellent support when guiding large panels. Integrated splinterguards deliver splinter-free cuts on both sides, while dual extraction ports above and below the blade keep your working area clean and controlled.



Product information Accessories FAQ Reviews
€3,981.88
In stock - tax incl.

Product information

Key features according to our expert

  • Power: 2100 W
  • Constant speed control: Yes
  • Saw blade diameter: 225 mm
  • Included extensions: Sliding carriage; Table extension; Table widening
  • Max. cutting capacity (right): 680 mm
  • Adjustment (rip fence): Clamping lever on guide rail
  • Number of keys (blade change): 1
  • With spindle lock: Yes
  • Adjustable riving knife: Yes
  • Variable speed: Yes
  • Weight: 35 kg
  • Engine brake: Yes
  • Max. no-load speed: 4200 rpm
  • Inrush current limiter: Yes
  • Max. cutting depth at 90°: 70 mm
  • Max. cutting depth at 45°: 48 mm
  • Max. cutting depth: 70 mm
  • With stand: Yes
  • Voltage: 230 V
  • Dust extraction position: Under and above the saw blade
  • Slide function: Yes

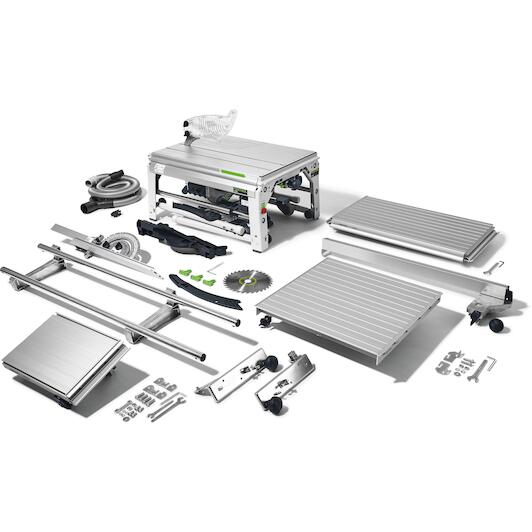

Scope of delivery

  • Circular saw blade WOOD UNIVERSAL HW 225 x 2
  • 6 x 30 W32
  • Sliding table CS 70 ST 650
  • Extension table CS 70 VB
  • Extension table CS 70 VL
  • Ripping-cut fence
  • Angle stop
  • 3 x splinterguard
  • Dust extraction set
  • Workpiece holder
  • Accessories holder
  • Support with transport roller
  • Air filter
  • Hex key
  • WAF 6

Product description

Solid, strong and uncompromising.

Cross or rip cuts. Mobile or stationary. Interior fitting, furniture-making or exhibition construction. One solution for a variety of tasks: The PRECISIO CS 70 with a low weight and ingenious functions can saw workpieces with a material thickness of up to 70 mm. And with the comprehensive range of system accessories, the CS 70 can be converted into a fully fledged sawing station.

  • 2100 watt universal motor for powerful cutting
  • 70 mm cutting depth for an even wider range of applications
  • Change quickly from rip to cross cuts with the angle stop
  • Moving splinterguard for splinter-free cuts on both sides
  • Clearly laid out, well-positioned control elements
  • Surrounding V groove for locating angle stops
  • Can be upgraded to a sawing station by adding an extensive range of accessories

Ideally suited for

  • Draw the saw blade for quick, precise cross cuts up to 320 mm wide
  • Cross cuts up to 226 mm wide at 45°
  • Rip cuts up to a depth of 70 mm
  • Tilting saw blade for angled cuts between -2° and 47°
  • Retractable spacer wedge for hidden cuts - removal not necessary

All Features

Power
2100 W
Constant speed control
Yes
Saw blade diameter
225 mm
Included extensions
Sliding carriage; Table extension; Table widening
Max. cutting capacity (right)
680 mm
Adjustment (rip fence)
Clamping lever on guide rail
Number of keys (blade change)
1
With spindle lock
Yes
Adjustable riving knife
Yes
Variable speed
Yes
Weight
35 kg
Engine brake
Yes
Max. no-load speed
4200 rpm
Inrush current limiter
Yes
Max. cutting depth at 90°
70 mm
Max. cutting depth at 45°
48 mm
Max. cutting depth
70 mm
With stand
Yes
Voltage
230 V
Dust extraction position
Under and above the saw blade
Slide function
Yes
Drive type
Mains
Cutting path
320.00 mm
Table dimensions
690 x 500 mm
Inclination
0 (-2)° - 45 (+47) °
Cutting height 90°/45°
0 - 70/0 - 48 mm
Dust extraction connection diameter
27/36 mm
Table height, legs unfolded
900.00 mm
Table height, legs folded away
375.00 mm
Idle engine speed
2000 - 4200 RPM
Cable length
4.00 m
Power consumption
2100 watt
Diameter of the saw blade
225.00 mm
Product weight without accessories
35.00 kg

Accessories

View more accessories (10)

Frequently asked questions about this product

Answered by specialists
What is the maximum cutting depth of this saw?
The maximum cutting depth is 70 mm at 90° and 48 mm at 45°.
Which table extensions are included with the SET version?
This set includes the sliding table CS 70 ST 650, table extension CS 70 VL, and table widener CS 70 VB.
Which saw blades fit the Festool CS 70 EBG-SET?
The saw uses blades with a diameter of 225 mm and a 30 mm bore.
How does dust extraction work on this saw bench?
The included dust extraction set extracts dust simultaneously from above and below the saw blade.
Is the speed of the motor adjustable?
Yes, the speed is variable up to a maximum of 4200 rpm with constant speed electronics under load.
