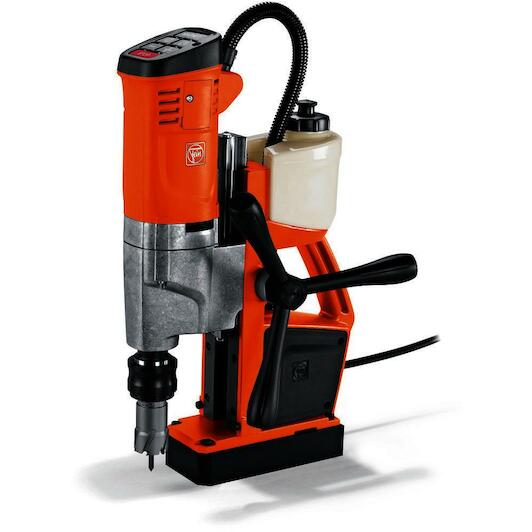

FEIN KBU 35 QW universal magnetic core drill up to 35 mm 1100W in case - 72705461000

FEIN
Supplier number: FEIN 72705461000 | EAN 4014586886763
Recommended Retail Price €1,538.36
1,218.88 tax incl.
€1,007.34 excl. VAT (incl. all environmental contributions)
On stock - immediately available | we have 2 products in stock.

✆ Talk to a specialist

Perfect combination

Versatile and powerful magnetic core drill

Practical benefits
  • Flexible on-site operation: The Fein KBU 35 QW is a compact and powerful universal magnetic core drill with clockwise/anti-clockwise rotation for flexible working on construction sites.
  • High stability and safety: A magnetic holding force of 10,000 N and a tilt sensor ensure secure positioning and safe operation.
  • Durable and efficient drilling: The extremely wear-resistant design and 1100 W motor with tacho electronics ensure high speed stability and a long service life.

In a nutshell

The right choise for

The Fein kbu 35 qw is a compact and powerful universal magnetic core drill, ideal for flexible use on construction sites. With a magnetic holding force of 10,000 n and a tilt sensor, you can drill safely and stably, even overhead or vertically into steel beams. The 1100 w motor with tacho electronics ensures constant speed and a long service life, perfect for drilling holes up to 35 mm with a 3/4 inch Weldon holder. Delivered in a convenient case, this machine weighs only 10.7 kg, making transport and handling easy.



Product information Accessories FAQ
€1,218.88
In stock - tax incl.

Product information

Key features according to our expert

  • Input power: 1100 W
  • Tool holder type: Weldon
  • Max. core drilling diameter: 35 mm
  • Clamping force magnetic base: 10000 N
  • Supplied in: Case
  • Type of system case: Not applicable
  • Weight: 10,7 kg
  • Tool holder size: 3/4"

Scope of delivery

  • 1 refrigerant container
  • 1 lashing strap
  • 1 chip hook
  • 1 centring pin
  • 1 contact guard
  • 1 case

Product description

  • Universal magnetic core drill up to 35 mm
  • KBU 35 QW
  • Small right/left-handed Universal magnet core drill with 1-speed, powerful stroke and highest functionality for flexible work on site.

Key features

  • Extremely wear-resistant machine concept with swivelling motor cable protection hose for heavy-duty use in industry and construction.
  • Perfect combination of weight and power due to compact design with optimised weight and FEIN 1 100W high-performance motor with tacho electronics for highly stable speed for reliable and cost-effective work.
  • Right/left-hand turning function, electronic speed adjustment and a stroke range of 260 mm allow universal use such as core and spiral drilling, tapping as well as reaming and countersinking. Small and light.
  • Simple operating concept with no danger of confusion in sight of the user.
  • Convenient indication of magnetic force.
  • Large magnetic force.
  • Tilt sensor.
  • Additional magnetic switch in the drill stand.
  • Integrated coolant tank.
  • Feed handwheel that can be changed from side to side.
  • Speed memory "Memory-Function".
  • Personal safety switch.

All Features

Input power
1100 W
Tool holder type
Weldon
Max. core drilling diameter
35 mm
Clamping force magnetic base
10000 N
Supplied in
Case
Type of system case
Not applicable
Weight
10,7 kg
Tool holder size
3/4"
Reduced power
550 W
Changing core drills
without tools
Tapping
M 14
Cable with plug
4 m
Galvanisation max. ø
31 mm
Magnetic holding force
10 000 N
Up to stroke range
260 mm
Core drilling depth max.
50 mm
Hm core drill max. ø
35 mm
Dimensions magnetic base
175 x 80 mm
Core drill chuck
3/4" Weldon
Hss core drill max. ø
35 mm
Spiral drill max. ø
16 mm
Nom. absorbed power
1 100 W
Reaming max. ø
16 mm
Battle
135 mm

Accessories

View more accessories (294)

Frequently asked questions about this product

Answered by specialists
What is the maximum core drilling diameter for the FEIN KBU 35 QW?
The maximum core drilling diameter is 35 mm.
What type of tool holder does this magnetic core drill use?
The FEIN KBU 35 QW uses a 3/4 inch Weldon tool holder.
What is the weight of the FEIN KBU 35 QW?
The machine weighs 10.7 kg.
What is the clamping force of the magnetic base?
The magnetic base has a clamping force of 10000 N.
Is the FEIN KBU 35 QW supplied in a case?
Yes, the FEIN KBU 35 QW is supplied in a case.
