Product description

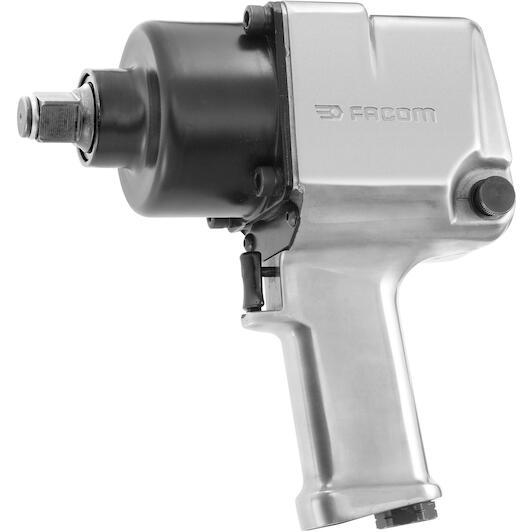

- 3/4" aluminium impact wrench
- The sturdy front aluminium housing, incorporates a durable twin hammer type mechanism.
- 1-hand reverser with 6 built-in force settings in the tightening position
- Stepped trigger for better speed control.
- Cap attachment via friction ring
- Maximum release torque 1700 N.m.
- Maximum torque 1495 N.m.
- Strokes per minute 790 cpm.
- No load speed 5700 rpm.
- Drive square 3/4".
- Working pressure 6.2 bar.
- Average air consumption 193 l/min.
- Tool connection 3/8".
- Diam hose. 13 mm - 1/2".
- Vibrations 9.10 m/s²/a.
- Vibrations 1.61 m/s²/K.
- Noise level 98.40 dB(A).
Key features according to our expert
-
Max. tightening torque: 1700 Nm
-
Drive profile size: 3/4"
-
Connection size (air): 1/2"
-
Speed: 5700 rpm
-
Supplier warranty: FACOM - 2 years
-
Max. breakeway torque: 1700 Nm
Specifications / All features
- Max. tightening torque
- 1700 Nm
- Drive profile size
- 3/4"
- Connection size (air)
- 1/2"
- Speed
- 5700 rpm
- Supplier warranty
- FACOM - 2 years
- Max. breakeway torque
- 1700 Nm
- Length (mm)
- 222
- Torque adjustable
- Yes
- Machine weight (kg)
- 5.6
- No-load speed (1/min)
- 5700
- Corner version
- Yes
- Max. operating pressure (psi)
- 89.923
- Max. release torque (nm)
- 1700
- Width (mm)
- 93
- Max. tightening torque (nm)
- 1495
- Tool holder
- 3/4"
- Height (mm)
- 233
- Required air volume (l/min)
- 193
