What is the current measurement range of this clamp?

The current clamp measures alternating current (AC) and direct current (DC) from 20 mA to 1500 A.

What is the maximum cable diameter for measurements?

The jaw opening is 53 mm and accommodates conductors with a maximum diameter of 52 mm.

Can this current clamp measure both AC and DC?

Yes, it supports both AC and DC current measurements up to 1500 A and voltages up to 600 V.

Does the unit support Lo-Z measurement?

Yes, the device features Lo-Z measurement to help eliminate ghost voltages.

Can this current clamp be connected to a multimeter?

Yes, it is designed for use with most multimeters, including Facom 711, 711A, 714, and 714A models.

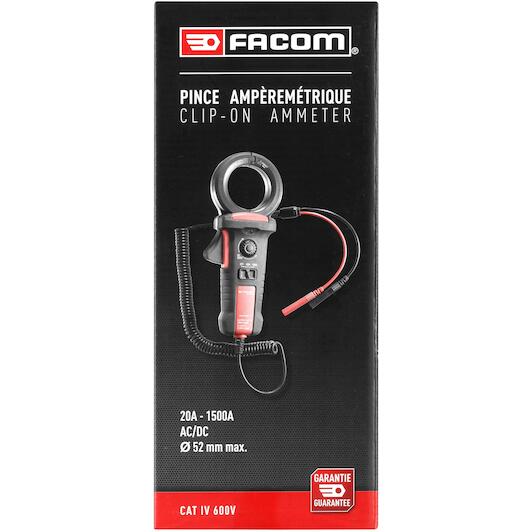

FACOM 720.P1500PB current clamp 20 mA - 1500 A

Name: FACOM 720.P1500PB current clamp 20 mA - 1500 A
Brand: FACOM
SKU: 03169836
Price: 136.69 EUR
Availability: PreOrder

Supplier number: FACOM 720.P1500PB | EAN 3662424081910

Recommended Retail Price €150.57

136.69 tax incl.

€112.97 excl. VAT (incl. all environmental contributions)

On order: delivered from 13/10/2026

Ordered before 20:00 - delivered as of 13/10/2026
Free shipping
Delivery by DHL
Lifetime warranty on Facom? Or limited in time? Read more about it here.

✆ Talk to a specialist

Accurate electrical diagnostics with the Facom clamp

Practical benefits

Broad current measurement range: You measure both AC and DC current seamlessly from 20 mA up to 1500 A.
Wide jaw opening capacity: The 53 mm jaw opening allows you to clamp around conductors up to 52 mm in diameter.
Interference-free Lo-Z testing: You safely evaluate circuits up to 600 V while eliminating ghost voltages using the integrated Lo-Z mode.

In a nutshell

The right choise for

With the Facom 720.P1500PB current clamp, you measure electrical circuits quickly and accurately without disconnecting conductors. Its broad measurement range spanning 20 mA to 1500 a in both ac and DC lets you handle everything from small currents to heavy industrial loads. The wide 53 mm jaw opening easily clamps around thick conductors up to 52 mm in diameter. Integrated Lo-Z testing eliminates stray ghost voltages across circuits up to 600 V. Designed for seamless use with multimeters such as the Facom 711, 711A, 714, and 714A, it delivers reliable diagnostics every time.

Product information FAQ

€136.69

tax incl.

Key features according to our expert

Min. current measuring range AC: 20 mA
Min. current measurement range DC: 20 mA
Max. current measurement range DC: 1500 A
Max. voltage: 600 V
Jaw width: 53 mm
Max. cable diameter: 52 mm
Measurement Lo-Z: Yes
Max. current measuring range AC: 1500 A
Supplier warranty: FACOM - 2 years

Product description

Ampere clamp

Features

For measuring current without contact.
For use with most multimeters.
Automatic zero point adjustment, excellent for FACOM 711, 711A, 714 and 714A multimeters.
AC / DC measurement: 0 to 600 A.
Frequency response: 50 Hz - 60 Hz. RMS 600 V CAT III.
Supplied with a protective case.

All Features

Min. current measuring range ac: 20 mA
Min. current measurement range dc: 20 mA
Max. current measurement range dc: 1500 A
Max. voltage: 600 V
Jaw width: 53 mm
Max. cable diameter: 52 mm
Measurement lo-z: Yes
Max. current measuring range ac: 1500 A
Supplier warranty: FACOM - 2 years
Current measuring range/ac (a)/maximum value: 1500
Current measuring range/ac (a)/minimum value: 20
Max. voltage measuring circuit category (v): 600
Jaws opening (mm): 53
Type of current: AC/DC
Voltage measurement/dc: Yes
Analogue bar display: Yes
Indication/indication: Analog
Version as adapter for connecting to multimeter: Yes
Range selection: Manual
Voltage measurement/ac: Yes
Measuring circuit category: CAT IV
Current measuring range/dc (a)/maximum value: 1500
Interface: No
Current measuring range/dc (a)/minimum value: 20

Brand FACOM
03169836
EAN 3662424081910
Supplier number FACOM 720.P1500PB
Warranty Lifetime warranty on Facom? Or limited in time? Read more about it here.

Frequently asked questions about this product

Answered by specialists

What is the current measurement range of this clamp?: The current clamp measures alternating current (AC) and direct current (DC) from 20 mA to 1500 A.
What is the maximum cable diameter for measurements?: The jaw opening is 53 mm and accommodates conductors with a maximum diameter of 52 mm.
Can this current clamp measure both AC and DC?: Yes, it supports both AC and DC current measurements up to 1500 A and voltages up to 600 V.
Does the unit support Lo-Z measurement?: Yes, the device features Lo-Z measurement to help eliminate ghost voltages.
Can this current clamp be connected to a multimeter?: Yes, it is designed for use with most multimeters, including Facom 711, 711A, 714, and 714A models.
