What is included with the Facom 714APB?

The package includes a set of test leads, a battery analysis cable, a K-type temperature sensor, and a protective red snap-on case.

What are the maximum voltage and current measurement limits?

The meter measures AC/DC voltage up to 600 V and AC/DC current up to 0,4 A.

Can this automotive multimeter measure temperature?

Yes, you can measure temperature directly using the included K-type temperature probe.

What battery type powers this device?

It operates on standard AA batteries and features a low battery indicator.

Does the unit feature an automatic shut-off function?

Yes, it is equipped with an auto power-off function to conserve battery life.

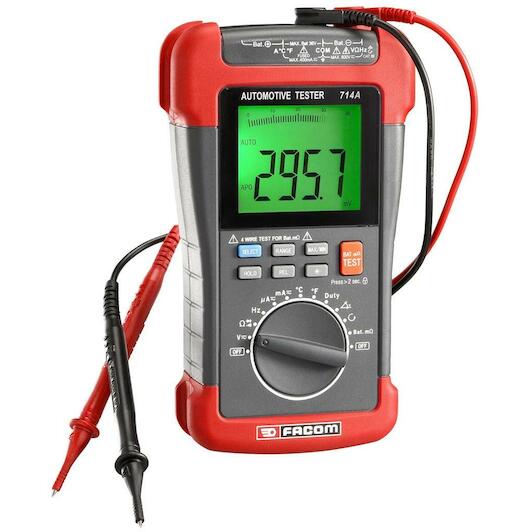

FACOM 714APB automotive multimeter

Name: FACOM 714APB automotive multimeter
Brand: FACOM
SKU: 03169830
Price: 407.97 EUR
Availability: PreOrder

Supplier number: FACOM 714APB | EAN 3148519049916

407.97 tax incl.

€337.17 excl. VAT (incl. all environmental contributions)

On order: delivered from 09/10/2026

Ordered before 20:00 - delivered as of 09/10/2026
Free shipping
Delivery by DHL
Lifetime warranty on Facom? Or limited in time? Read more about it here.

✆ Talk to a specialist

Fast automotive diagnostics with Facom 714APB

Practical benefits

Complete vehicle electrical testing: You measure voltage, current, resistance, frequency, and temperature accurately across automotive electrical circuits and components.
Direct battery condition checks: The included battery analysis cable allows you to check internal resistance while easily performing continuity and diode tests.
Rugged workshop casing: A durable red snap-on protective cover shields the digital tester against impacts and drops during daily mechanical work.

In a nutshell

The right choise for

With the Facom 714APB automotive multimeter, you troubleshoot electrical vehicle issues quickly and accurately. Whether you are checking sensors, testing charging circuits, or running continuity and diode tests, this digital meter delivers the functionality needed for thorough diagnostics. The included battery analysis cable lets you measure internal battery resistance directly, while the K-type temperature sensor enables precise component temperature checks. Handling measurements up to 600 V AC/DC, 0,4 A, and 40 MOhm, it covers a broad range of workshop jobs. The protective red snap-on casing guards the meter against everyday impacts, while automatic shut-off helps preserve battery life.

Product information FAQ

€407.97

tax incl.

Key features according to our expert

Max. voltage AC/DC: 600 V
Measurement Lo-Z: No
Max. current AC/DC: 0,4 A
Supplier warranty: FACOM - 3 years
Digital: Yes
Battery size: AA
Automatic shut-off: Yes
With current clamp: No
Diode test: Yes
Continuity test: Yes
Low battery message: Yes
Measurement temperature: Yes
Measurement of electrical capacity: No
Measurement frequency: Yes
Measurement resistance: Yes
Current measurement: Yes
Measurement voltage: Yes
Measurement of noise: No
Max. frequency: 400 kHz
Max. resistance: 40 MOhm

Scope of delivery

Set of measuring pens
Battery analysis cable
K-temperature sensor
Protective red snap-on casing

Product description

Measurement of the internal resistance of batteries
Operates with the ampere clamp 711A.P500
Automatic calibration
Voltage meter: AC / DC 0 to 600V
Ammeter: AC / DC 0 to 400 mA
Ohmmeter: 0 Ohm to 40 MOhm
Continuity and diode test
Cyclic ratio: 5% to 99%
Frequency meter: 1 Hz to 400 KHz
Ridge angle
Tachometer
Temperature measurement

All Features

Max. voltage ac/dc: 600 V
Measurement lo-z: No
Max. current ac/dc: 0,4 A
Supplier warranty: FACOM - 3 years
Digital: Yes
Battery size: AA
Automatic shut-off: Yes
With current clamp: No
Diode test: Yes
Continuity test: Yes
Low battery message: Yes
Measurement temperature: Yes
Measurement of electrical capacity: No
Measurement frequency: Yes
Measurement resistance: Yes
Current measurement: Yes
Measurement voltage: Yes
Measurement of noise: No
Max. frequency: 400 kHz
Max. resistance: 40 MOhm
With backlight: Yes
Nom. test voltage 100 v: Yes
Smallest resolution resistor: 0.000001 Ohm
Speed measurement: Yes
Nom. test voltage 10 v: Yes
Max. resistance measuring range (mohm): 40
Nom. test voltage 250 v: Yes
Frequency measurement: Yes
Bluetooth interface: No
Smallest resolution frequency: 1 Hz
Millioh measurement with 4-wire technology (kelvin connection): Yes
Nom. test voltage 50 v: Yes
Ir interface: No
Max. voltage measuring range, ac/dc (v): 600
Multiple indication: Yes
Resistance test/diode test: Yes
Insulation resistance measuring range (mohm)/maximum value: 40
Nom. test voltage 500 v: Yes
Power and energy measurement: Yes
Max. frequency measurement range (khz): 400
Interface: No
Temperature measurement: Yes
Range selection: Manual/automatic
Indication/indication: Digital

Brand FACOM
03169830
EAN 3148519049916
Supplier number FACOM 714APB
Warranty Lifetime warranty on Facom? Or limited in time? Read more about it here.

Frequently asked questions about this product

Answered by specialists

What is included with the Facom 714APB?: The package includes a set of test leads, a battery analysis cable, a K-type temperature sensor, and a protective red snap-on case.
What are the maximum voltage and current measurement limits?: The meter measures AC/DC voltage up to 600 V and AC/DC current up to 0,4 A.
Can this automotive multimeter measure temperature?: Yes, you can measure temperature directly using the included K-type temperature probe.
What battery type powers this device?: It operates on standard AA batteries and features a low battery indicator.
Does the unit feature an automatic shut-off function?: Yes, it is equipped with an auto power-off function to conserve battery life.
