FACOM 440.34 ring spanner with OGV profile 34 mm

FACOM
Supplier number: FACOM 440.34 | EAN 3148517682047
Recommended Retail Price €49.80
31.40 tax incl.
€25.95 excl. VAT (incl. all environmental contributions)
On stock - immediately available | we have 4 products in stock.

✆ Talk to a specialist

Alternative to this product

High torque with Facom wrench

Practical benefits
  • Fastener protection under load: The OGV profile grips the flats of fasteners instead of corners, preventing rounding when you apply high torque.
  • Access for recessed bolts: With 15° angled heads on both ends, you easily reach serial-mounted or recessed fasteners in tight spaces.
  • Comfortable and strong leverage: Measuring 390 mm with an ergonomic I-beam profile, it gives you superior leverage and comfortable hand control.

In a nutshell

The right choise for

Tackle heavy maintenance and assembly jobs with confidence using the Facom 440.34 combination spanner. Featuring an ogv profile on the ring head, it delivers high torque directly to the flats of 34 mm fasteners, protecting bolt heads from rounding and damage. a generous 390 mm overall length combined with an ergonomic I-beam handle gives you superior leverage to break loose stubborn, high-torque fixings with ease. Additionally, both the open-end and ring heads are angled at 15°, allowing smooth access to recessed or closely spaced bolts in confined work areas.



Product information FAQ
€31.40
In stock - tax incl.

Product information

Key features according to our expert

  • Width across flats: 34 mm
  • Non-sparking: No
  • Supplier warranty: FACOM - Lifetime (E)
  • Length: 390 mm
  • Product Range: Facom OGV

Product description

  • 440 - Metric ring spanners

Features

  • Standard spanner for all normal applications.
  • High-quality mechanical properties combined with small dimensions, keeping in mind aerospace requirements.

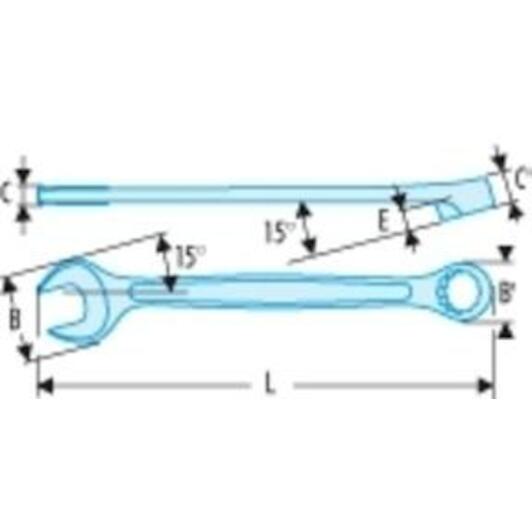

  • Ring head:
    • The design of the angle of the ring (side E) gives a better grip on back-to-back or recessed nuts.
    • 12-sided ring with OGV profile for powerful torque without damaging the nut. Suffix H = 6-sided ring.
    • Ring head bent 15°.
  • Fork head:
    • Fork 15° curved.
    • Optimised geometric relationship between fork and handle for greater accessibility.
  • Metric sizes: from 4 to 41 mm.
  • Finish: chrome-plated, satin-finished.

All Features

Width across flats
34 mm
Non-sparking
No
Supplier warranty
FACOM - Lifetime (E)
Length
390 mm
Head width stitch (mm)
72
Ratchet version
No
Number of corners
12
Insulated 1000 v
No
Surface protection
Chromed
Spark arm version
No
Head width cap/ring/ratchet (mm)
48.9
Pitch width (mm)
34
Suitable for wringer bar
Yes
With wringer
No
Curved
Yes
Length (mm)
390
Product range
Facom OGV

Frequently asked questions about this product

Answered by specialists
What is the size of this combination spanner?
This spanner has a size of 34 mm on both the ring and open end.
What is the benefit of the OGV profile on the ring head?
The OGV profile grips the flats of the fastener rather than the corners, preventing rounding and damage.
What is the overall length of the Facom 440.34?
This combination spanner has an overall length of 390 mm.
What is the angle of the spanner heads?
Both the open end and the ring head are angled at 15 degrees for improved accessibility in tight spaces.
Is this spanner spark-proof?
No, this spanner is not spark-proof and is not designed for use in explosive environments.
