Product description

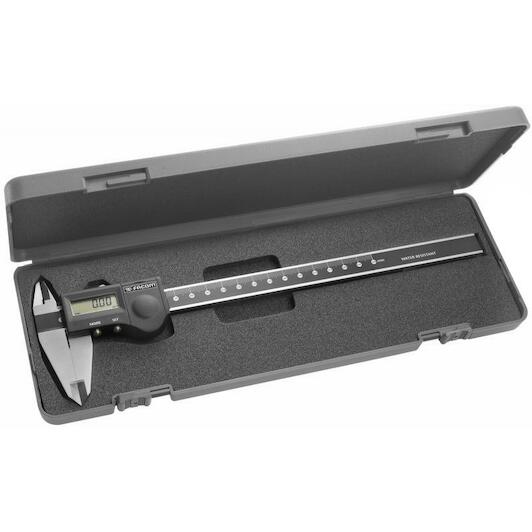

- Calipers with digital display - 1/100ePrecision
- : 1/100th - 0.01 mm.
- Repeatability: 10 µm.
- Degree of protection IP 65:
- IP 6: full protection against dust.
- IP 5: protection against sprayed liquids.
- Mechanism made of hardened stainless steel.
- Display with patented inductive system.
- Flat depth gauge.
- Digital display on 6 mm LCD screen.
- Floating zero point.
- Conversion from mm to inch.
- Automatic power switch-off.
- Compatible with Gagewedge software, output RS232.
- Autonomy: approximately 3500 hours.
- Supplied in case with certificate of conformity.
Key features according to our expert
-
Measuring range: 200 mm
-
Jaws length: 50 mm
-
Supplier warranty: FACOM - Legal warranty applicable
-
Readout: 0,01 mm
Specifications / All features
- Measuring range
- 200 mm
- Jaws length
- 50 mm
- Supplier warranty
- FACOM - Legal warranty applicable
- Readout
- 0,01 mm
- Material
- Stainless steel ( RVS )
- Digital indication
- Yes
- Fine adjustment type
- Slide
- Measuring range (mm)/maximum value
- 200
- Metric scale
- Yes
- Length (mm)
- 290
- Accuracy (mm)
- 0.01
- Imperial scale
- Yes
