facom_1224175

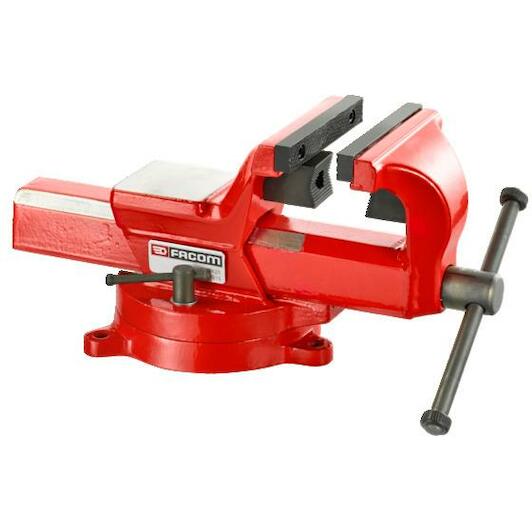

FACOM 1224175 vice for industry and maintenance 360° rotatable - 1224.175

FACOM
Supplier number: FACOM 1224.175 | EAN 3148519276312
Recommended Retail Price €654.61
639.40 tax incl.
€528.43 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/10/2026

✆ Talk to a specialist

Alternative to this product

Heavy-duty clamping for demanding workshop tasks

Practical benefits
  • Smooth 360-degree base rotation: You adjust the vice to the ideal angle to ensure an ergonomic posture and full access to your workpiece.
  • High strength cast body: Built from tough ductile cast iron, this Facom vice withstands heavy mechanical loads without flex or distortion under pressure.
  • Wide versatile clamping capacity: With a generous 235 mm opening, you securely clamp flat materials as well as round pipes with ease.

In a nutshell

The right choise for

With the Facom 1224.175 bench vice, you tackle heavy workshop and maintenance jobs with absolute precision and stability. Thanks to the smooth 360° swivel base, you quickly position your workpiece at the ideal angle without having to unclamp it. The ductile cast iron body with a tensile strength of at least 700 N/mm² and a solid 26 kg weight prevents flexing and absorbs high mechanical stress during sawing, drilling, and filing. Featuring a 175 mm jaw width and an expansive 235 mm clamping capacity, it accommodates large flat components with ease, while integrated V-shaped jaws grip round pipes securely.



Product information FAQ
€639.40
tax incl.

Product information

Key features according to our expert

  • Width: 178 mm
  • Weight: 26 kg
  • Supplier warranty: FACOM - Legal warranty applicable
  • Clamping width: 235 mm

Product description

  • 1224 - Vices for industry and maintenance 360° rotatable

Features

  • Vices made of ductile iron, breaking load 700 N/mm² or more.
  • Large support surface of prismatic guide/movable jaws: As the guide does not bend with it, the vise keeps working even under heavy loads.
  • Parallel interchangeable jaws. High wear resistance, hardness 48/53 HRc.
  • V-shaped jaws for securing pipes, partitions. Hardness 40/46 HRc.
  • Adjustment system by means of 2 complex screws with backlash adjustment.
  • Browned rotating bar.

All Features

Width
178 mm
Weight
26 kg
Supplier warranty
FACOM - Legal warranty applicable
Clamping width
235 mm
Jaw height (mm)
241
Table foot
No
Chain version
No
Interchangeable jaws
Yes
Max. clamping width (mm)
235
Jaw width (mm)
178
Material
Steel
Parallel-screw stick
Yes

Frequently asked questions about this product

Answered by specialists
What is the maximum clamping capacity of this vice?
The Facom 1224.175 has a maximum clamping capacity of 235 mm.
Can this bench vice rotate?
Yes, it features a 360° swivel base for flexible positioning at your workbench.
What is the jaw width of this model?
The jaw width is 175 mm (overall width 178 mm).
Is this vice suitable for heavy industrial use?
Yes, the ductile cast iron construction with a tensile strength of at least 700 N/mm² and a weight of 26 kg ensures high durability.
Can you clamp round pipes with this vice?
Yes, it includes integrated V-shaped jaws designed specifically for clamping pipes.
