Which drill bit shank system does the Bosch Uneo Maxx use?

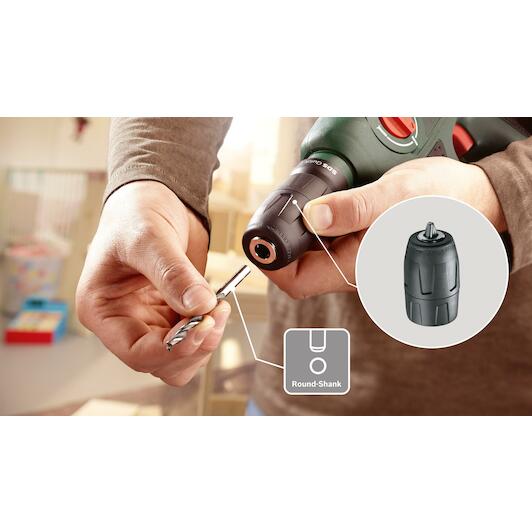

It features an SDS-Quick chuck and accepts hex bits. The included keyless chuck also lets you use standard round-shank drill bits.

Which batteries are compatible with this cordless rotary hammer?

This tool is compatible with all 18V batteries from the Power for All Alliance.

What are the maximum drilling diameters in concrete, wood, and steel?

The maximum drilling diameter is 10 mm in concrete, 10 mm in wood, and 8 mm in steel.

What is included in the carrying case?

The kit includes a charger, two 18V 2.5Ah batteries, a keyless chuck, two SDS-Quick bits, two hex bits, and four long screwdriver bits.

Can the Bosch Uneo Maxx be used for screwdriving and non-impact drilling?

Yes, it is a versatile 3-in-1 tool designed for screwdriving, standard drilling, and hammer drilling.

BOSCH UNEO MAXX cordless hammer in case (2x 2.5Ah battery + charger) - 0603952327

Name: BOSCH UNEO MAXX cordless hammer in case (2x 2.5Ah battery + charger) - 0603952327
Brand: BOSCH
SKU: 02783330
Price: 227.74 EUR
Availability: PreOrder

Supplier number: BOSCH 0603952327 | EAN 3165140877503

This product has been discontinued.

Successor to this product

BOSCH PBH18V-14 cordless hammer drill in a case (1 x 2.5 Ah...

View product

✆ Talk to a specialist

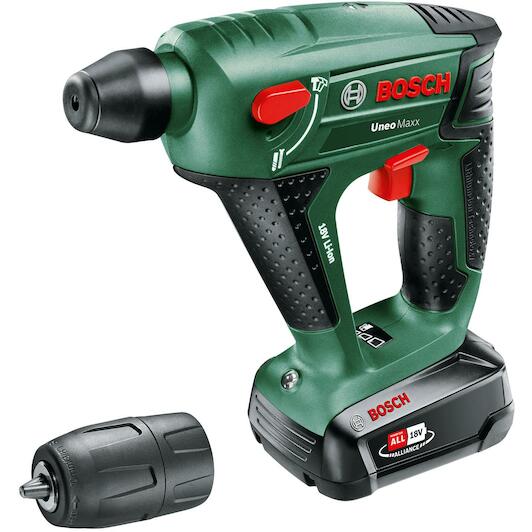

Compact Bosch cordless rotary hammer

Practical benefits

Versatile functions in one: You effortlessly handle screwdriving, drilling, and hammering tasks across wood, metal, and masonry with a single compact tool.
Powerful pneumatic mechanism: With 0,6 J of impact energy, you drill holes up to 10 mm into tough concrete without tiring physical effort.

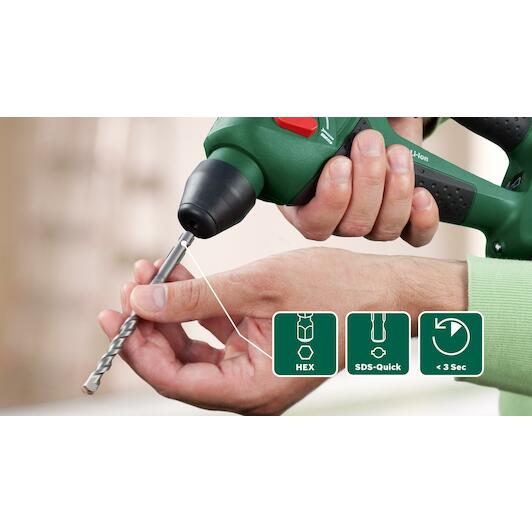

Rapid accessory changes: The intuitive SDS-Quick chuck lets you swap matching drill bits and screwdriver bits in just seconds without extra tools.

In a nutshell

The right choise for

Tackle drilling and screwdriving tasks around your home with the versatile Bosch Uneo Maxx 18V cordless rotary hammer. This compact 3-in-1 tool combines hammering, drilling, and screwdriving into concrete, masonry, wood, and steel without switching machines. Its pneumatic hammer mechanism delivers 0.6 j of impact energy, effortlessly drilling holes up to 10 mm into concrete. Weighing just 1.4 kg, it provides comfortable handling for overhead work and tight spaces. The SDS-Quick chuck and supplied keyless chuck ensure quick accessory changes. Supplied in a case with two 18V 2.5Ah batteries and a charger, you can keep working without interruptions.

Product information FAQ

Key features according to our expert

Battery voltage: 18 V
Vibration value (drilling in concrete): 16 m/s²
Number of batteries included: 2
Battery platform: POWER FOR ALL ALLIANCE
UN number: UN3481
Type of system case: Not applicable
Supplied in: Case
Anti-vibration system: No
Weight: 1,4 kg
Max. drilling diameter (steel): 8 mm
Max. drilling diameter (concrete): 10 mm
With dust extraction system: No
Impact energy: 0,6 J
With keyless chuck: Yes
Tool holder type: SDS-quick
Max. drilling diameter (wood): 10 mm
Capacity (battery): 2,5 Ah

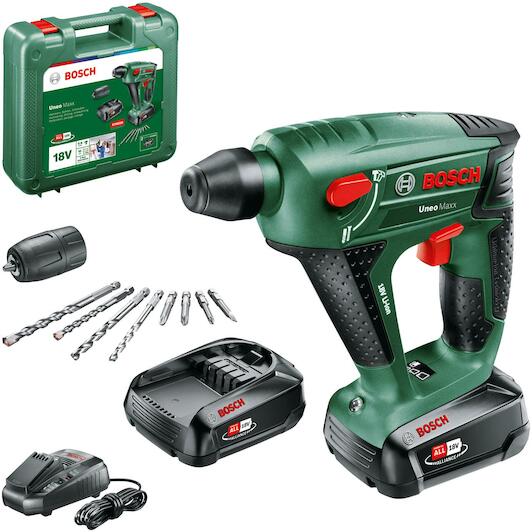

Scope of delivery

45-min charger, 2x 18 V Li-Ion battery (2.5 Ah), 2 SDS-Quick drills (concrete/masonry), 2 hexagonal drills, (metal/wood), 4 long screw bits and quick-clamping drill chuck

Product description

Cordless hammer drill Uneo Maxx (45-min charger, 2x 18 V Li-Ion battery (2.5 Ah), 2 SDS-Quick drills (concrete/masonry), 2 hex drills, (metal/wood), 4 long screw bits and quick-clamping drill chuck)
3-in-1 multitalent for hammering, drilling and screwdriving
Bosch SDS-Quick system
Lithium-Ion technology

Benefits

Cordless screwdriver, drill and hammer in one.
That's the Uneo Maxx from Bosch.
Compact, powerful and incredibly versatile.
With the cordless hammer you hammer, screw and drill into any surface, be it wood, plaster, brick or even concrete - all with one machine! The innovative pneumatic impact mechanism of the Uneo Maxx makes it possible.
Thereby, the powerful lithium-ion battery and the intelligent Bosch Syneon chip power the Uneo Maxx with impressive power and more runtime per battery charge - and you can always work without an annoying cable.
The Bosch Uneo Maxx cordless hammer is a real powerhouse for home and garden.

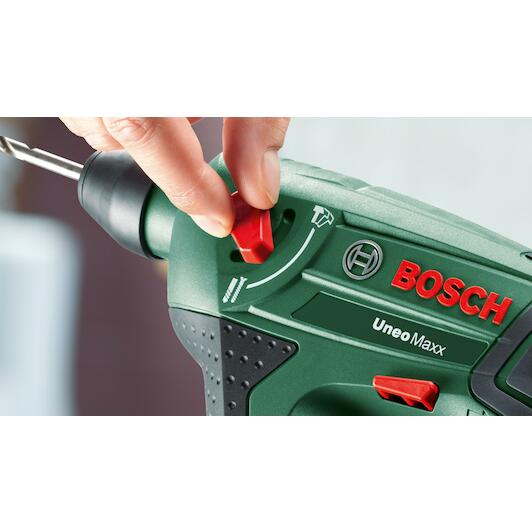

Simply select the right application via the function switch, the change of position is automatic: screw in position 1 with high torque, drill and hammer in position 2 with high speed and number of strokes.
So you are ideally equipped for any DIY job.
Moreover, the intelligent Syneon chip controls the perfect interplay of lithium-ion battery, powerful motor and robust drive.
Also very practical are the compact dimensions, ergonomic design and light weight of the 3-in-1 jack-of-all-trades.
So you can not only guide the machine safely and precisely in tight places.
It also fits into any drawer and is thus always within reach and ready to use.

All Features

Battery voltage: 18 V
Vibration value (drilling in concrete): 16 m/s²
Number of batteries included: 2
Battery platform: POWER FOR ALL ALLIANCE
Un number: UN3481
Type of system case: Not applicable
Supplied in: Case
Anti-vibration system: No
Weight: 1,4 kg
Max. drilling diameter (steel): 8 mm
Max. drilling diameter (concrete): 10 mm
With dust extraction system: No
Impact energy: 0,6 J
With keyless chuck: Yes
Tool holder type: SDS-quick
Max. drilling diameter (wood): 10 mm
Capacity (battery): 2,5 Ah
Max. drill diameter in concrete: 10 mm
Vibration emission value ah concrete: 13 m/s²
Sound pressure level: 85 dB(A)
Uncertainty k screws: 1.5 m/s²
Sound power level: 96 dB(A)
Screw diameter up to max.: 6 mm
Vibration emission value ah steel: 4 m/s²
Uncertainty k concrete: 3 m/s²
Bosch hammer mechanism: pneumatic
Uncertainty k steel: 1.5 m/s²
Vibration emission value ah screws: 2.5 m/s²
Max. drilling ø in wood: 10 mm
Force single stroke (epta): 0,6 J
Battery capacity: 2.5 Ah
Max. drilling diameter in steel: 8 mm

Brand BOSCH
02783330
EAN 3165140877503
Supplier number BOSCH 0603952327
Warranty Up to 5 years warranty on Bosch Professional and up to 3 years on Bosch DIY after successful registration!

Frequently asked questions about this product

Answered by specialists

Which drill bit shank system does the Bosch Uneo Maxx use?: It features an SDS-Quick chuck and accepts hex bits. The included keyless chuck also lets you use standard round-shank drill bits.
Which batteries are compatible with this cordless rotary hammer?: This tool is compatible with all 18V batteries from the Power for All Alliance.
What are the maximum drilling diameters in concrete, wood, and steel?: The maximum drilling diameter is 10 mm in concrete, 10 mm in wood, and 8 mm in steel.
What is included in the carrying case?: The kit includes a charger, two 18V 2.5Ah batteries, a keyless chuck, two SDS-Quick bits, two hex bits, and four long screwdriver bits.
Can the Bosch Uneo Maxx be used for screwdriving and non-impact drilling?: Yes, it is a versatile 3-in-1 tool designed for screwdriving, standard drilling, and hammer drilling.
