Scope of delivery
- L-BOXX 136/238
- RS232 connection cable
- RS232 to USB adapter cable, power adapter, analysis tool, operating instructions, test certificate

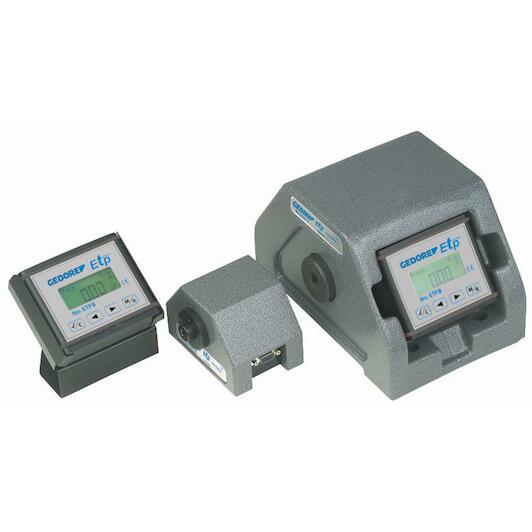

Product description
- For testing and adjusting right- and left-handed torque spanners, 5 models in the range from 0.5 to 3150 Nm
- Horizontal or vertical testing according to DIN EN ISO 6789 possible
- Electronic test device with integrated measuring electronics
- Sturdy basic housing made of die-cast aluminium (except No.
- ETP3150) with separate or removable operating display
- RS232 serial interface for PC
- Traceable to national standards
- No.
- ETP 15 with overload protection and tool for manual reset after unintentional overload
- Torque reading accuracy +/- 1 %, +/- 1 digit of reading value
- Factory certificate according to VDI 2646
- Optional certificate according to DAkkS-DKD-R 3-8
- Large graphic LC display
- Large measuring range in Nm, switchable to cNm, lbf-ft or lbf-in (model-dependent)
- Power supply with Euro plug (UK
- US
- AUS adapter on request)
- Scope of delivery: operating panel, display holder incl. cable, software incl.
- PC connection cable
- Adapter cable RS232 to USB optionally available (Code 1957880)
Key features according to our expert
-
Measuring range: 0,5 - 15 Nm
Specifications / All features
-
Brand:
GEDORE
-
02716405
-
EAN:
4002805932957
-
Supplier number:
GEDORE 2795663
- Measuring range
- 0,5 - 15 Nm
- Tightening range (min/max) [lbf-ft].
- 0.4 lbf-ft - 11 lbf-ft
- Torque (min.) [nm].
- 0.5 Nm
- Category at take e way
- Rub. 271 Prim.Li. Knopfzelle
- Overall length [mm]
- 120 mm
- Drive intake, square [inch].
- 1/4"
- Measuring accuracy of tightening torque
- ± 1% Toleranz vom Ablesewert, ± 1 Digit
- Chemical properties
- Lithium
- Tightening torque (min.) [lbf-ft]
- 0.4 lbf-ft
- Graphic display
- Yes
- Reach
- 0
- Interface
- RS-232
- Overload protection
- Yes
- Drive mounting, square [metric]
- 6.3 mm
- Un number
- UN 3091
- Tightening torque (max) [lbf-ft]
- 11 lbf-ft
- Battery type
- CR1225
- Energy source
- Knopfzelle
- Torque range (min./max.) [nm].
- 0.5 Nm - 15 Nm
- Resolution
- 0,001
- Torque (max.) [nm].
- 15 Nm
