BOSCH

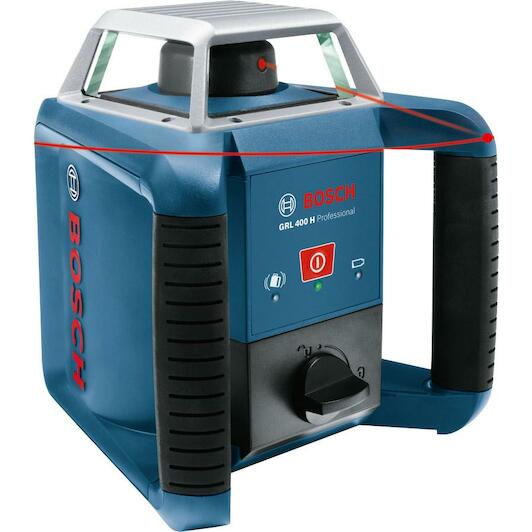

BOSCH GRL 400 H rotation laser red with GR 240 measuring rod and BT 170 HD tripod in case - 061599403U

Recommended Retail Price €1,033.13
778.99 tax incl.
€643.80 excl. VAT (incl. all environmental contributions)
On order: delivered from 07/07/2026
each

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

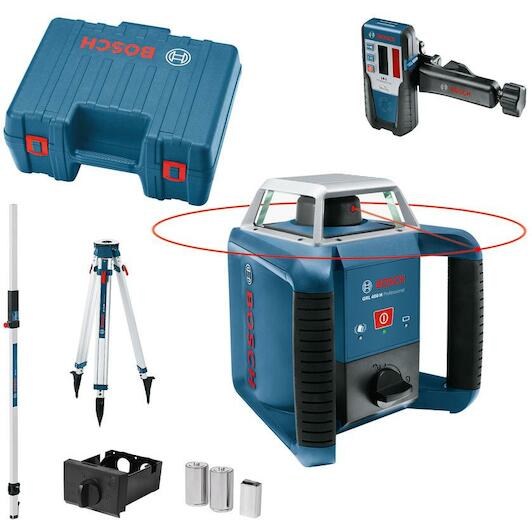

Scope of delivery

  • 3601K61800
  • Bracket (1 608 M00 05A)
  • Construction stand BT 170 HD Professional (0 601 091 300)
  • Charger with adapter
  • Measuring stick GR 240 Professional (0 601 094 100)
  • Laser receiver LR 1 Professional (0 601 015 400)
  • Battery compartment (1 609 203 M02)
  • 1 x Ah NiMH battery pack (ET no. 1 608 M00 05G)
  • 2 x 1.2 V HR20 (D) (9 Ah)
  • 2 x 1.5 V LR20 (D)

Product description

  • The easy-to-operate rotation laser for outdoor use
  • Long range of up to 400 m
  • Robust housing and IP 56 dust and splash water protection

User benefits

  • Simple operation: one-button function and self-explanatory display
  • Self-levelling of 8% (± 5°) when used horizontally
  • Automatic shock warning function prevents levelling errors in case of vibration or shock
Key features according to our expert
  • Laser type: Rotating laser
  • Type of system case: Not applicable
  • Max. range: 2x 10 m
  • With tripod: Yes
  • Projection (laser beams): circle horizontal
  • Self-levelling range: 5,0000 °
  • Weight: 2 kg
  • Tripod thread: 5/8"
  • Supplied in: Case
  • Laser class: Class 2
  • Accuracy: 0,08 mm/m
  • Colour (laser beams): Red
  • Max. range with receiver: 2x 200 m
  • Protection class IP: IP56
Specifications / All features
Laser type
Rotating laser
Type of system case
Not applicable
Max. range
2x 10 m
With tripod
Yes
Projection (laser beams)
circle horizontal
Self-levelling range
5,0000 °
Weight
2 kg
Tripod thread
5/8"
Supplied in
Case
Laser class
Class 2
Accuracy
0,08 mm/m
Colour (laser beams)
Red
Max. range with receiver
2x 200 m
Protection class ip
IP56
Battery weight 3
438,00 g
Electrical power supply
2 x 1.5 V LR20 (D)
Compatible laser receivers
LR 1
Storage temperature, from [°c]
-20
Length x width x height
183 x 170 x 188 mm
Self-leveling time, typ. [s]
15
Operating temperature, from [°c]
-10
Operating range with receiver, value [m]
400
Operating temperature, up to [°c]
50
Storage temperature, up to [°c]
70
Colour laser line
red
Battery weight 1 [g]
142,00 g
Battery weight 2
46,00 g
Laser diode
635 nm, < 1 mW
Number of batteries
3
Operating temperature
-10 - 50°C
Dust and splash water protection
IP 56
Rotation speed
600 rpm
Levelling range
± 8% (± 5°)
Storage temperature
-20 - 70°C
Operating range without receiver, value [m]
20
