BAHCO

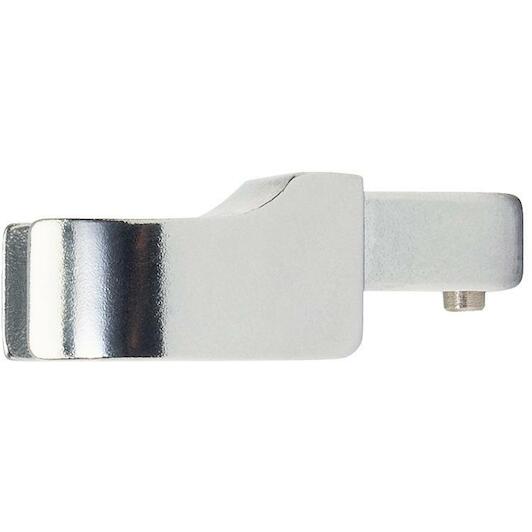

BAHCO 99-5/8 slotted open-end spanner with rectangular connection 9x12 mm, 5/8"

Recommended Retail Price €44.21
26.95 tax incl.
€22.27 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description:

  • Insert open ring spanner, rectangular connection 9x12 mm, 5/8"

Features:

  • The insert is secured to the torque spanner with a spring-loaded retractable pin
  • The range at 9 x 12 holders ranges from 3/8 to ¾ inch openings and from 9 to 96Nm
  • For sizes with * in the torque length, the torque setting must be calculated
  • Suitable for 7465, 74W9, 74P9, 74P14, IZO-D, TAW9 and TAWM9 spanners
Key features according to our expert
  • Ring spanner type: Open ring spanner
  • Type of drive profile: Twelve-point
  • Connection size: 9 x 12 mm
  • Connection profile: Outer rectangle
  • Drive profile size: 5/8"
Specifications / All features
  • Brand: BAHCO
  • EAN: 7314150368174
  • Supplier number: BAHCO 99-5/8
Ring spanner type
Open ring spanner
Type of drive profile
Twelve-point
Connection size
9 x 12 mm
Connection profile
Outer rectangle
Drive profile size
5/8"
Weight kg
0.060 kg
Diameter inch
5/8 in
Weight g
60 g
Working length mm (l)
17,5 mm
Length of square mm
12 mm
Head width mm (d)
30 mm
Total length mm (a)
43 mm
Length and width of square mm
9x12 mm
Length mm
45 mm
Opening mm (w)
46 mm
Max torque range nm
46 N·m
Width of square mm
9 mm
Width mm (h)
30 mm
