Product description:

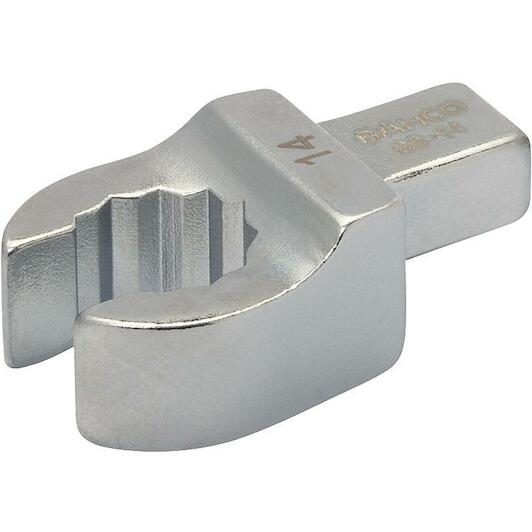

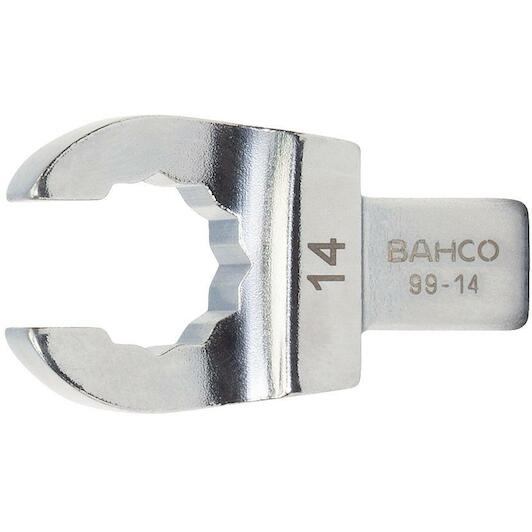

- Insert open ring spanner, rectangular connection 9x12 mm, 3/8"
Features:

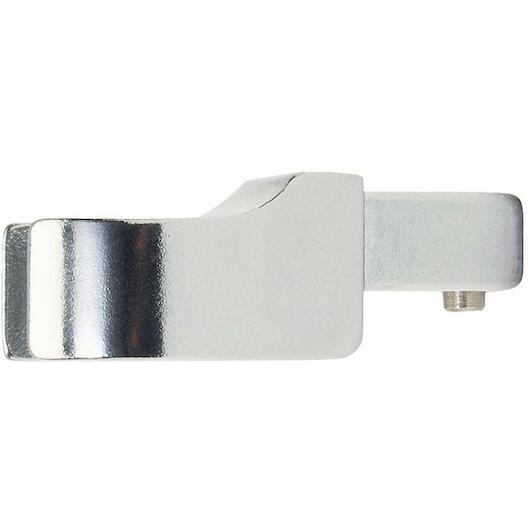

- The insert is secured to the torque spanner with a spring-loaded retractable pin
- The range at 9 x 12 holders ranges from 3/8 to ¾ inch openings and from 9 to 96Nm
- For sizes with * in the torque length, the torque setting must be calculated
- Suitable for 7465, 74W9, 74P9, 74P14, IZO-D, TAW9 and TAWM9 spanners
Key features according to our expert
-
Ring spanner type: Open ring spanner
-
Type of drive profile: Twelve-point
-
Connection size: 9 x 12 mm
-
Connection profile: Outer rectangle
-
Drive profile size: 3/8"
Specifications / All features
-
Brand:
BAHCO
-
08086481
-
EAN:
7314150368136
-
Supplier number:
BAHCO 99-3/8
- Ring spanner type
- Open ring spanner
- Type of drive profile
- Twelve-point
- Connection size
- 9 x 12 mm
- Connection profile
- Outer rectangle
- Drive profile size
- 3/8"
- Weight kg
- 0.063 kg
- Diameter inch
- 3/8 in
- Weight g
- 63 g
- Working length mm (l)
- 17,5 mm
- Length of square mm
- 12 mm
- Head width mm (d)
- 22 mm
- Total length mm (a)
- 40 mm
- Length and width of square mm
- 9x12 mm
- Length mm
- 40 mm
- Opening mm (w)
- 9 mm
- Max torque range nm
- 9 N·m
- Width of square mm
- 9 mm
- Width mm (h)
- 22 mm
