BAHCO 75R3-1000 mechanical click spanner with free hand placement and fixed ratchet head, 3/4", 300-1000Nm

Supplier number: BAHCO 75R3-1000 | EAN 7314150415229
Recommended Retail Price €2,285.90
1,213.20 tax incl.
€1,002.64 excl. VAT (incl. all environmental contributions)
On order: delivered from 19/10/2026

  • Ordered before 20:00 - delivered as of 19/10/2026
  • Free shipping
  • Delivery by DHL


€1,213.20
tax incl.

Product information

Key features according to our expert

  • Max. tightening torque: 1000 Nm
  • Drive profile size: 3/4"
  • VDE approved: No
  • With safety colour code 1000V: Not applicable
  • ESD: No
  • Display: Analogue
  • Scale division: 10 Nm
  • Min. tightening torque: 300 Nm

Product description:

  • Mechanically adjustable click torque spanner with free hand placement and fixed ratchet head

Features:

  • Not dependent on length, so can be used with or without the supplied extension handle (optional on the 650Nm)

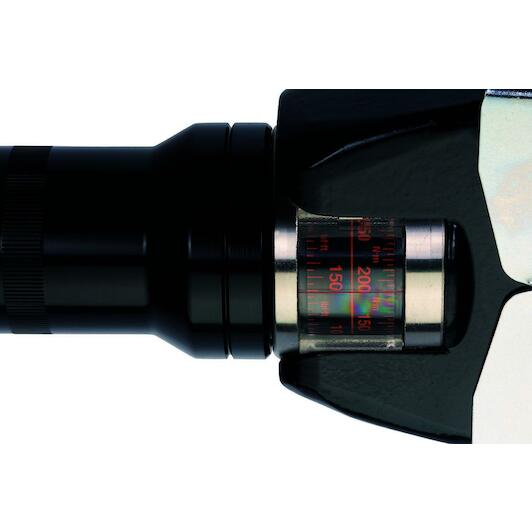

  • Large double scale inNm/ft.lb
  • Range of torque values ranges from 130 to 1500Nm/100 to 1100 ft.lb

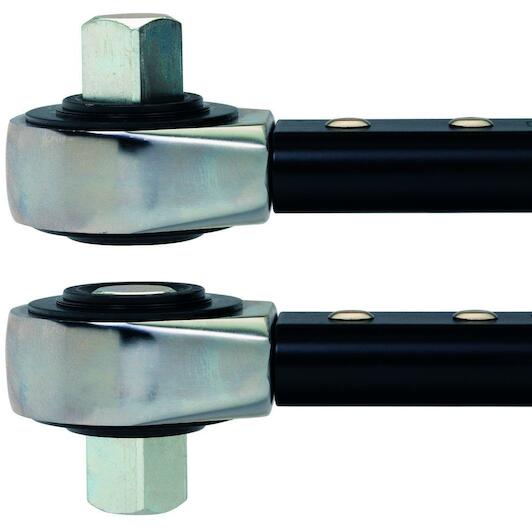

  • Can be used clockwise or anti-clockwise by flipping the ratchet's square connection
  • Accurate to ±3% of measured value, better than the requirements of ISO6789-1:2017
  • Exceptionally clear torque signal from unique mechanism
  • Plug-in ratchet heads can be used in either counterclockwise or clockwise direction
  • Extension handle significantly reduces user effort for high torque values
  • All in portable robust blow-moulded case
  • All keys come with manufacturer's declaration of conformity, traceable to international standards
  • ISO 6789
  • Made in the United Kingdom

All Features

Max. tightening torque
1000 Nm
Drive profile size
3/4"
Vde approved
No
With safety colour code 1000v
Not applicable
Esd
No
Display
Analogue
Scale division
10 Nm
Min. tightening torque
300 Nm
Weight kg
5.800 kg
Scale nm
10 N·m
Weight g
5800 g
Head width mm (d)
75 mm
Torque range nm
300-1000 N·m
Total length mm (a)
1245 mm
Square inch
3/4" in
Measuring range lb.ft
220-750 lbf·ft
Norm
ISO6789-2:2017
  • Brand BAHCO
  • EAN 7314150415229
  • Supplier number BAHCO 75R3-1000
