BAHCO

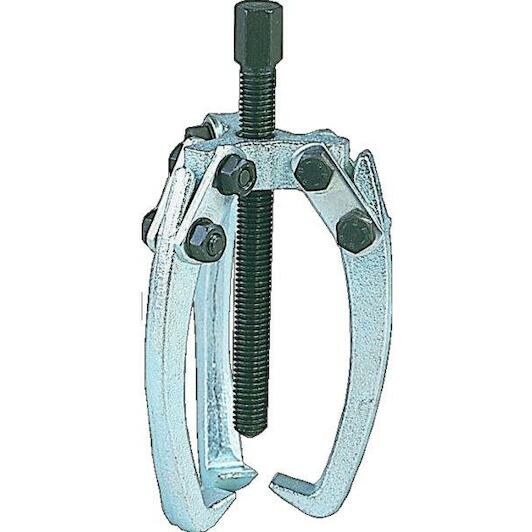

BAHCO 4543-20 trigger slightly galvanised with three arms 10-70 mm 74 mm

Recommended Retail Price €61.36
37.40 tax incl.
€30.91 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

Product description:

  • Extractor: 2 and 3 arms
  • Finish: Galvanised
  • Material: special steel
  • Handy puller for light duty work, such as on terminals, gears, ball bearings, pulleys etc
  • 4543-10 to -30 with 3 arms
  • 4543-1 to -3 with 2 arms
  • 4543/B: Spare body
  • 4543-12/B for 4543-1 and 4543-2
  • 4543-3/B for 4543-3
  • 4543-1020/B for 4543-10 and 4543-20
  • 4543-30/B for 4543-30
  • 4543K: Spare arm
  • 4543K110 for 4543-1 and 4543-10
  • 4543K220 for 4543-2 and 4543-20
  • 4543K330 for 4543-3 and 4543-30
  • 4543/S: Spare spindle
  • 4543-1/S for 4543-1 and 4543-10
  • 4543-2/S for 4543-2 and 4543-20
  • 4543-3/S for 4543-3 and 4543-30
Key features according to our expert
  • Max. width: 70 mm
  • Max. height: 65 mm
  • Hydraulical: No
Specifications / All features
Max. width
70 mm
Max. height
65 mm
Hydraulical
No
Weight g
260 g
Width mm (a)
10-70 mm
Width extractor mm
10-70 mm
Maximum loading capacity kn
13 kN
Extractor height mm
74 mm
Torque range nm
21 N·m
Hexagon size mm
10 mm
Arm length mm
74 mm
Maximum loading capacity to
1,3 to
Spare spindle type & size mm
M8x85 mm
