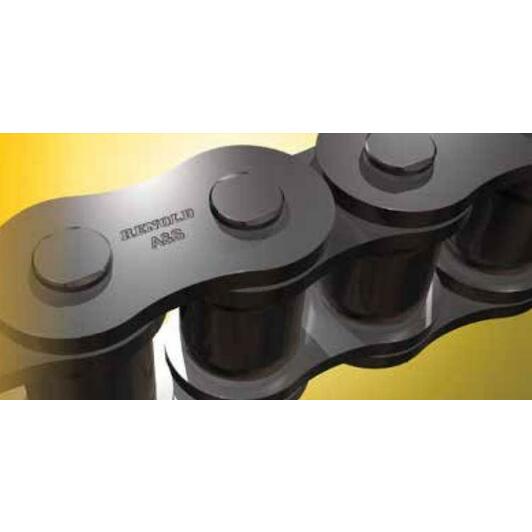

A&S AR40A2X10FT duplex chain 1/2" (40a-2)

Supplier number: A&S AR40A2X10FT | EAN 4042279004040
Recommended Retail Price €125.25
61.40 tax incl.
€50.74 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/10/2026
meter

The minimum purchase order quantity for the product is 3.

  • Ordered before 20:00 - delivered as of 26/10/2026
  • Free shipping
  • Delivery by DHL


€61.40
tax incl.

Product information

Key features according to our expert

  • Pitch: 1/2 inch; 12,7 mm
  • Weight (kg/m): 1,2 kg/m
  • Product line: Renold A&S
  • Type (ISO/ANSI): 40A-2
  • Height: 2,1
  • Inside width: 7,85 mm
  • Version (chain): Duplex
  • Breaking strength: 27800 N
  • Length (pin): 30,8 mm
  • Diameter (pin): 3,97 mm
  • Thickness (outer plate): 1,55 mm
  • Thickness (inner plate): 1,55 mm
  • Plate height: 11,2 mm
  • Diameter (roller): 7,92 mm

Product description:

  • The Renold A&S roller chain has long been known for its high quality, affordability, reliability and performance.
  • The chain has gained a strong reputation for its excellent wear resistance, high fatigue resistance and durability.
  • These factors have contributed to Renold A&S becoming the most widely used chain brand in Europe.
  • The Renold A&S chain is available with European (BS) and ANSI specifications and with a full range of standard M, K and extended bearing pin attachments.
  • The chain can even be supplied with a lubricant based on the customer's specific requirements.
  • Available in sizes with pitch ranging from 4 mm to 2.5 inches
  • Solid extruded bushing
  • Solid extruded roller
  • Plates with wider blades
  • Hardened and glass bead blasted blades
  • Comprehensive European (BS) and ANSI range
  • Wide range of fasteners available
  • Lubricant of choice to meet customer requirements

All Features

Pitch
1/2 inch; 12,7 mm
Weight (kg/m)
1,2 kg/m
Product line
Renold A&S
Type (iso/ansi)
40A-2
Height
2,1
Inside width
7,85 mm
Version (chain)
Duplex
Breaking strength
27800 N
Length (pin)
30,8 mm
Diameter (pin)
3,97 mm
Thickness (outer plate)
1,55 mm
Thickness (inner plate)
1,55 mm
Plate height
11,2 mm
Diameter (roller)
7,92 mm
  • Brand A&S
  • EAN 4042279004040
  • Supplier number A&S AR40A2X10FT
