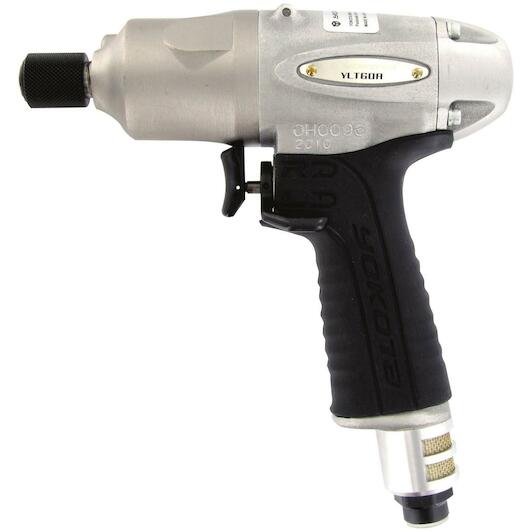

YOKOTA YLTX60A pneumatic impulse nutrunner 1/4" 6K stop

Show more features

Max. tightening torque

13 Nm

Hose diameter

6,5 mm

Speed

5300 rpm

Vibration level

1,4 m/s²

Weight (kg)

0,95 kg

Standard

EN ISO 11148-6

Max. air pressure

6,3 bar

Flow rate

5,5 l/s

Shape (handle)

Pistol

Adjustable torque range

6-13 Nm

Connection size (air)

1/4"

Noise level

72 dB(A)

Tool holder size

1/4"

Vibration uncertainty (m/s²)

1

Bolt capacity (mm)

6

Airconsumption (l/s)

5,5

Square drive / hexagon

1/4"

Airpress max. (mpa)

0,63

Mm b

22,5

Airconnection

PT 1/4"

Vibration standard

EN ISO 28927-2

Sound pressure (db(a))

72

Air consumption no load (l/s)

5,6

Rpm

5300

Safety standard

EN ISO 11148-6

Vibration value (m/s²)

< 2,5

Torque (nm)

6 - 13

Sound standard

ISO 15744

Product group

Impulse Wrenches

Mm a

164

Hosediameter (mm)

6,5

Sound uncertainty (db(a))

3
