yokota_yltx50a
YOKOTA

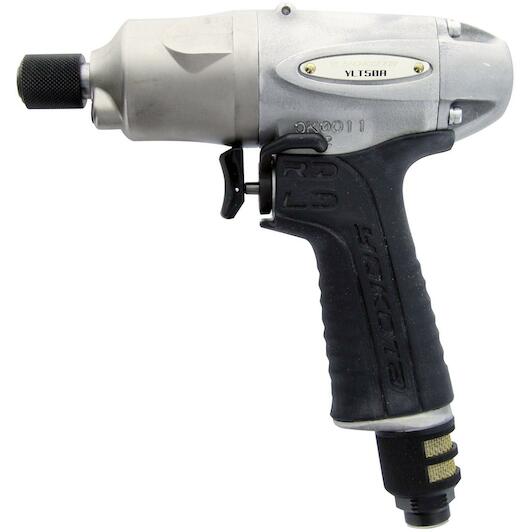

YOKOTA YLTX50A pneumatic impulse nutrunner 1/4" 6K stop

Recommended Retail Price €2,544.63
2,030.60 tax incl.
€1,678.18 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/08/2026
each

  • Ordered before 20:00 - delivered as of 22/08/2026
  • Free shipping
  • Delivery by DHL

Product description

YOKOTA impulse wrenches are widely used for tightening jobs in the assembly industry, where accurate torque tolerances are necessary. Impulse tools are light, powerful, small and very importantly, have no kick-back. Pistol model with double chamber airmotor and auto shut-off. No-lube airmotor.

Key features according to our expert
  • Max. tightening torque: 8 Nm
  • Flow rate: 4,2 l/s
  • Speed: 4300 rpm
  • Max. air pressure: 6,3 bar
  • Weight (kg): 0,95 kg
  • Standard: EN ISO 11148-6
  • Hose diameter: 6,5 mm
  • Vibration level: 1,1 m/s²
  • Noise level: 70 dB(A)
  • Tool holder size: 1/4"
  • Shape (handle): Pistol
  • Adjustable torque range: 4,5-8 Nm
  • Connection size (air): 1/4"
  • Straight head/Right-angle head: Straight head
Specifications / All features
  • Brand: YOKOTA
  • EAN: 8717981356195
  • Supplier number: YOKOTA YLTX50A
Max. tightening torque
8 Nm
Flow rate
4,2 l/s
Speed
4300 rpm
Max. air pressure
6,3 bar
Weight (kg)
0,95 kg
Standard
EN ISO 11148-6
Hose diameter
6,5 mm
Vibration level
1,1 m/s²
Noise level
70 dB(A)
Tool holder size
1/4"
Shape (handle)
Pistol
Adjustable torque range
4,5-8 Nm
Connection size (air)
1/4"
Straight head/right-angle head
Straight head
Bolt capacity (mm)
5
Airconsumption (l/s)
4,2
Square drive / hexagon
1/4"
Vibration uncertainty (m/s²)
1
Airpress max. (mpa)
0,63
Mm b
22,5
Airconnection
PT 1/4"
Vibration standard
EN ISO 28927-2
Sound pressure (db(a))
70
Air consumption no load (l/s)
4,6
Rpm
4300
Vibration value (m/s²)
< 2,5
Torque (nm)
4,5 - 8
Sound standard
ISO 15744
Product group
Impulse Wrenches
Mm a
164
Hosediameter (mm)
6,5
Safety standard
EN ISO 11148-6
Sound uncertainty (db(a))
3
