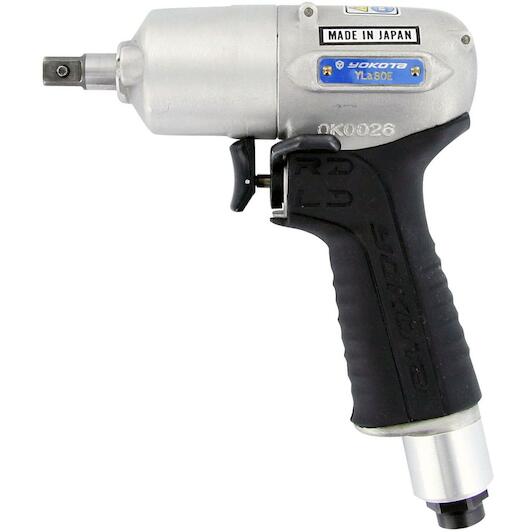

YOKOTA YLA80E pneumatic impulse nutrunner 3/8"

Supplier number: YOKOTA YLA80E | EAN 8717981038312
Recommended Retail Price €2,044.90
1,631.80 tax incl.
€1,348.60 excl. VAT (incl. all environmental contributions)
On order: delivered from 12/10/2026

  • Ordered before 20:00 - delivered as of 12/10/2026
  • Free shipping
  • Delivery by DHL


€1,631.80
tax incl.

Product information

Key features according to our expert

  • Min. tightening torque: 33 Nm
  • Tool holder size: 3/8"
  • Connection size (air): 1/4"
  • Speed: 7000 rpm
  • Shape (handle): Pistol
  • Orientation (head): Straight head
  • Max. tightening torque: 50 Nm

Product description

Yokota impulse wrenches are widely used for tightening jobs in the assembly industry, where accurate torque tolerances are necessary. Impulse tools are light, powerful, small and very importantly, have no kick-back. Pistol model with double chamber airmotor. Extremely low weight and adapted for use with non-lubricated air.

All Features

Min. tightening torque
33 Nm
Tool holder size
3/8"
Connection size (air)
1/4"
Speed
7000 rpm
Shape (handle)
Pistol
Orientation (head)
Straight head
Max. tightening torque
50 Nm
Mm b
22
Bolt capacity (mm)
8
Square drive / hexagon
3/8"
Vibration uncertainty (m/s²)
1
Airconsumption fullload (l/s)
5,8
Airconnection
PT 1/4"
Airpress max. (mpa)
0,63
Vibration standard
EN ISO 28927-2
Air consumption no load (l/s)
9
Sound pressure (db(a))
75
Sound uncertainty (db(a))
3
Rpm
7000
Product group
Impulse Wrenches
Vibration value (m/s²)
< 2,5
Torque (nm)
33 - 50
Sound standard
ISO 15744
Mm a
139
Hosediameter (mm)
6,5
Safety standard
EN ISO 11148-6
Weight (kg)
0,9
  • Brand YOKOTA
  • EAN 8717981038312
  • Supplier number YOKOTA YLA80E
