What is the maximum voltage measurable with the Xhander P75BKQ8?

You can measure both AC and DC voltage up to a maximum of 690V.

What types of measurements can you perform with this tester?

In addition to voltage, this digital tester measures resistance and frequency up to 400 Hz.

Can this device measure current?

No, this voltage tester is not equipped with a current clamp and does not measure current (amperage).

Which batteries are required to power this device?

The tester is powered by 2x LR03 AAA batteries.

Does this voltage tester feature a digital display?

Yes, this model features a digital display for clear reading of measurement values.

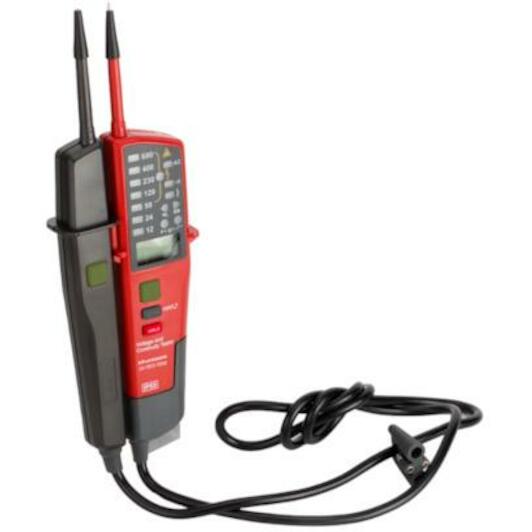

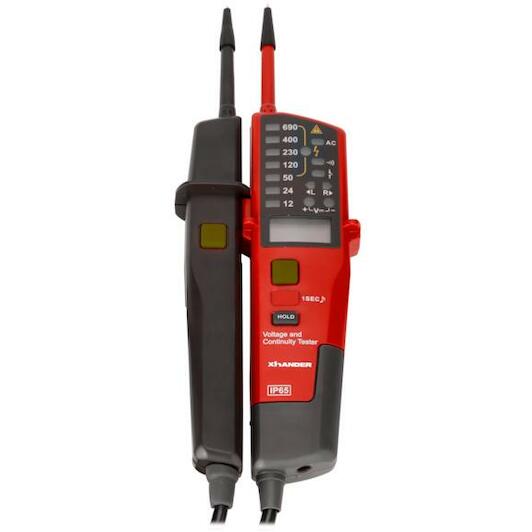

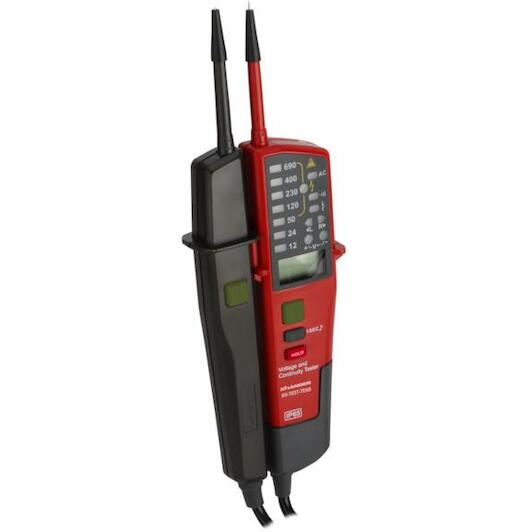

XHANDER 71272745 multifunction voltage tester 690V (2x LR03 AAA battery)

Name: XHANDER 71272745 multifunction voltage tester 690V (2x LR03 AAA battery)
Brand: XHANDER
SKU: 08122016
Price: 135.84 EUR
Availability: InStock

Supplier number: XHANDER 71272745 | EAN 3661578214014

135.84 tax incl.

€112.27 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 06/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Fast and dependable electrical diagnostics

Practical benefits

Wide range to 690V: You can safely test AC and DC circuits up to 690V across varied installations.
Clear digital screen readout: The digital display presents your values instantly, helping you diagnose electrical faults quickly and accurately.
Complete circuit testing capability: This multifunctional voltage tester allows you to measure electrical resistance as well as frequencies up to 400Hz.

In a nutshell

The right choise for

With the Xhander P75BKQ8 multifunctional voltage tester, you carry out fast and dependable electrical diagnostics. Whether you are working on distribution boards, carrying out maintenance, or troubleshooting electrical circuits, you can easily measure ac and DC voltages up to 690V. The clear digital display provides instant readings for accurate fault-finding. In addition to voltage, this compact instrument also allows you to test resistance and frequencies up to 400Hz. Powered by 2x LR03 aaa batteries, it delivers the practical versatility you need to work safely and efficiently.

Product information FAQ

€135.84

In stock - tax incl.

Key features according to our expert

Max. voltage AC/DC: 690 V
Measurement resistance: Yes
Digital: Yes
With current clamp: No
Measurement frequency: Yes
Current measurement: No
Measurement voltage: Yes
Max. frequency: 400 Hz

Product description

VAT included with digital display.
Voltage detector, it is also a bipolar voltage detector with LED display.
The product's built-in self-test is ideal for quickly checking that the device is working correctly.
It measures voltages as low as 6V and checks phase rotation order.
The audible indicator makes continuity tests easier.
This voltage tester is equipped with a light, allowing you to work even in dark places.
Technical properties of the voltage tester:
Voltage range: 6-690 V AC/DC
Frequency: 40-400 Hz
Measurement category: Cat III, 690 V Cat IV, 600 V
Centre distance: 19 mm standardised (one-handed use)
Power supply: 2 AAA (LR03) batteries included)
Protection: IP65 (splash and dust proof)
LED tolerance: EN 61243-V
LED and LCD display of rated voltage: 6 / 12 / 24 / 50 / 120 / 230 / 400 / 690 V
Has a beeper to monitor continuity tests
Ability to perform unipolar and phase tests
Polarity indications are indicated on the measuring area
Side display for hazardous situationsbr>Side display for hazardous voltage and continuity
Automatic on/off control to save battery power
Data storage
AAA (LR03) x 2 batteries included.
Lifetime warranty

All Features

Max. voltage ac/dc: 690 V
Measurement resistance: Yes
Digital: Yes
With current clamp: No
Measurement frequency: Yes
Current measurement: No
Measurement voltage: Yes
Max. frequency: 400 Hz
Standards: CE
Supplied with accessories: no
Type of multimeter: manual
Resistance: 0 ohm
Tension: 6 to 690 V
Accuracy: NC
Amps: 0 Ah

Brand XHANDER
08122016
EAN 3661578214014
Supplier number XHANDER 71272745

Frequently asked questions about this product

Answered by specialists

What is the maximum voltage measurable with the Xhander P75BKQ8?: You can measure both AC and DC voltage up to a maximum of 690V.
What types of measurements can you perform with this tester?: In addition to voltage, this digital tester measures resistance and frequency up to 400 Hz.
Can this device measure current?: No, this voltage tester is not equipped with a current clamp and does not measure current (amperage).
Which batteries are required to power this device?: The tester is powered by 2x LR03 AAA batteries.
Does this voltage tester feature a digital display?: Yes, this model features a digital display for clear reading of measurement values.
