Effortless hexagonal crimping for professional wiring
- Automatic crimp pressure adjustment: You crimp ferrules from 0.08 to 16 mm² reliably without adjusting manual pressure settings.

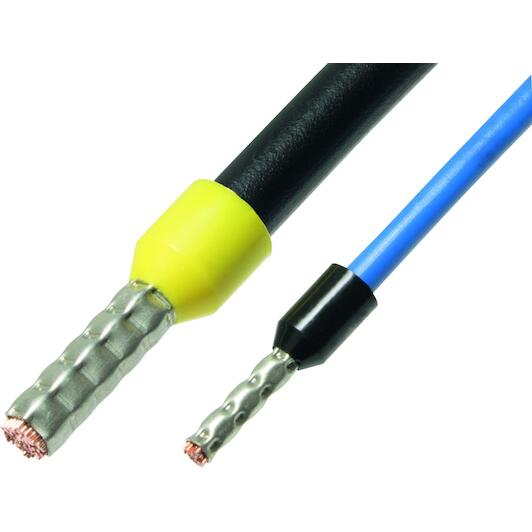

- Prevents small sleeve snagging: The symmetrical hex crimp shapes ferrules evenly so they do not catch in terminal blocks.
- Controlled work with Wiha: An integrated feeding guide protects sleeve collars while the manual release lever ensures total process control.

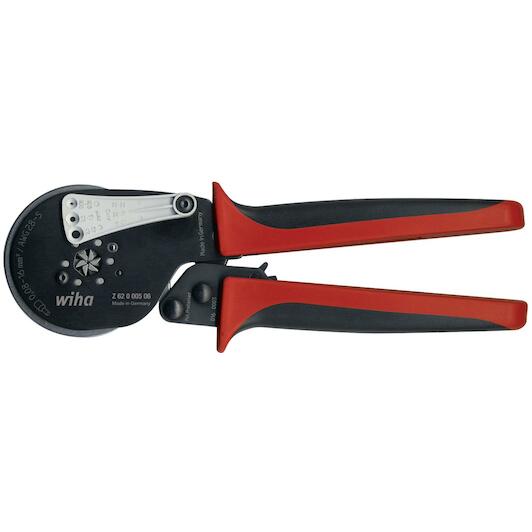

With the Wiha Z62000506SB automatic crimping tool, you connect control panels and terminal blocks quickly and reliably without manual adjustments. The tool automatically adapts its crimping force across a wide range from 0.08 to 16 mm² and handles twin ferrules up to 2 x 10 mm². Its hexagonal crimp creates a smooth, uniform profile that prevents sleeves from snagging in tight terminal connections. The integrated feeding guide protects the insulating collar during insertion, and the manual release lever ensures total control by letting you interrupt the crimp cycle whenever needed.
Product description
- Makes handling easier: Thanks to hexagonal crimping, small wire-end sleeves no longer get caught.
- Lowers your costs: An integrated lever enables users to interrupt the crimping process at any time to protect the pliers.
- Increases your safety: Safe work through feed aid prevents crimping the plastic cover of wire-end sleeves.
- Increases your efficiency: Covers a large application area from 0.08 - 16 mm².
- Increases your efficiency: Pressing power automatically adjusted to the wire end sleeve dimensions.
- Product dimensions: 330 x 135 x 25 mm (LxWxD)
- Application: For processing of wire-end sleeves with and without isolating collar according to DIN 46228, EN 50027.
- Large crimping range from 0,08 - 16,00 mm² / 2 x 0,25 - 2 x 10,00 mm²
- High quality crimping thanks to automatically adjusted pressure force
- Cancel manually by emergency unlocking
- Feeding aid protects the sleeve
- Conventional use of crimping pliers poses a risk that wire-end sleeves will snag in the pliers or be crimped incorrectly. These automatic crimping pliers with hex crimping can eliminate unnecessary cable and wire-end sleeve waste. With a wide crimping range between 0.08 and 16 mm², they conveniently combine two crimping pliers in a single tool. The crimping pliers thus cover most applications. The hexagonal crimping prevents small wire-end sleeves from snagging. The feed also provides process safety by preventing the plastic cover from being crimped. Thanks to its automated crimp function, the pliers are suitable for empty sleeves (up to 16 mm²) and twin sleeves (up to 10 mm²). The elastic, impact-cushioning plastic handles guarantee comfortable, fatigue-free work. An integrated lever ensures that the crimping process can be stopped manually at any time.
