What is the adjustable torque range of this torque screwdriver?

The torque is continuously adjustable from 0.04 Nm to 0.46 Nm using the included Torque-Setter adjustment tool.

Does this tool provide electrostatic discharge protection?

Yes, the dissipative handle is ESD-safe according to IEC 61340-5-1 with a surface resistance of 10^6 to 10^9 ohms.

Is this screwdriver VDE-certified for live electrical work?

No, this torque screwdriver is not VDE-tested and is not intended for use on live electrical components.

Which drive and blades are compatible with this handle?

The handle features a 4 mm hexagon drive and is compatible with Wiha series 2859 interchangeable blades and bit holders.

How do you know when the set torque limit is reached?

The mechanism emits a clearly audible and perceptible click signal upon reaching the preset torque value.

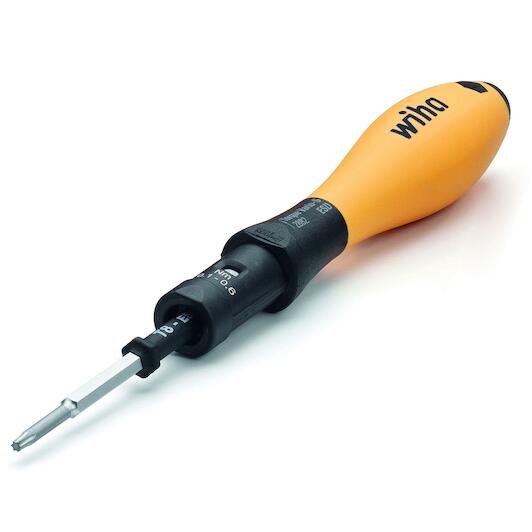

WIHA 28824045 TorqueVario-S ESD torque screwdriver with variable 0.04-0.46 Nm - 36851

Name: WIHA 28824045 TorqueVario-S ESD torque screwdriver with variable 0.04-0.46 Nm - 36851
Brand: WIHA
SKU: 08073722
Price: 129.8 EUR
Availability: PreOrder

Supplier number: WIHA 36851 | EAN 4010995368517

129.80 tax incl.

€107.27 excl. VAT (incl. all environmental contributions)

On order: delivered from 17/10/2026

Ordered before 20:00 - delivered as of 17/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Reliable precision fastening with the Wiha torque screwdriver

Practical benefits

Safe electrostatic discharge protection: The dissipative handle diverts static charge safely away, ensuring you prevent irreversible damage when working on sensitive electronic components.
Continuous torque adjustment range: Spanning 0.04 to 0.46 Nm, the setting mechanism allows you to apply exact fastening forces across delicate mechanical assemblies.
Distinct tactile click feedback: A clear audible and physical click signals when you reach the preset value, preventing overtightening and material damage.

In a nutshell

The right choise for

With the Wiha TorqueVario-S esd torque screwdriver, you perform delicate fastening tasks on sensitive electronic components with absolute precision. The electrostatic dissipative handle safely discharges static energy in compliance with iec 61340-5-1, protecting delicate circuit boards from damage. Using the included Torque-Setter adjustment tool, you can set the torque continuously from 0.04 to 0.46 Nm for exact fastening control. a distinct tactile and audible click signals when the preset limit is reached, preventing overtightening and stripped micro-threads. The 4 mm hexagon drive pairs seamlessly with Wiha series 2859 interchangeable blades, giving you full control over fine mechanical assembly.

Product information FAQ

€129.80

tax incl.

Key features according to our expert

Min. tightening torque: 0,004 Nm
VDE approved: No
ESD: Yes
Max. tightening torque: 0,46 Nm
Product Range: Wiha TorqueVario

Product description

Meets your requirements: Variably adjustable torque covers a wide range of applications.
Increases your efficiency: The correct torque protects material from damage and means no follow-up work.
Protects your health: With the patented SoftFinish handle design, ensuring work is kind to hands and muscles. Recommended by doctors and therapists at German Campaign for Healthier Backs.
Lowers your costs: Electrostatically conductive tools protect electronic components from damage.
Product dimensions: 195 x 35 x 35 mm (LxWxD)

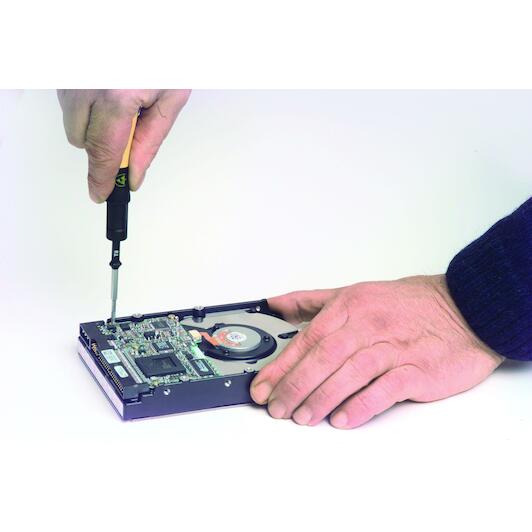

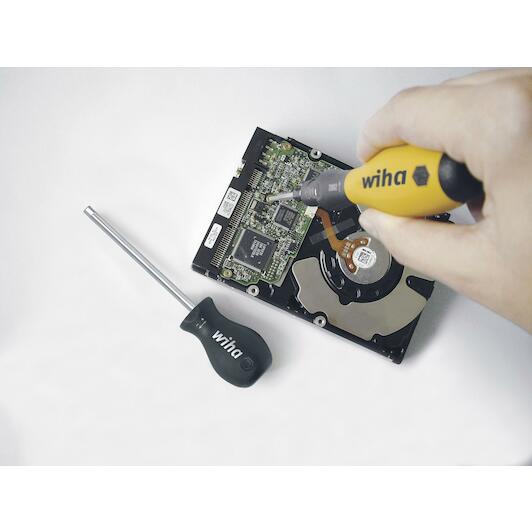

Application: For controlled fastening at a specific torque on components susceptible to electrostatic discharge.
Extra: Incl. works inspection protocol.
Supplementary information: Precision in range of 0.1-0.46 Nm.
Accuracy: ±6%, tracing to national standards (see table for other tolerances).
Handle: Torque infinitely adjustable with Torque-Setter setting tool (also supplied).
Handle: Ergonomic multi-component handle, made of ESD-safe dissipative material.
Handle: Handle sizes proportioned to optimise torque setting.
Handle: Audible and perceptible click when the pre-set torque has been attained.
Handle: Surface resistance 10^6 - 10^9 ohms.
Handle: Compatible with all blades of the 2859.
Standards: IEC 61340-5-1.

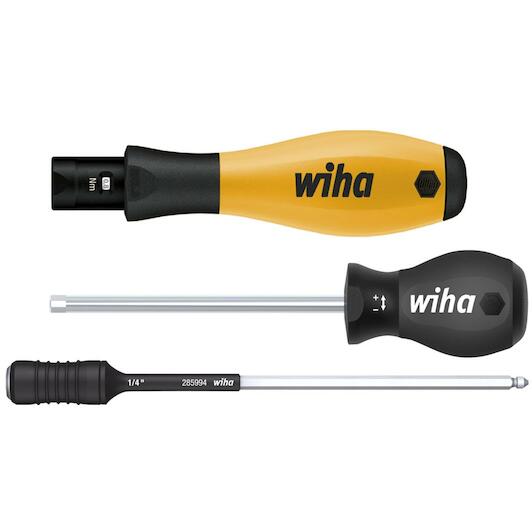

Users risk damaging electronic components irreparably when working on them. Such problems become a thing of the past with the TorqueVario-S ESD torque screwdriver set. The ESD torque screwdriver is manufactured in line with the IEC 61340-5-1 international standard and thus guarantees maximum protection for electronic components. The dissipative tool handle has a surface resistance between 10^6 - 10^9 ohm and safely channels electrostatic energy away in a controlled fashion. The torque screwdriver also ensures controlled screw tightening. Thanks to its integrated numeric scale and the supplied adjusting tool, variable torque settings can be made, therefore covering a wide application field. A clearly audible and tactile signal is emitted when triggering the set torque value, guaranteeing process-safe work, protecting material and eliminating follow-up work. With a release accuracy of +/- 6%, the torque tool complies with EN ISO 6789 requirements. The set includes a bit holder for 1/4" bits. The ESD torque screwdriver is also compatible with 4 mm Wiha Torque interchangeable blades (series 2859). All tools in the set are safely stored neatly away in a robust, clearly organised box.
DIN EN ISO 6789.

All Features

Min. tightening torque: 0,004 Nm
Vde approved: No
Esd: Yes
Max. tightening torque: 0,46 Nm
Torque range max (nm): 0.46 Nm
Tolerance (%): 10 %
Handle length (mm): 127 mm
Self service - packing: No
Handle diameter (mm): 23 mm
With battery / rechargeable battery: No
Tool for electrics: No
Torque range min (nm): 0.04 Nm
Torque range min - max (nm): 0.04 - 0.46
Hexagon head (mm): 4 mm
Esd article: Yes
Product range: Wiha TorqueVario

Brand WIHA
08073722
EAN 4010995368517
Supplier number WIHA 36851

Frequently asked questions about this product

Answered by specialists

What is the adjustable torque range of this torque screwdriver?: The torque is continuously adjustable from 0.04 Nm to 0.46 Nm using the included Torque-Setter adjustment tool.
Does this tool provide electrostatic discharge protection?: Yes, the dissipative handle is ESD-safe according to IEC 61340-5-1 with a surface resistance of 10^6 to 10^9 ohms.
Is this screwdriver VDE-certified for live electrical work?: No, this torque screwdriver is not VDE-tested and is not intended for use on live electrical components.
Which drive and blades are compatible with this handle?: The handle features a 4 mm hexagon drive and is compatible with Wiha series 2859 interchangeable blades and bit holders.
How do you know when the set torque limit is reached?: The mechanism emits a clearly audible and perceptible click signal upon reaching the preset torque value.
