Versatile screwdriving with the Wera Tool-Check Modular Set 1
- Modular and compact storage: You can configure and connect individual tool modules to suit your specific workflow using the included adapters.
- Precise for micro fasteners: The micro bit holder and twenty micro bits allow you to perform delicate, precision screwdriving tasks with ease.
- Ready for varied fastening: With a compact bit ratchet, sockets, standard bits, and hex keys, you handle manual or power-tool jobs efficiently.
With the 50-piece Wera Tool-Check Modular Set 1, you always have the right tool at hand for standard and precision screwdriving tasks. This compact set combines 1/4" bits, Zyklop sockets, an 8011 Zyklop Mini 4 bit ratchet, and L-keys with a Kraftform Micro 1014 bitholding handle and twenty micro bits. Using the included rigid adapter and flexible hinge, you easily connect the modules into one tailored, portable unit. It gives you the speed, control, and precision needed to tackle on-site service jobs or tight-space assemblies without carrying heavy equipment.
Scope of delivery
- Tool-Check Modular Set 1, 50 pieces
- 1x Tool-Check Modular 1, 21 pieces
- 1x 815/1 Bitholding screwdriver: 1/4" x 78 mm
- 1x 8011 Zyklop Mini 4 Bit ratchet, 1/4": 1/4" x 50 mm
- 1x 870/1 Adaptor: 1/4" x 25 mm
- 1x 899/4/1 Universal Bit Holder: 1/4" x 50 mm
- 1x 851/1 BTZ bits: PH 1 x 25 mm
- 1x 851/4 BTZ bits: PH 2 x 50 mm
- 1x 855/1 BTZ bits: PZ 1 x 25 mm
- 1x 855/4 BTZ bits: PZ 2 x 50 mm
- 2x 867/1 BTZ TORX® bits: TX 10x25 mm, TX 15x25 mm
- 2x 867/4 BTZ TORX® bits: TX 20x50 mm, TX 25x50 mm
- 1x 800/4 BTZ bits: 0.8 x 5.5 x 50 mm
- 4x 840/1 BTZ bits: 3x25 mm, 4x25 mm, 5x25 mm, 6x25 mm
- 4x 8790 HMA Zyklop 1/4" socket: 7x23 mm, 8x23 mm, 10x23 mm, 13x23 mm
- 1x Tool-Check Modular L-keys Hex-Plus 1, 7 pieces
- 7x 950 L-key, metric, chrome-plated: 1.5x45 mm, 2x50 mm, 2.5x56 mm, 3x63 mm, 4x70 mm, 5x80 mm, 6x90 mm
- 1x Tool-Check Modular Micro 1, 21 pieces
- 1x 1014 Kraftform Micro Bitholding screwdriver: 4 x 80 mm
- 4x 851/0 Micro bits for Phillips screws: PH 000x30 mm, PH 00x30 mm, PH 0x30 mm, PH 1x30 mm
- 2x 855/0 Micro bits suitable for Pozidriv screws: PZ 0x30 mm, PZ 1x30 mm
- 6x 867/0 Micro bits for TORX® socket screws: TX 3x30 mm, TX 4x30 mm, TX 5x30 mm, TX 6x30 mm, TX 8x30 mm, TX 10x30 mm
- 5x 840/0 Hex-Plus Micro bits for hexagonal socket head screws: 0.9x30 mm, 1.3x30 mm, 1.5x30 mm, 2x30 mm, 2.5x30 mm
- 3x 800/0 Micro bits for slotted screws: 0.3x1.5x30 mm, 0.40x2.5x30 mm, 0.50x3x30 mm
- 1x 9550 Hinge for Tool-Check Modular, 67.5 x 91 x 22 mm
- 1x 9549 Adapter for Tool-Check Modular, 10.5 x 47 x 16.5 mm
Product description

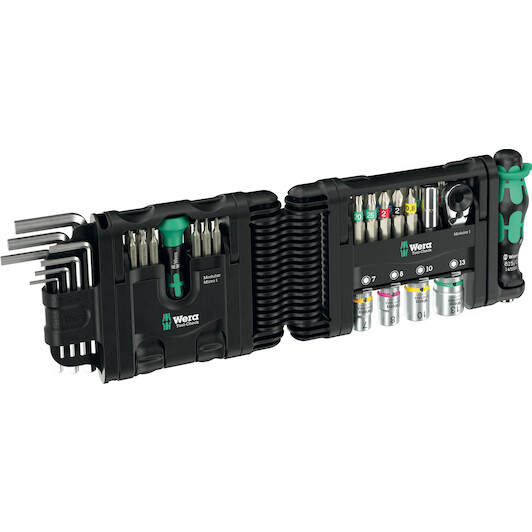

Very compact tool set: Tool-Check Modular Set 1. Includes: one Tool-Check Modular 1, one Tool-Check Modular Micro 1, one Tool-Check Modular L-key Hex-Plus 1, one adapter 9549 and one flexible hinge 9550 (adapter and hinge for connecting Tool-Check Modular products).
- Tool-Check Modular: individual combination of different Tool-Check Modular components
- Includes: one Tool-Check Modular 1, one Tool-Check Modular Micro 1, one Tool-Check Modular L-key Hex-Plus 1, one adapter 9549 and one flexible hinge 9550 (adapter and hinge for connecting Tool-Check Modular products)
- Tool-Check Modular 1: 21-piece tool set for manual and machine-operated screwdriving
- Tool-Check Modular Micro 1: 21-piece tool set for precision mechanical couplings
- Tool-Check Modular L-keys Hex-Plus 1: 7-piece L-key set for hexagonal socket screws (metric)
Features and benefits

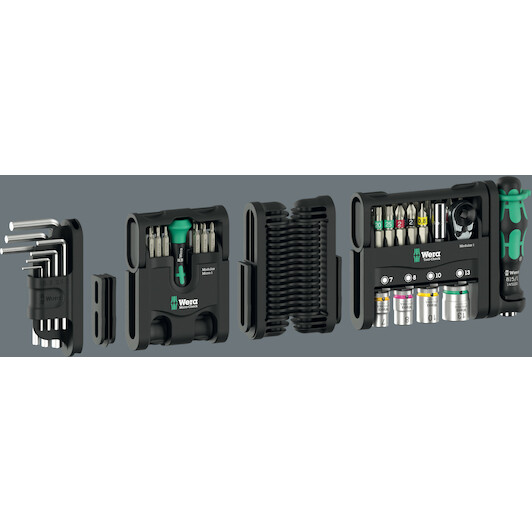

- The Tool-Check Modular system offers the possibility of combining Tool-Check Modular products in a super-compact manner depending on requirements. All you need is the rigid adapter 9549 and the flexible hinge 9550, both included in the set. The Tool-Check Modular products can be combined, exchanged or expanded at any time.

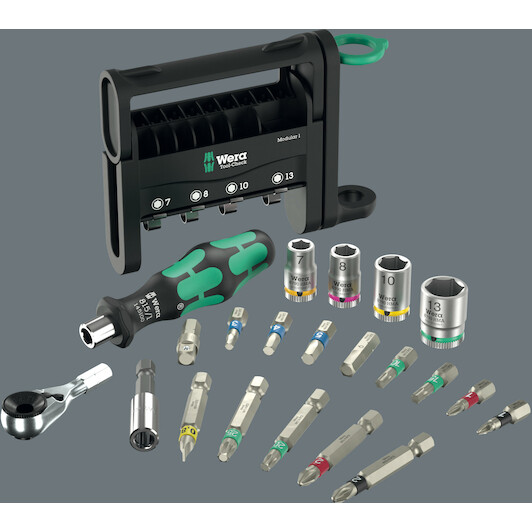

- 21-piece tool set. With bitholding screwdriver for 1/4" hex drive bits, bit ratchet for 1/4" hex drive bits, bit holder for mechanical screwdriving, 13 bits, adapter 870/1 (1/4" external hexagon to 1/4" external square head) for 1/4" sockets, 1/4" Zyklop 8790 HMA sockets.

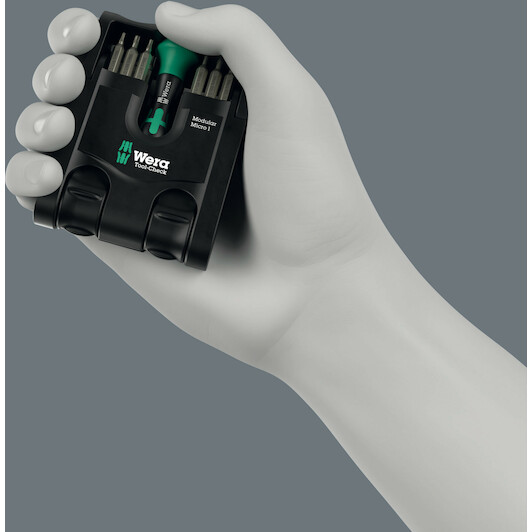

- 22-piece tool set (Kraftform Micro 1014 bitholding screwdriver, bits with 4 mm external hexagon drive). Very compact storage in the Tool-Check Modular.

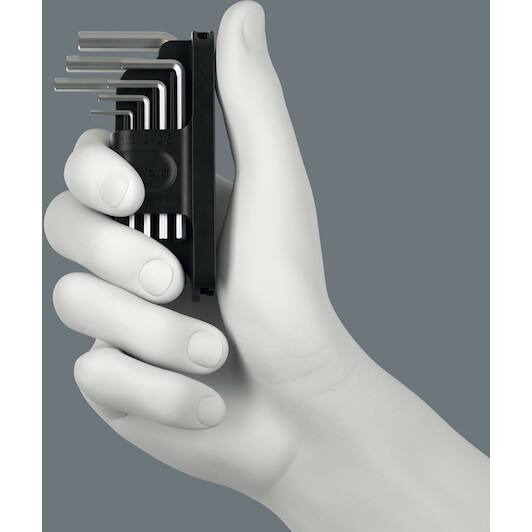

- 7-piece L-key set. Very compact storage in the Tool-Check Modular.

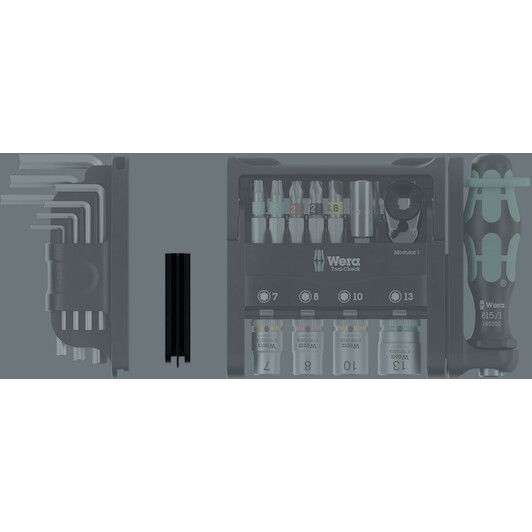

- Compact connection of two Tool-Check Modular products with the rigid connector 9549.

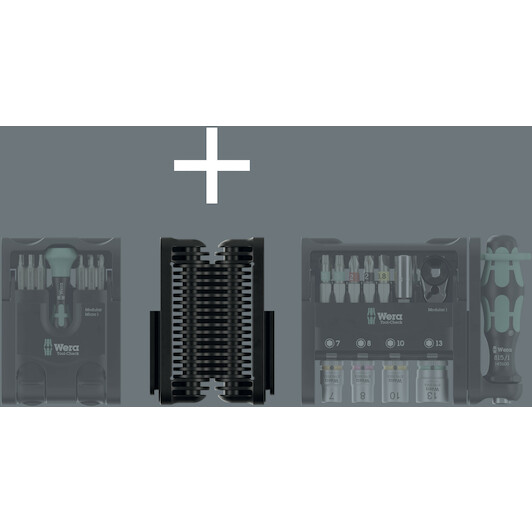

- Flexible and compact connection of two Tool-Check Modular products with the connector 9550.

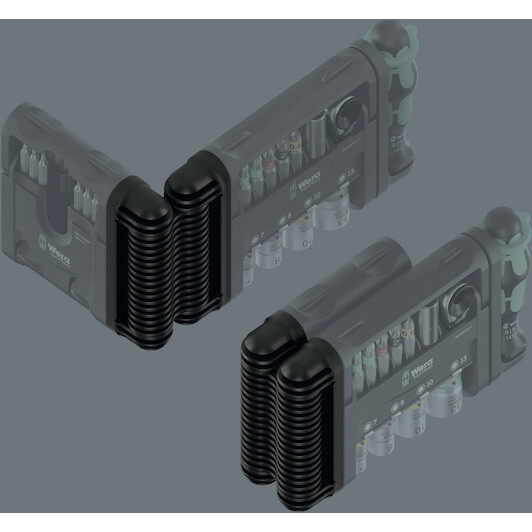

- The hinge 9550 allows compact folding up of two Tool-Check Modular products.
