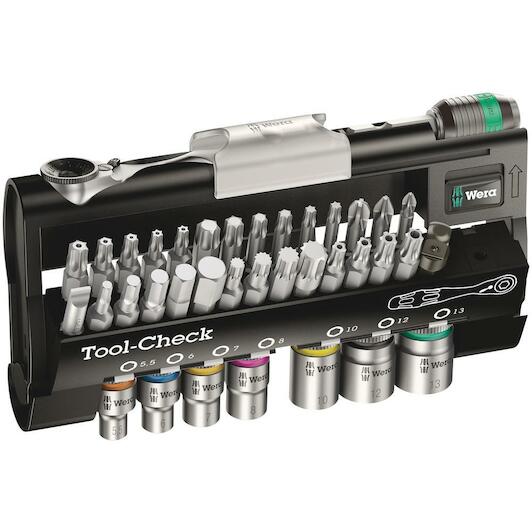

WERA TOOL-CHECK AUTOMOTIVE 1 ratchet bit and socket set 38-piece - 05200995001

Scope of delivery

• Tool-Check Automotive 1, 38 pieces
• 1x 8001 A Bit Ratchet 1/4": 1/4" x 87 mm
• 1x 870/1 Adaptor: 1/4" x 25 mm
• 1x 889/4/1 K Rapidaptor Universal Bit Holder: 1/4" x 50 mm
• 3x 851/1 TZ bits: PH 1x25 mm, PH 2x25 mm, PH 3x25 mm

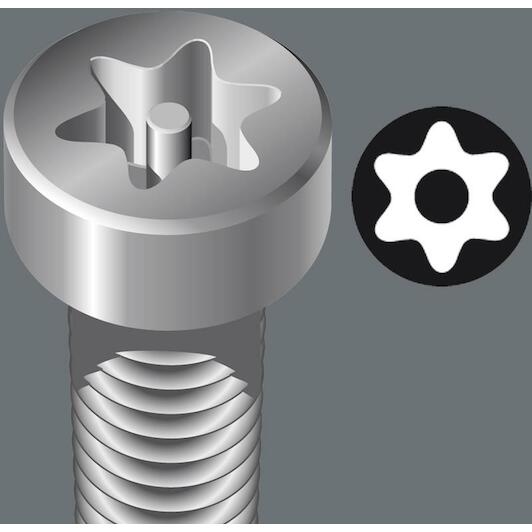

• 6x 867/1 TZ TORX® bits: TX 10x25 mm, TX 15x25 mm, TX 20x25 mm, TX 25x25 mm, TX 30x25 mm, TX 40x25 mm
• 5x 867/1 Z TORX® BO bits with bore hole: TX 10x25 mm, TX 15x25 mm, TX 20x25 mm, TX 25x25 mm, TX 30x25 mm
• 1x 800/1 TZ bits: 1 x 5.5 x 25 mm
• 5x 840/1 Z bits: 3x25 mm, 4x25 mm, 5x25 mm, 6x25 mm, 8x25 mm
• 4x 860/1 XZN Multi-point bits: M 4x25 mm, M 5x25 mm, M 6x25 mm, M 8x25 mm
• 4x 873/1 Five Lobe bits with bore hole: 20x25 mm, 25x25 mm, 27x25 mm, 30x25 mm

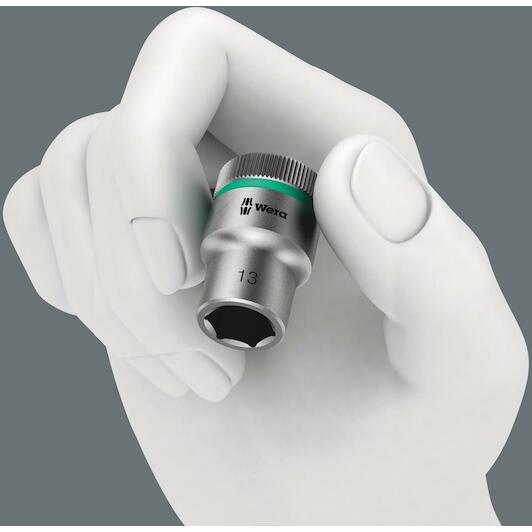

• 7x 8790 HMA Zyklop 1/4" socket: 5.5x23 mm, 6x23 mm, 7x23 mm, 8x23 mm, 10x23 mm, 12x23 mm, 13x23 mm

Product description

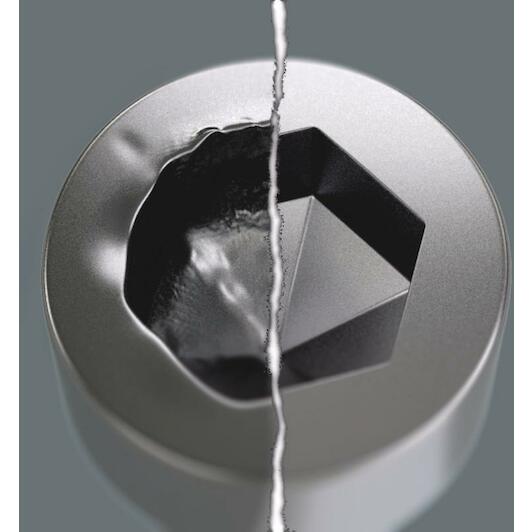

Ratchet, bits and sockets in a minimum of space - as compact as it gets. Simple operation, even with just one hand, in confined working spaces. Drop-forged, full-steel design and fine-pitched mechanism with 60 teeth that allows a small return angle of 6° for precise working. Easy left/right switchover. Ergonomically designed ratchet head and lever. Suitable for 1/4" bit and socket take-up. The use of 1/4" sockets is also possible with the Wera adaptor 870/1. Tough viscous bits for universal use. Manual and power tool socket insert (ISO 2725-Part 3) by Wera allows applications both in manual as well as power tools. Take it easy Tool Finder with colour coding according to size - for simple and rapid accessing of the required tool. Featuring a good grip to allow easy pick-up even with oily hands. Ball stop groove, for hex head bolts and nuts; chrome vanadium steel, matt chrome-plated.

• 1/4" bit ratchet, tough viscous bits, Rapidaptor holder, adaptor and 1/4" sockets
• Ideal for working in confined spaces
• Tough viscous bits for universal use

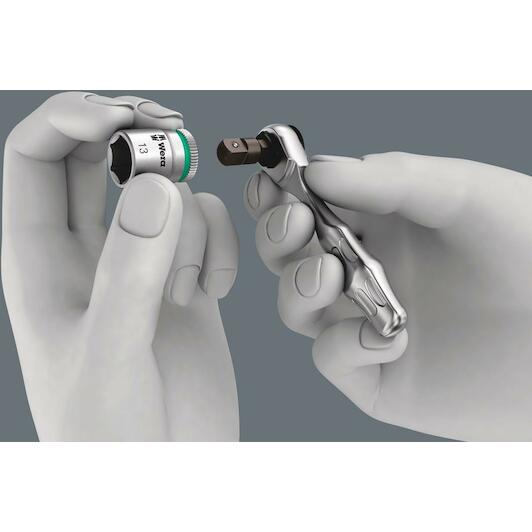

• Use of 1/4" sockets also possible with the Wera adaptor 870/1
• Take it easy tool finder: colour coding according to profile and size

Features and benefits

• Zyklop Mini
• For all difficult-to-access applications.
• The fine tooth mechanism, with its 60 teeth, allows a small return angle of only 6° - ideal for precision work.
• Simple switching between left/right operations.
• High working speeds can be attained with the Zyklop Mini bit ratchet. The thumb wheel is important, enabling more rapid screwdriving, and the lever of the Zyklop Mini only needs to be used for the final tightening of the screw.
• Its slim design makes it ideal for all particularly confined working situations.

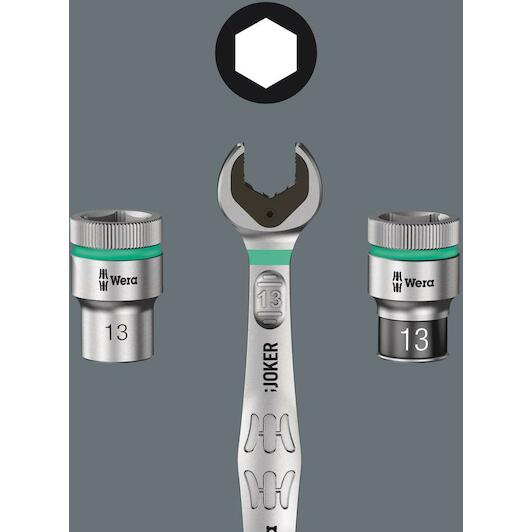

• Take it easy tool finder system - with profile and size colour-coding for quick and easy tool selection. Colour-coded system for hexagon drive screws (L-Keys, Zyklop bit sockets), external hex drive screws and nuts (Joker wrenches, Zyklop sockets and Zyklop bit sockets with holding function), and TORX® drive screws (L-Keys, Zyklop bit sockets).
• The Zyklop Mini 1 can withstand a torque up to 65 Nm. That is far more power than can normally be transferred to such a small tool.
