Scope of delivery
- Kraftform Kompakt Stubby magazine RA 1, 6 pieces

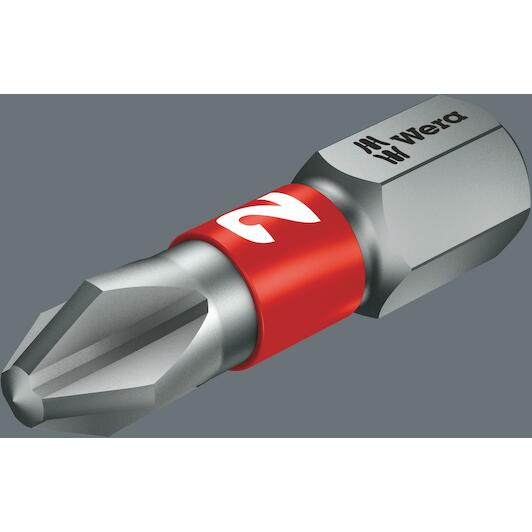

- 2x 851/1 BTZ bits: PH 1x25 mm, PH 2x25 mm
- 3x 867/1 BTZ TORX® bits: TX 15x25 mm, TX 20x25 mm, TX 25x25 mm
- 1x 800/1 BTZ bits: 0.8 x 5.5 x 25 mm
Product description

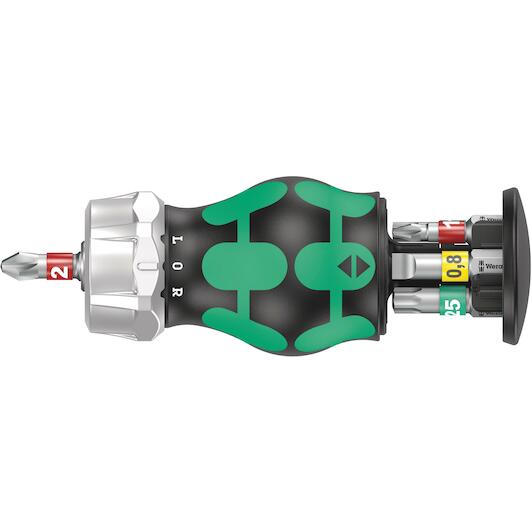

Particularly small bitholding screwdriver with extremely short bit mounting for hard to reach areas. With ratchet functionality and fine toothing for a low return angle. Easy-to-operate reversible ring (right, fixed, left). Includes 6 tough, universal bits, which are located in a magazine in the handle. The strong permanent magnet in the bit mounting ensures secure holding of the bit. The 2-component Kraftform handle with the practical combination of hard and soft zones allows for a firm grip and precise working. Take it easy tool finder: With size stamping and colour coding by output to help you find the required bit easily.
- Short, compact Stubby shape for working in tight installation spaces, with 6 bits in the integrated magazine
- Ergonomic 2-component Kraftform handle for precise work
- Ratchet functionality with fine toothing for a low return angle and reversible ring (right, fixed, left)
- Captive and swivelling bit magazine for easy removal and safe storage of bits
- Take it easy tool finder: colour coding according to profile and size
Application
- Suitable for bits with 1/4" external hexagon drive as per DIN ISO 1173-C 6.3 and Wera connection series 1
Design
- Ratchet, fine toothing for a low return angle, reversible ring (right, fixed, left); 1/4" hexagonal socket mounting, magnetic; 6 BiTorsion bits for long durability, tough, for universal use. Take it easy tool finder: With size stamping and colour coding by tip to help you find the required bit easily.
Handle
- Kraftform Stubby with anti-roll protection, multi-component, integrated magazine
Features and benefits

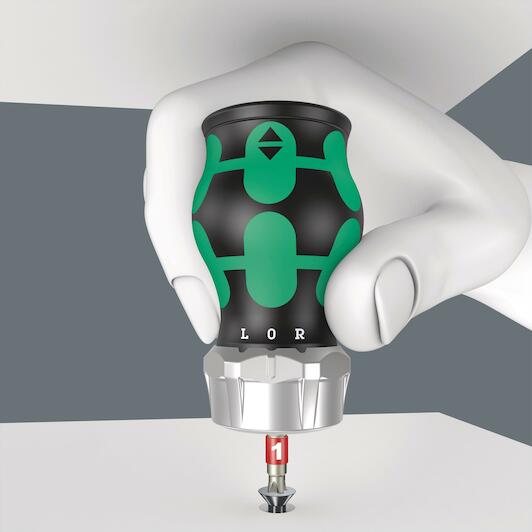

- With its compact handle shape and the short blade, the Kraftform Stubbies are particularly suitable for working in confined screwdriving situations.
- The handle can be opened and thus gives access to the six bits contained in the magazine.
- The swivelling bit magazine allows for the bits to be removed easily in almost any situation and cannot be lost. The bits are safely stored.
- The ratchet mechanism is fine-toothed for a low return angle. The screwdriving directions right/fixed/left can be set with the reversible ring. The magnetic bit mounting is suitable for bits with 1/4" external hexagon drive as per DIN ISO 1173-C 6.3 and Wera connection series 1
- With BiTorsion zone to cushion peak loads.
- Take it easy tool finder with colour coding according to profiles and size stamp - for simple and rapid accessing of the required tool.
