WERA Kraftform Kompakt Micro 20 ESD 1 screwdriver handle with interchangeable blades 20-piece - 05073671001

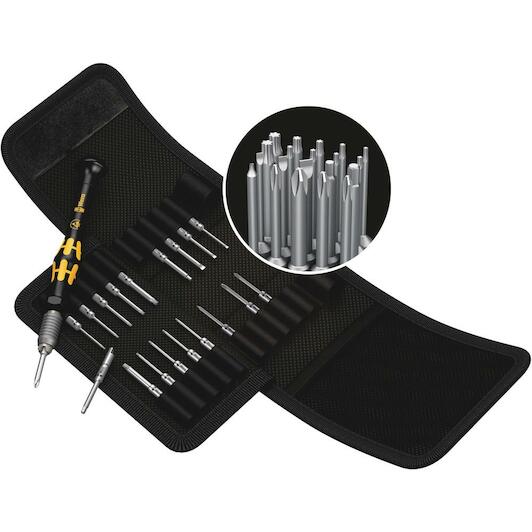

Scope of delivery

• Kraftform Kompakt Micro 20 ESD 1, 20 pieces
• 1x 1013 Kraftform Micro ESD Bitholding screwdriver: 97 mm
• 3x 851/9 C J PH bits, halfmoon: PH 00 x 44x1.8 mm, PH 0 x 44x1.8 mm, PH 1 x 44x3 mm
• 6x 867/9 C TORX® bits, halfmoon: TX 1x44 mm, TX 2x44 mm, TX 3x44 mm, TX 4x44 mm, TX 5x44 mm, TX 6x44 mm
• 4x 867/9 C IP TORX PLUS® bits: 1 IPx44 mm, 2 IPx44 mm, 3 IPx44 mm, 4 IPx44 mm
• 2x 840/9 C bits Hex-Plus: 1.5x44 mm, 2x44 mm
• 3x 800/9 C bits: 0.23x1.5x44 mm, 0.40x2x44 mm, 0.50x3x44 mm
• 1x 867/9 IPR TORX PLUS® bits: 1 IPR x 44 x 1.8 mm

Product description

Kraftform Kompakt Micro set for precision mechanical work. Suitable for the take-up of bits with 4 mm halfmoon drive (Wera series 9) and bits with 4 mm HIOS drive (Wera series 21). Electrical surface resistance of<= 10⁹ Ohm for secure protection against electrostatic charge. Manufactured in accordance with DIN EN 61340-5-1. Compact handle/interchangeable blade system for fast blade change. Kaftform Micro handle with twist cap and free-turning zone for rapid twisting, making any time-consuming repositioning of the fingers unnecessary. Power zone with integrated soft zones for the transfer of higher tightening and loosening torque. Precision zone directly above the blade for the right angle for adjustment work. Bits for manual as well as power tool operations. Rapid fixing of the bit: just push the bit into the insert for automatic locking and a secure fit. To change the bit, simply push the sleeve forward and remove. Free-turning sleeve for simple guidance of the tool during the screwdriving process.

• Bit holder suitable for the take-up of bits with 4 mm halfmoon or HIOS drive
• Handle out of material with a surface resistance of<= 10⁹ Ohm
• Handle/Interchangeable blade system for rapid exchange of the blade
• Kraftform Micro handle with rotating cap for rapid spinning
• Bits for manual as well as power tool operations

Features and benefits

• Kraftform Micro ESD bit holder
• The requirements for ESD-safe screwdrivers are specified in the European standard DIN EN 61340-5-1. This standard also includes a handle that has to be out of a defined conductive material. The Wera products in the ESD series satisfy these standards and the even more stringent requirements demanded by some technology companies.
• The electric surface resistance of the Wera ESD material is<= 10⁹ ohm. This securely protects components against electrostatic energy and associated damage.
• Features a combination bit holder for both bits with Halfmoon and bits with HIOS drive.
• Multi-component screwdriver handle for ergonomic working.
• The precision zone directly above the blade gives the user a better feel for the right rotation angle during fine adjustment work.
• The power zone has integrated soft zones near the blade tip to ensure high torque transfer for loosening or tightening screws without losing contact with the screw.
• The fast-turning zone just below the rotating cap allow rapid twisting. This makes time-consuming grip adjustments as with other conventional precision screwdrivers unnecessary.
