Scope of delivery
- Kraftform Kompakt 60 RA, 17 pieces
- 1x 816 RA Ratchet screwdriver: 1/4" x 142 mm
- 3x 851/4 Z bits: PH 1x89 mm, PH 2x89 mm, PH 3x89 mm
- 3x 855/4 Z bits: PZ 1x89 mm, PZ 2x89 mm, PZ 3x89 mm
- 5x 867/4 Z TORX® BO bits with bore hole: TX 10x89 mm, TX 15x89 mm, TX 20x89 mm, TX 25x89 mm, TX 30x89 mm
- 1x 800/4 Z bits: 1 x 5.5 x 89 mm
- 4x 840/4 Z bits: 3x89 mm, 4x89 mm, 5x89 mm, 6x89 mm
Product description

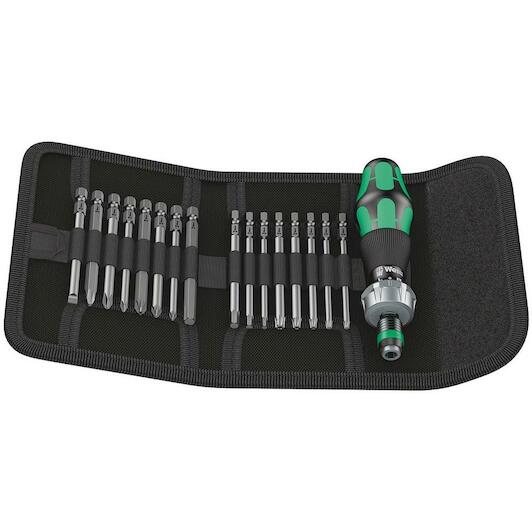

17-piece set with bits in a length of 89 mm in a practical pouch. 1 holder 816 RA Kraftform with ratchet functionality: fine-toothing for a small return angle, switchover ring (right, fixed, left), maximum torque of up to 50 Newton metres. 1/4" hexagon socket head take-up and Rapidaptor technology for low-fatigue working and rapid bit change; magnetic.
- Kraftform Kompakt 60 RA with ratchet functionality for high working speeds

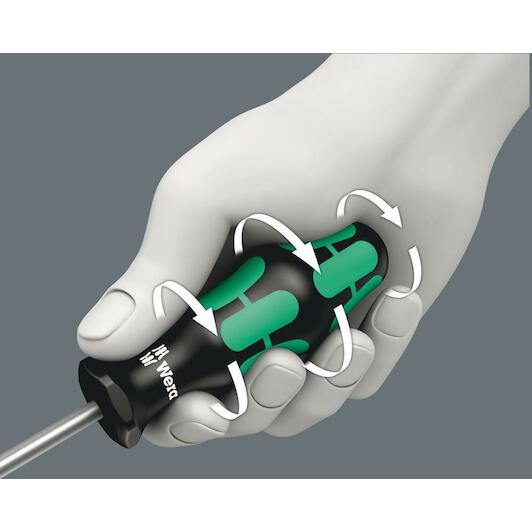

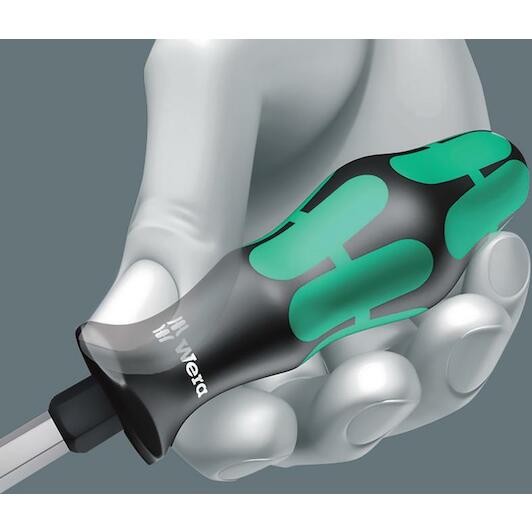

- Kraftform with anti-roll feature, multi-component with Rapidaptor technology
- Ratchet functionality

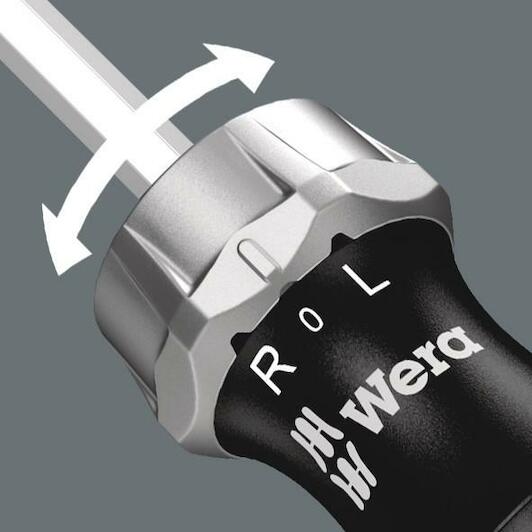

- Fine-pitched teeth for small return angle; switchover ring (right, fixed, left)
- Maximum torque of up to 50 Newton metres
Pouch with 89 mm bits17-piece set1 hand-held bit holder 816 RA Kraftform with ratchet function, fine-tooth design for minimal return angle, switchover ring (right, locked, left), maximum torque of up to 50 Newton metres, 1/4" hexagon chuck with Rapidaptor technology i.e. rapid-in, rapid-out, rapid-spin, chuck-all and single-hand function for rapid bit change, magnetic and 16 bits of 89 mm in length suitable for holders as per DIN ISO 1173-F 6.3, or for direct insertion in a power tool
Features and benefits
- Ratchet screwdriver, fine-tooth design for minimal return angle, switchover ring (right, locked, left), maximum torque of up to 50 Newton metres, 1/4" hexagon chuck with Rapidaptor technology i.e. rapid-in, rapid-out, rapid-spin, chuck-all and single-hand function for rapid bit change, magnetic, suitable for hexagon socket insert bits as per DIN ISO 1173-C 6.3 and E 6.3 and Wera series 1 and 4
- The handle/interchangeable blade system allows rapid exchange of the blades required for a wide range of applications.
- Fine action 44 tooth system for precision work. Great time savings when screwdriving.
- Additionally, the lockable neutral position permits exact adjustment work without having to change the screwdriving direction every time. Lockable neutral position for fine adjustment work.
- Ergonomic design of the reverse direction switch.
- The Rapidaptor quick-release chucks hold 1/4" DIN ISO 1173-C 6,3 and E 6,3 as well as Wera series 1 and 4 bits.

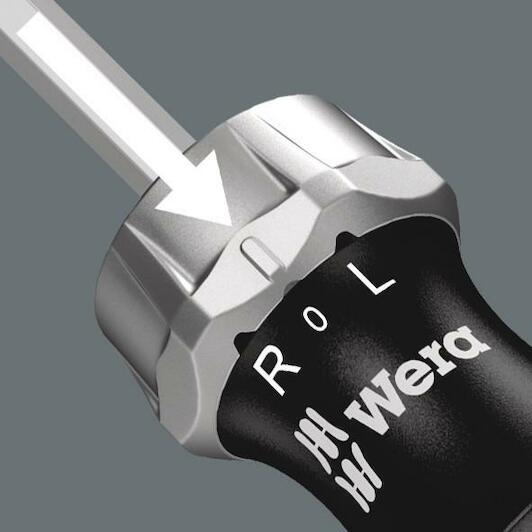

- The bit can be pushed into the adaptor without moving the sleeve. The lock is activated automatically as soon as the bit is applied to the screw. Bits are held securely and wobble-free.
- Simply push the sleeve forward to change the bit. The spring mechanism lifts the bit off the magnet and unlocks the tool. The bit can be easily removed. The rapid-out function makes it easy to remove even the smallest bits without extra tools.
