Scope of delivery
- Kraftform Kompakt 27 RA 2 SB, 6 pieces
- 2x 851/1 Z bits: PH 1x25 mm, PH 2x25 mm
- 2x 800/1 Z bits: 1x5.5x25 mm, 1.2x6.5x25 mm
- 2x 868/1 Z Square-Plus bits: # 1x25 mm, # 2x25 mm
Product description
Wera compact tool with multi-component Kraftform handle for high working speeds and particularly ergonomic screwdriving. Integrated bit magazine in the handle. Includes ratchet: fine-pitched for small return angle, switchover ring (right, fixed, left), maximum torque of up to 50 Nm; hexagonal blade with 1/4" hexagon socket take-up, stainless sleeve, strong permanent magnet.
- Kraftform Kompakt with ratchet functionality for high working speeds
- Kraftform with anti-roll feature, multi-component, integrated magazine

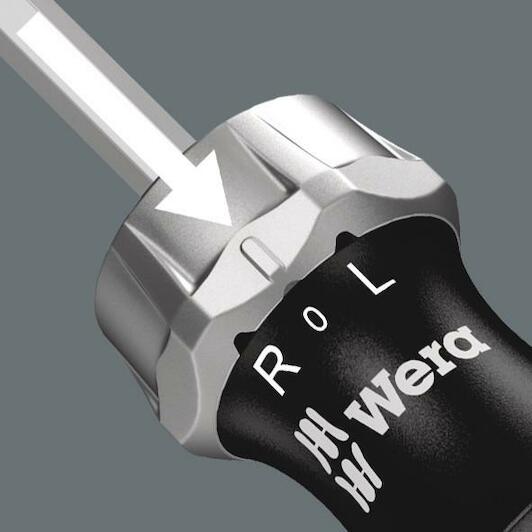

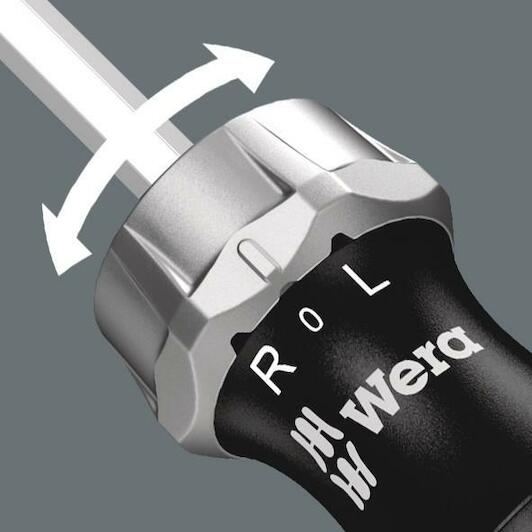

- Fine-pitched teeth for small return angle; switchover ring (right, fixed, left)
- Maximum torque of up to 50 Newton metres
- Hexagon blade with 1/4" hex socket take-up, stainless sleeve, strong permanent magnet
Application
- Suitable for hexagon socket insert bits as per DIN ISO 1173-C 6.3 and Wera series 1
Design
- Ratchet, fine tooth system for minimal return angle, switchover ring (clockwise, locked, anticlockwise), maximum torque of up to 50 Newton metres, hexagon blade with 1/4" hexagon chuck, stainless steel sleeve, strong permanent magnet
Handle
- Kraftform with non-roll feature, multi-component, integrated magazine for 6 bits (25 mm)
Features and benefits
- The basic idea for the prototype of the Kraftform handle - that the hand should dictate the design - has, right through to today, proved to be correct. In cooperation with the internationally recognised Fraunhofer IAO Institute, Wera developed a screwdriver handle designed to match the shape of the human hand as long ago as the 1960s. After a long development phase, the Wera Kraftform handle was launched to the market in 1968. It has been optimised through the years with new technologies, but has kept its proven shape. After all, the human hand has not changed either.
- The outstanding design of the Kraftform handle that fits perfectly into the hand prevents hand injuries such as blisters and calluses.
- Fine action 44 tooth system for precision work. Great time savings when screwdriving.
- Ergonomic design of the reverse direction switch.
- With stainless steel sleeve and strong permanent magnet.
- Additionally, the lockable neutral position permits exact adjustment work without having to change the screwdriving direction every time. Lockable neutral position for fine adjustment work.
