WERA

WERA KK 60 i Kraftform Kompakt VDE change blade with reduced blade diameter 0.5 x 3 x 154 mm - 05003401001

This product has been discontinued.

Successor to this product

wera-vde-60i-05003401001
WERA 05006501001 Kraftform Kompakt VDE insert for slotted...
View product

Scope of delivery

  • 1x Kraftform Kompakt VDE 60 i, 0.5 x 3 x 154 mm

Product description

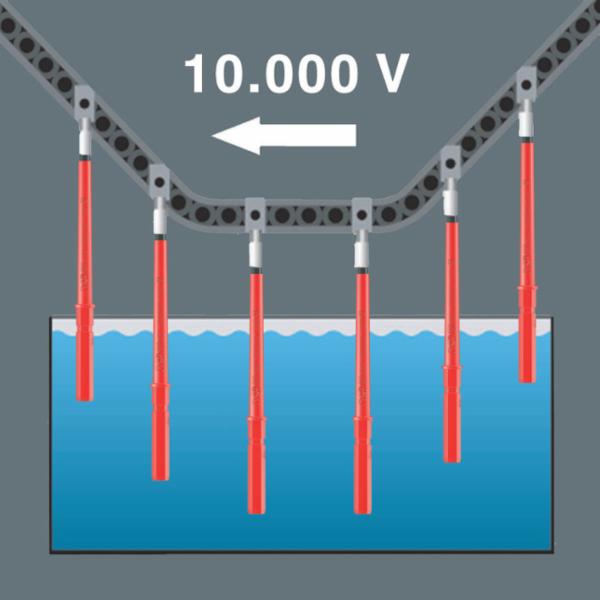

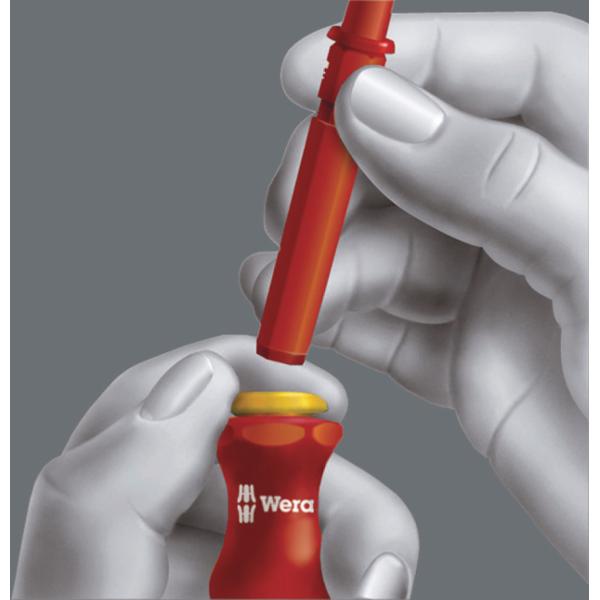

VDE blade for Kraftform Kompakt handle/change blade system for lightning-fast blade changes without additional tools. Individually tested tool in accordance with IEC 60900. Individually tested at 10,000 V for safe working at the permissible voltage of 1,000 V.

  • Kraftform Kompakt VDE insert for slotted screws
  • Insulated, individually tested in accordance with IEC 60900
  • 9 mm hexagonal drive, bevelled for easy insertion
  • Conical blade
  • The Wera Black Point tip offers a precise fit and optimum corrosion protection

Application

  • Slotted screws

Blade

  • Insulated, individually tested in accordance with IEC 60900

Fit

  • 9 mm hexagon with slanted locking slot

Design

  • Conical blade, browned, Black Point Point
Key features according to our expert
  • Length: 154 mm
  • Blade thickness: 0,5 mm
  • Type of drive profile (bit): Slotted
  • Connection size (bit): 9 mm
  • Connection profile (bit): Hexagonal
  • VDE approved: Yes
  • Bit tip: Slotted 3 mm
  • Drive profile size (bit): 3 mm
  • Product Range: Wera Kraftform Kompakt
Specifications / All features
  • Brand: WERA
  • EAN: 4013288104069
  • Supplier number: WERA 05003401001
Length
154 mm
Blade thickness
0,5 mm
Type of drive profile (bit)
Slotted
Connection size (bit)
9 mm
Connection profile (bit)
Hexagonal
Vde approved
Yes
Bit tip
Slotted 3 mm
Drive profile size (bit)
3 mm
Slot width (in inches)
1/8 inch
Ring length
154 mm
Blade length (in inches)
6 1/16 inch
Slot width
3.0 mm
Product range
Wera Kraftform Kompakt
