Scope of delivery
- Click-Torque XP 4 pre-set adjustable torque wrench for insert tools, 20-250 Nm, 20 Nm, 14x18 x 20.0 Nm x 20-250 Nm
Product description

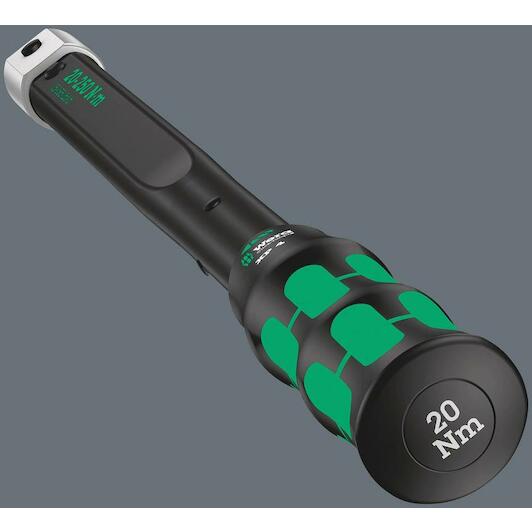

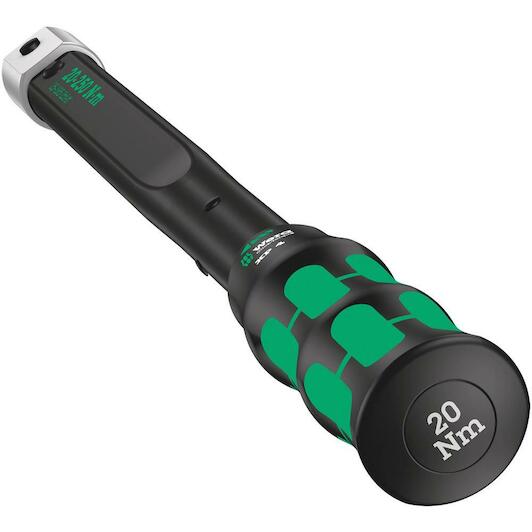

Torque wrench with pre-set torque value for all applications where the same torque and repeat accuracy is required. The torque value can be changed within the metered range. The robust release mechanism guarantees a clearly audible and tactile trigger signal when the set torque value is reached. Square socket for interchangeable plug-in tools for clockwise and anti-clockwise torque-control. A presetting which deviates from this value to a desired torque value within the specified metered range is possible on request.
- Pre-set click torque wrench in unmistakable Wera design

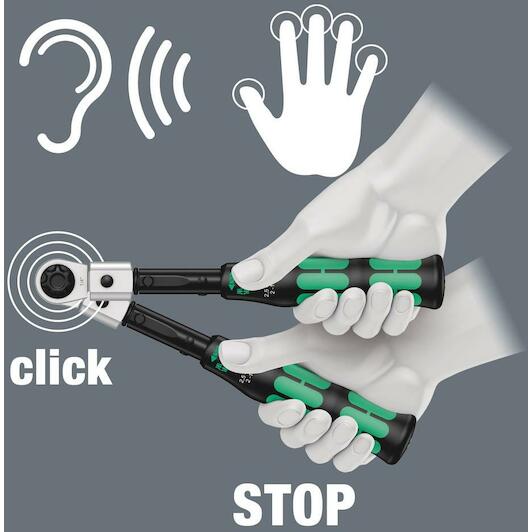

- Audible and tactile release mechanism when the set torque value is reached
- Pre-set torque values can be changed within the metered range in the test laboratory
- Measuring range: 20-250 Nm; precise to ± 2% as per DIN EN ISO 6789-1:2017-07
- With square socket (14 x18) for interchangeable plug-in tools; clockwise and anti-clockwise torque-control
Application
- For right and left-handed use
Pre-set torque
Precision
- ± 2% of set value, as per DIN EN ISO 6789-1: 2017-07
Design

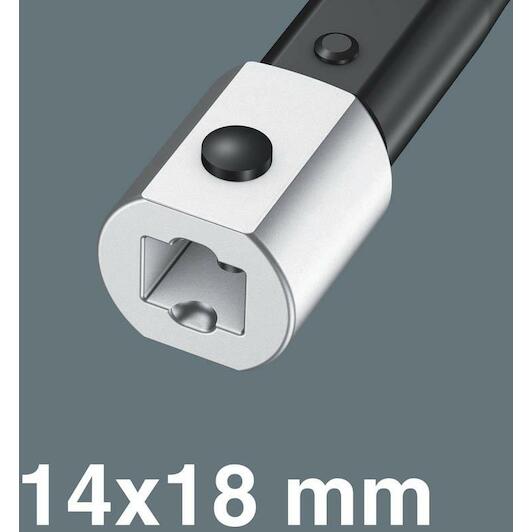

- For 14x18 mm interchangeable insert tools; audible and tactile release mechanism when the set torque value is reached
Handle
- Ergonomic 2-component handle
Features and benefits
- We wanted working with torque wrenches to be simple and accurate which is why we developed the Click-Torque wrenches. With the ability to set and save the default values and with the unmistakable, robust Wera design, these torque wrenches are the ideal tools for all bolting applications that require torque-controlled tightening (clockwise torque wrenches) and tightening and loosening (torque wrenches for insert tools).
- The Click-Torque XP torque wrenches are provided with pre-set torque values. These tools are ideal for all applications where the same torque and repeat accuracy is required.
- For 14x18 mm interchangeable insert tools
- Precise to ± 2% as per DIN EN ISO 6789-1:2017-07.
- On reaching the desired torque value, an audible and tactile mechanism is triggered.
- The Click-Torque wrenches for insert tools are suitable forclockwise and counterclockwise uses.
- The Click-Torque XP torque wrenches with a pre-set torque value can be set to any value within the specified metered range in the test laboratory.
