Scope of delivery
- Click-Torque X 6 torque wrench for insert tools, 80-400 Nm, 14x18 x 80-400 Nm
Product description
Click-Torque wrench in the unmistakable, robust Wera design with high accuracy as per DIN EN ISO 6789-1: 2017-07. Easy setting and saving of the default value. The audible and tactile clicks on reaching the scale values also facilitate the safe setting of the desired torque value. The robust release mechanism guarantees a clearly audible and tactile release signal when the set torque is reached. For right and left-hand use and with square insert 14x18mm for insert tools.

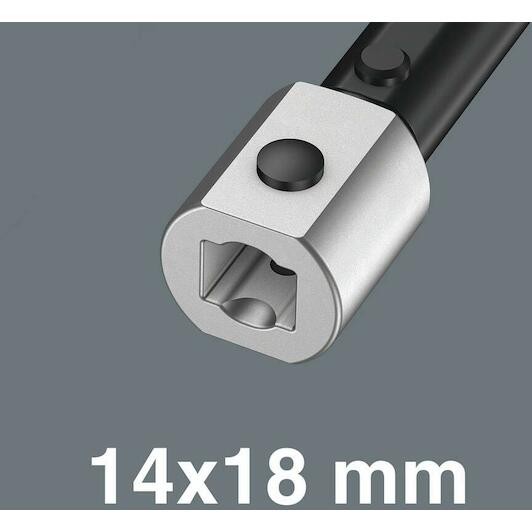

- For 14x18 mm interchangeable insert tools
- Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values
- Audible and tactile release mechanism when the set torque value is reached
- Measuring range:80-400 Nm; precise to ± 3% as per DIN EN ISO 6789-1:2017-07
- Very robust design with ergonomic 2-component handle suitable for right and left-handed use
Application
- For right and left-handed use
Precision
- ± 3% of set value, as per DIN EN ISO 6789-1: 2017-07; application range with up to max. 400 Nm above standard DIN EN ISO 6789-1: 2017-07 (maximum value: 340 Nm);
Design
- For 14x18 mm interchangeable insert tools; easy setting and saving of the desired torque value, with audible and tactile locking when the scale values are reached (fine scale only in Newton meters), audible and tactile release mechanism when the set torque value is reached
Handle
- Ergonomic 2-component handle
Features and benefits
- We wanted working with torque wrenches to be simple and accurate which is why we developed the Click-Torque wrenches. With the ability to set and save the default values and with the unmistakable, robust Wera design, these torque wrenches are the ideal tools for all bolting applications that require torque-controlled tightening (clockwise torque wrenches) and tightening and loosening (torque wrenches for insert tools).
- For torque wrenches from the Click-Torque X series with 14x18 mm mounting.
- Precision of ±3 % as per DIN EN ISO 6789-1:2017-07.

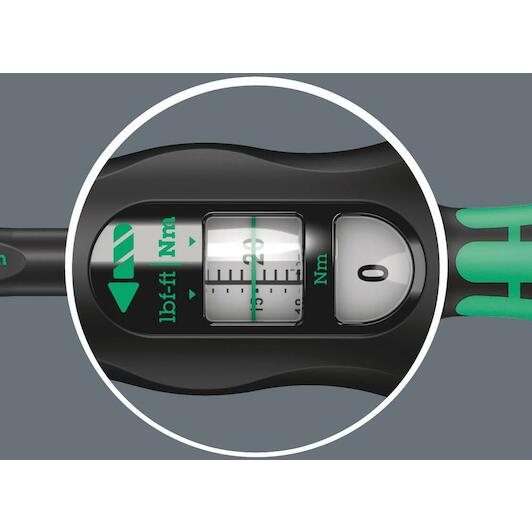

- Easy setting and saving of the desired torque value; easy to read on main and fine scales.
- With audible and tactile locking when the scale values are reached.

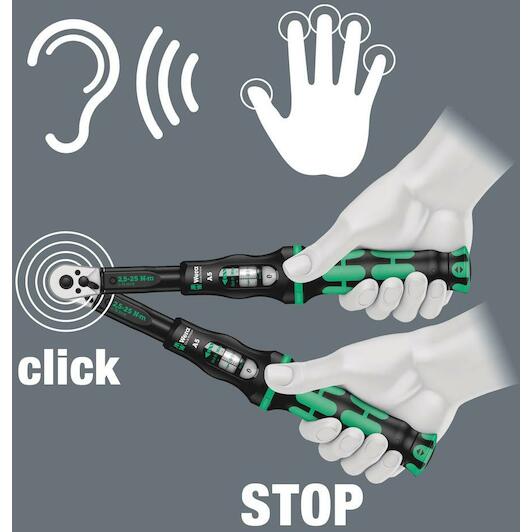

- On reaching the desired torque value, an audible and tactile mechanism is triggered.
- The Click-Torque wrenches for insert tools are suitable forclockwise and counterclockwise uses.
