WERA

WERA 867/9 C IP TORX PLUS bit, 4 IP x 44 mm - 05326310001

Recommended Retail Price €61.69
30.80 tax incl.
€25.45 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Scope of delivery

  • 867/9 C IP TORX PLUS® bits, 4 IP x 44 mm

Product description

Hard bits for recessed TORX PLUS® screws. Drive: 4 mm halfmoon for direct power tool connection.

  • For TORX PLUS® screws
  • Hard design
  • 4 mm halfmoon drive (Wera connecting series 9)
  • Direct power tool insertion

Application

  • TORX PLUS® screws

Drive

  • Halfmoon, 4 mm

Design

  • Precision hardened for sensitive applications

Features and benefits

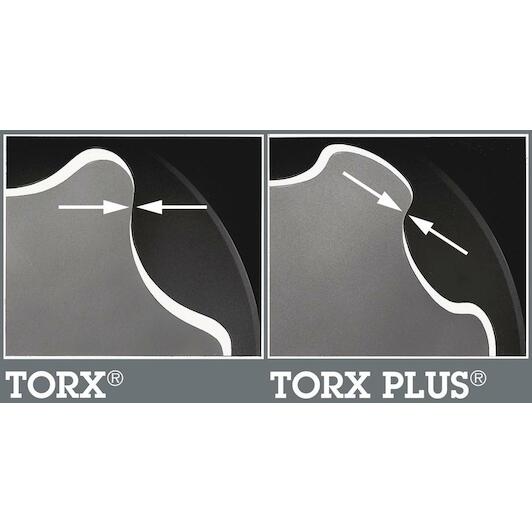

  • Compared with the "normal" TORX® profile, the elliptical instead of circular profile enlarges the 6 flanks that transfer torque between the tool and the screw. This means that the force applied when screwdriving is spread across a larger surface area. Higher torque is transferred and, in addition, the service life of the screw and tool are lengthened. The so-called centre-lock screws on cutting tools represent a typical use of this type of screw profile. The thermal influences on such holders for carbide insert tips often "bake" the retaining screws so firmly that it is important to have a profile that considerably enhances the loosening torque capability of the screws. For this reason a torque-stable screw profile is necessary to avoid any possible damage to the screw and to exclude the possibility of an otherwise costly machine downtime.
  • Halfmoon, 4mm, Wera Series 9. Drive: For direct machine drive. Suitable for: Delvo, Densei etc.
Key features according to our expert
  • Length: 44 mm
  • Blade thickness: Not applicable
  • Type of drive profile (bit): Torx Plus
  • Connection size (bit): 4 mm
  • Connection profile (bit): Halfmoon
  • VDE approved: No
  • Bit tip: IP4
  • Drive profile size (bit): 4
Specifications / All features
  • Brand: WERA
  • EAN: 4013288113399
  • Supplier number: WERA 05326310001
Length
44 mm
Blade thickness
Not applicable
Type of drive profile (bit)
Torx Plus
Connection size (bit)
4 mm
Connection profile (bit)
Halfmoon
Vde approved
No
Bit tip
IP4
Drive profile size (bit)
4
Tip size
4 IP
Blade diameter
2.0 mm
Blade length overtorqued
20 mm
Blade length overtorqued (inches)
25/32" inch
Blade length (inches)
1 47/64" inch
Blade length
44 mm
