Scope of delivery

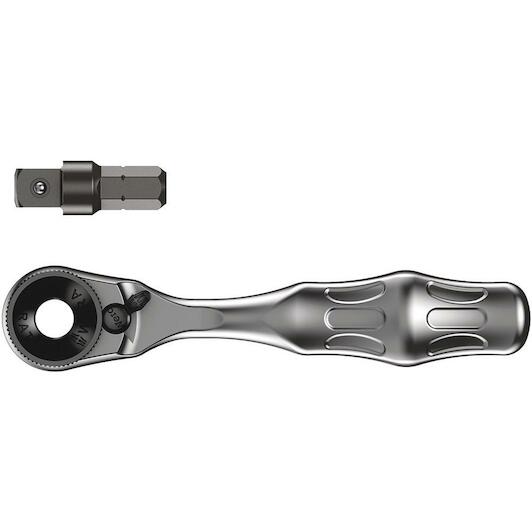

- 8001 A Zyklop Mini 1 Bit Ratchet 1/4" SB with 1/4" drive, 2 pieces
- 1x 8001 A Bit Ratchet 1/4": 1/4" x 87 mm
- 1x 870/1 Adaptor: 1/4" x 25 mm
Product description
The Wera Mini ratchet. Simple operation, even with just one hand, in confined working spaces. Drop-forged, full-steel design and fine-pitched mechanism with 60 teeth that allows a small return angle of 6° for precise working. The thumbwheel allows rapid fastening in confined situations when there is no space for ratcheting. Easy left/right switchover. Ergonomically designed ratchet head and lever. Suitable for 1/4" bit and socket take-up.
- Suitable for direct take-up of bits with 1/4" hex head drive
- Drop-forged, full-steel design
- Torque of over 65 Nm
- Fine-pitched ratchet mechanism and small return angle of 6
- Ideal for working in confined spaces
Application
- Suitable for 1/4" hex bits as per DIN ISO 1173-C 6.3 and E 6.3 and Wera series 1 and 4, Wera adaptor 870/1 for 1/4" sockets
Design
- Drop-forged full steel design, fine-tooth ratchet mechanism, small return angle of 6°, forward and reverse drive switch
Handle
- Kraftform handle with proven Kraftform geometry provides perfectly designed finger contact zones, ergonomic ratchet head and handle
Features and benefits
- Zyklop Mini
- For all difficult-to-access applications.
- The fine tooth mechanism, with its 60 teeth, allows a small return angle of only 6° - ideal for precision work.
- Thumbwheel enables rapid screwdriving, even when there isn't sufficient room for ratcheting use.
- Simple switching between left/right operations.
- Its slim design makes it ideal for all particularly confined working situations.
- The Zyklop Mini 1 can withstand a torque up to 65 Nm. That is far more power than can normally be transferred to such a small tool.
- Bits and sockets. Bits can be connected directly. However, a holder can be connected first and then the bit can be attached to this. This then serves as an extension with a free-turning sleeve. An adaptor e.g. Wera 870/1 is needed for sockets - 1/4" hexagonal on a square drive (included in the Bit-Check and with the individual Zyklop Mini 1 in the set).
